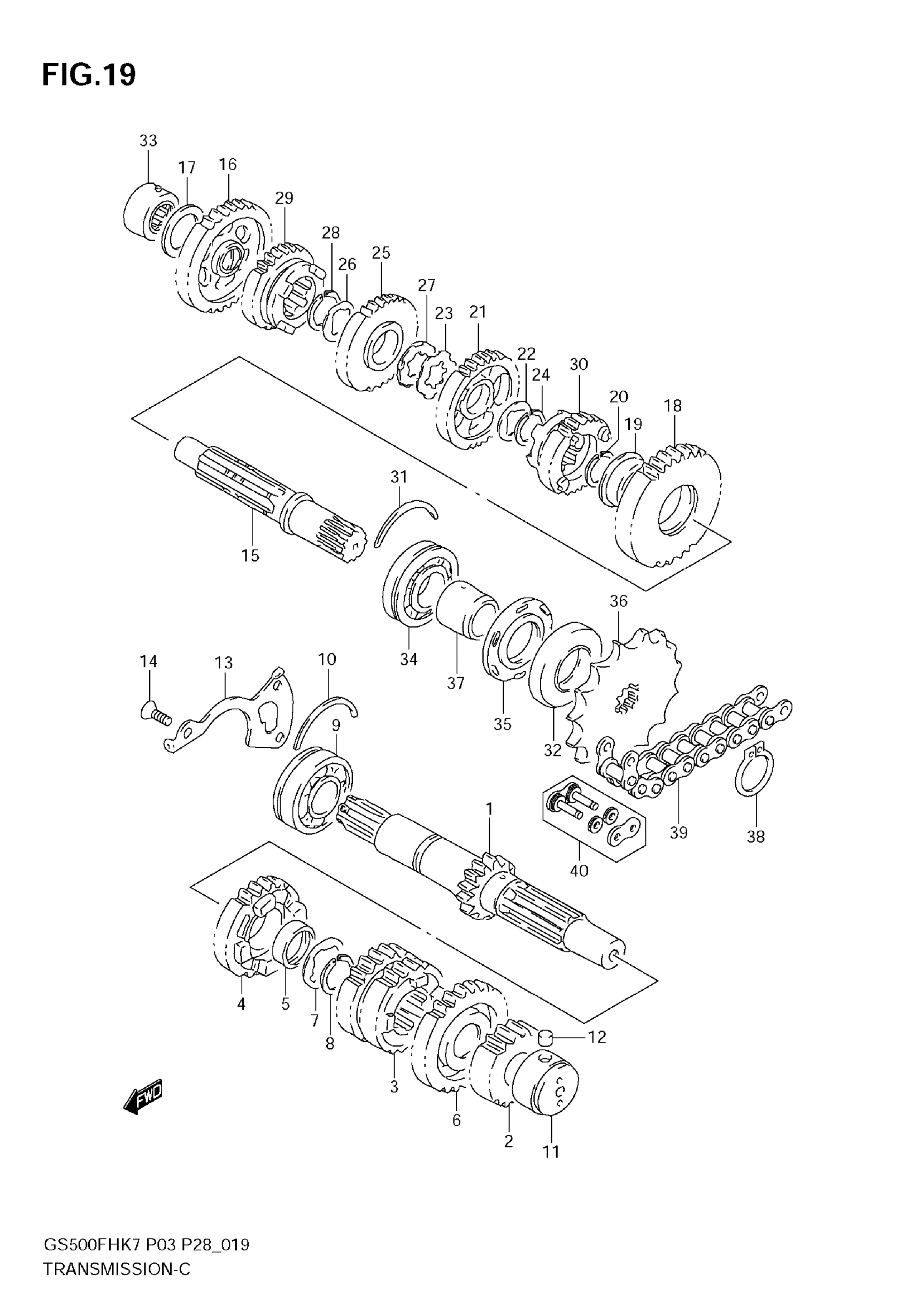

Suzuki GS500F (2009) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT (NT:13)

24121-01D01

Unavailable

2

GEAR, 2ND DRIVE (NT:18)

24221-44001

Unavailable

3

GEAR,3RD & 4TH DRIVE (NT:21/2 This part replaces 24231-20F03.

24231-20F10

Unavailable

4

GEAR,5TH DRIVE (NT:26)

24251-20F02

Unavailable

5

BUSH

24252-19F00

$17.12

6

GEAR, 6TH DRIVE (NT:27)

24260-01D01

Unavailable

7

WASHER (25X34X1.0)

09181-25167

$3.12

8

CIRCLIP

09380-25010

$2.91

9

BEARING, LH This part replaces 09262-25051.

09262-25105

$68.10

10

C RING

09390-62012

$7.31

11

BEARING, LH (20X34X20)

09263-20025

Unavailable

12

PIN

04221-07129

$1.86

13

HOLDER, BEARING

24741-44102

Unavailable

14

SCREW (6X16)

09126-06014

$2.06

15

DRIVESHAFT

24131-01D00

Unavailable

16

GEAR, 1ST DRIVEN (NT:32)

24310-44001

Unavailable

17

WASHER (20X34X1)

09181-20251

$2.79

18

GEAR, 2ND DRIVEN (NT:32)

24321-20F01

$125.38

19

BUSH

24322-19F00

$23.78

20

CIRCLIP

09380-25010

$2.91

21

GEAR, 3RD DRIVEN (NT:29)

24331-44003

Unavailable

22

WASHER LOCK (25.1X31X1.0)

09167-25012

$3.70

23

WASHER,LOCK (25.1X41X1.5)

09167-25013

$3.30

24

CIRCLIP

09380-25010

$2.91

25

GEAR, 4TH DRIVEN (NT:27)

24341-44003

Unavailable

26

WASHER LOCK (25.1X31X1.0)

09167-25012

$3.70

27

LOCK WASHER

09169-25001

$2.70

28

CIRCLIP

09380-25010

$2.91

29

GEAR, 5TH DRIVEN (NT:25) This part replaces 24351-44001.

24351-20F02

Unavailable

30

GEAR, 6TH DRIVEN (NT:23)

24361-44010

Unavailable

31

C RING

09390-62012

$7.31

32

OIL SEAL (32X62X7)

09283-32015

$15.74

33

BEARING, RH (20X34X17)

09263-20027

Unavailable

34

BEARING, LH (25X62X17)

09262-25105

$68.10

35

OIL SEAL

09282-32002

$11.65

36

SPROCKET, ENGINE (NT:16)

27511-01D01

$39.07

37

SPACER This part replaces 27531-01D10.

27531-01D11

$22.82

38

CIRCLIP

08331-3125A

Unavailable

39

CHAIN, DRIVE (DID520VS2X110LE | Includes Item(s) 40 This part replaces 27600C01C10J110.

27600-01C10-110

$170.18

40

JOINT SET,DRIVE | 0PT This part replaces 27620C01C10J000.

27620-01C10

$19.57
