Description

Price

1

MOTOR ASSY, STARTING | MODEL K7 This part replaces 31100-20C00.

31100-20C01

$679.68

1

MOTOR ASSY, STARTING | MODEL K8/K9; Includes Item(s) 2 - 14

31100-20C01

$679.68

2

ARMATURE

31310-27A01-H17

Unavailable

3

OIL SEAL

31153-43400

$24.20

4

SHIM SET

31170-43400

Unavailable

5

O RING

31264-44110

$11.87

6

BRUSH HOLDER ASSY

31132-27A01

$73.55

7

SPRING

31135-65010

$4.52

8

BRUSH

31130-38300

$18.43

9

BUSHING (A)

31172-38300

$6.55

10

BUSHING (B)

31171-38300

$8.93

11

O RING

31143-38300

$5.10

12

BOLT

31281-88C00

Unavailable

13

O RING

31156-38300

$4.52

14

.O-RING (D:3,ID:24.5)

09280-24003

$1.55

15

BOLT (6X25)

09103-06212

$2.47

16

NUT

08361-3506A

$1.80

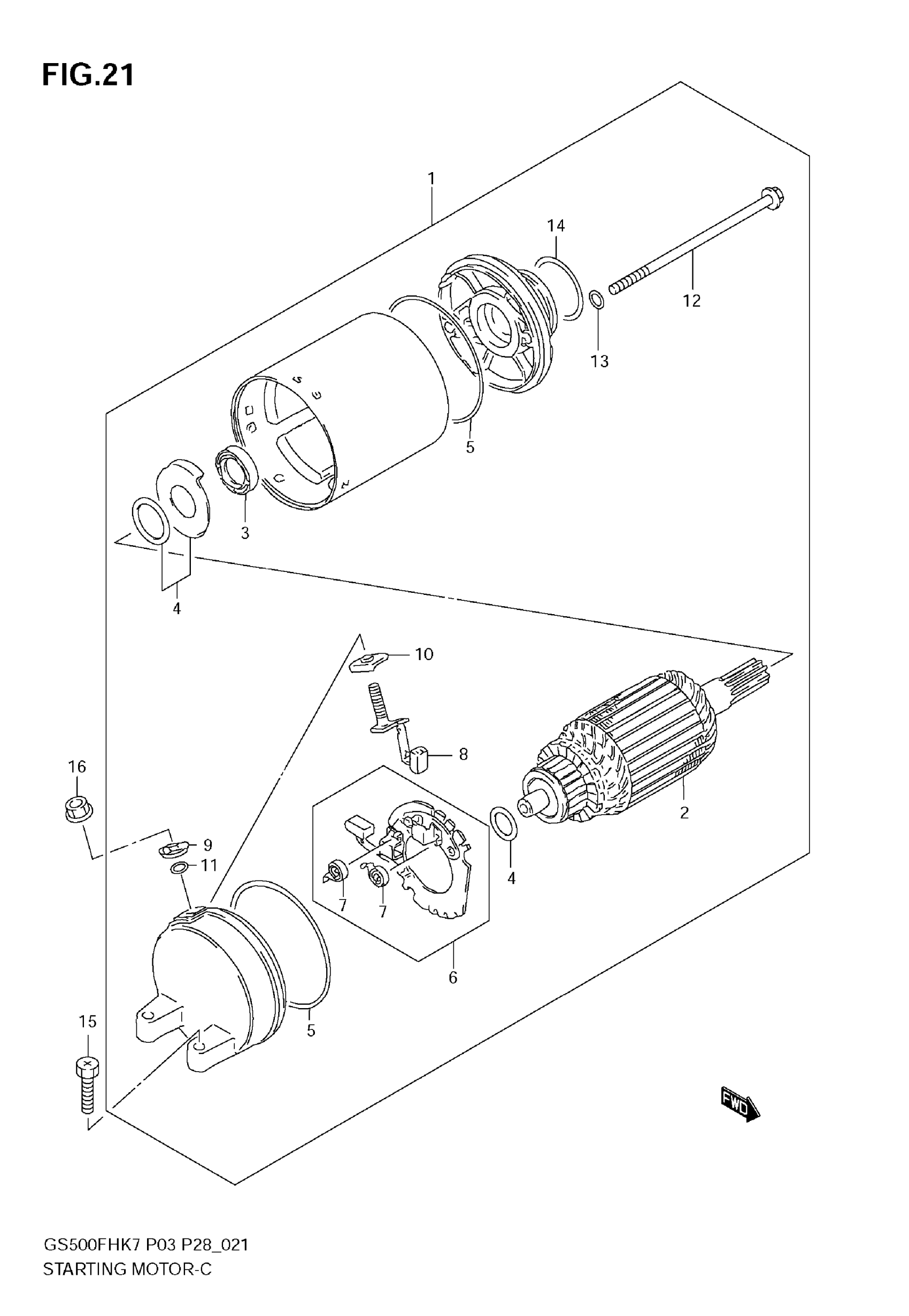

Suzuki GS500F (2009) STARTING MOTOR Diagram

MOTOR ASSY, STARTING | MODEL K7 This part replaces 31100-20C00.

MOTOR ASSY, STARTING | MODEL K8/K9; Includes Item(s) 2 - 14

ARMATURE

OIL SEAL

SHIM SET

O RING

BRUSH HOLDER ASSY

SPRING

BRUSH

BUSHING (A)

BUSHING (B)

O RING

BOLT

O RING

.O-RING (D:3,ID:24.5)

BOLT (6X25)

NUT
