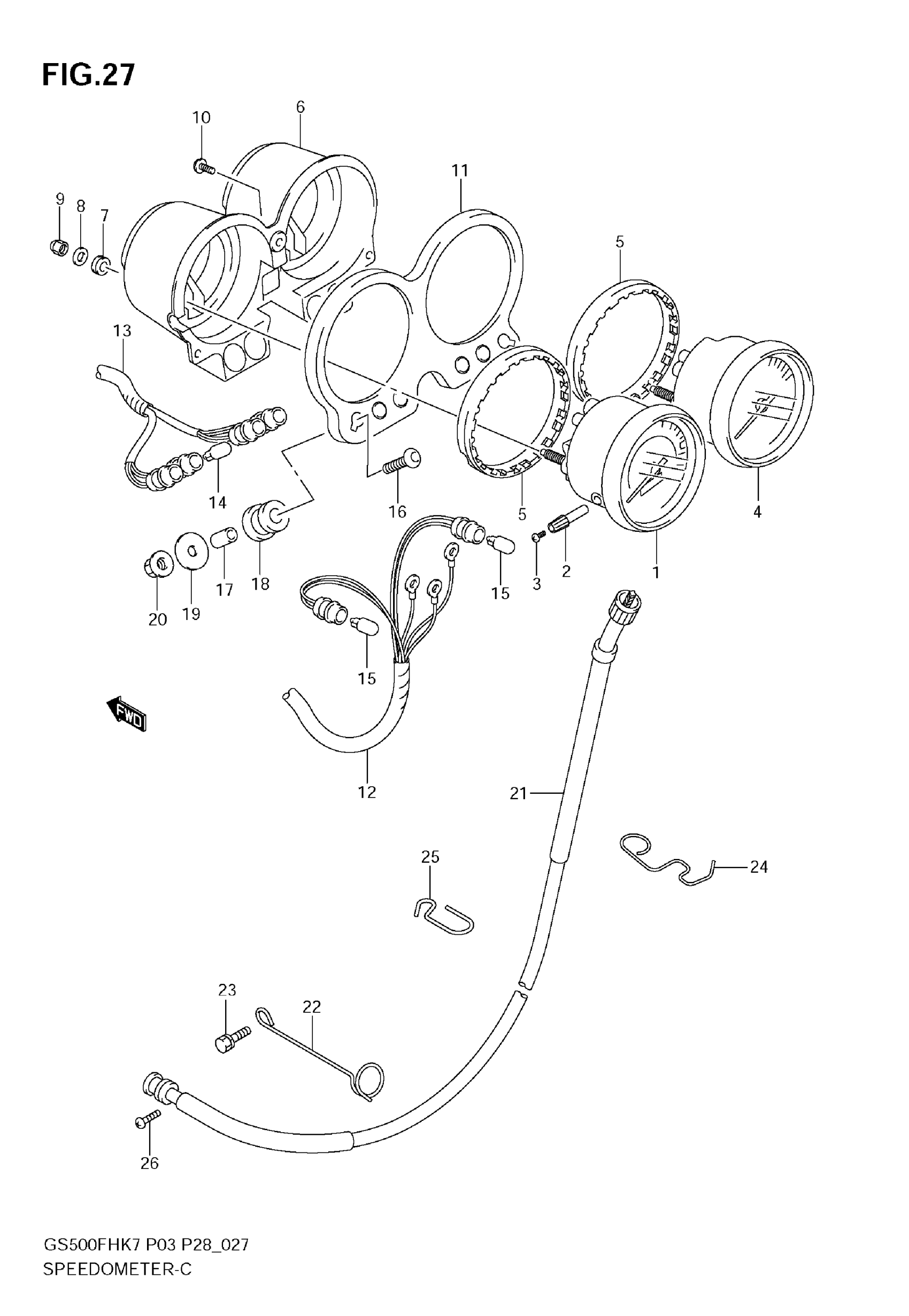

Suzuki GS500F (2009) SPEEDOMETER - TACHOMETER (GS500F E3, E28, E33, E95) Diagram

#

Description
Price

1

SPEEDOMETER (MILE/KILO) | E3, E33, E95

34110-01DB0

Unavailable

1

SPEEDOMETER (KILO) | E28

34110-01DA0

Unavailable

2

KNOB

34124-01DA0

$4.60

3

SCREW (2X6) This part replaces 34981-13A00.

09139-02003

$1.65

4

TACHOMETER

34210-01DC0

Unavailable

5

DAMPER This part replaces 34288-01DA0.

34288-01D20

$7.25

6

COVER

34193-01DC0

Unavailable

7

CUSHION

34189-01DA0

$19.32

8

WASHER This part replaces 34181-45C10.

09160-05013

$1.49

9

NUT

08313-1105A

Unavailable

10

SCREW This part replaces 34149-01D20.

02112-3408A

$2.38

11

BRACKET, METER

34950-01DA0

Unavailable

12

SOCKET & CORD, SPEEDO/TACH

34170-01DD0

Unavailable

13

SOCKET & CORD, PILOTS

34170-01DC0

Unavailable

14

.BULB (12V1.7W) | FOR HIGH BEAM/OIL NEUTRAL/TURN This part replaces 09471C12218J000.

09471-12108

$3.42

15

BULB (12V, 1.7W, T10) | FOR ILLUMI

09471-12165

$3.51

16

BOLT (6X30)

09107-06003

$3.03

17

SPACER (6.5X10X17)

09180-06159

$3.35

18

CUSHION

34956-31001

$4.37

19

WASHER (6.5X28X1.6)

09160-06136

$1.84

20

NUT

D8320-1006B

Unavailable

21

CABLE ASSY,SPEE This part replaces 34910-01D20.

34910-01D21

$32.82

22

GUIDE, CABLE NO.1

34938-01D40-E0N

Unavailable

23

BOLT This part replaces D1557-0612B.

D1557-0616B

$1.49

24

GUIDE, CABLE NO.2

34938-01D30-E0N

Unavailable

25

GUIDE, CABLE NO.3

34938-01D20-E0N

Unavailable

26

SCREW

02112-0516B

$1.93
