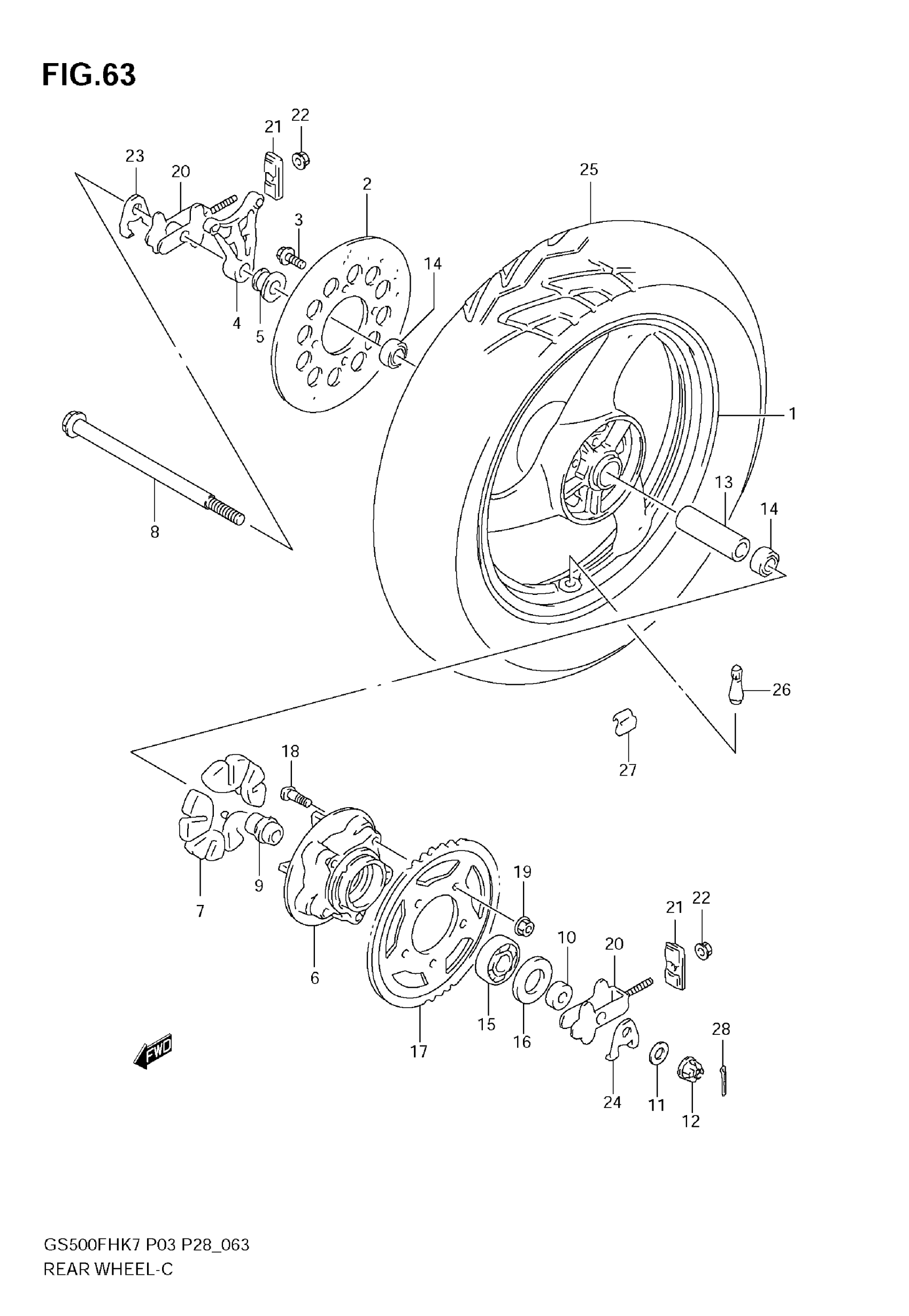

Suzuki GS500F (2009) REAR WHEEL Diagram

#

Description
Price

1

WHEEL, REAR (MT3.50X17)(BLACK)

64111-34C01-291

Unavailable

2

DISC, REAR BRAKE (BLACK)

69211-01DA0

$243.35

3

BOLT (8X30)

09106-08131

$3.55

4

BRACKET, CALIPER

69721-01DA0

Unavailable

5

SPACER, REAR AXLE,RH This part replaces 64740C19C00J000.

64740-19C00

$22.22

6

DRUM, REAR SPROCKET This part replaces 64611C01D00J000.

64611-01D00

Unavailable

7

ABSORBER,RR HUB SHOCK

64651-27A01

$9.78

8

AXLE, REAR | MODEL K7/K8

64711-01D20

Unavailable

8

REAR AXLE | MODEL K9 This part replaces 64711C01D30J000.

64711-01D30

$79.62

9

RETAINER, DRUM This part replaces 64733C01D00J000.

64733-01D00

$27.97

10

SPACER, REAR AXLE,LH This part replaces 64751C19C00J000.

64751-19C00

$15.42

11

WASHER

09160-17047

$5.00

12

NUT | MODEL K7/K8

08314-4016B

$5.37

12

NUT | MODEL K9

08319-2116A

$9.00

13

SPACER, BEARING (17.5X25X88)

09180-17067

$23.05

14

BEARING

08143-63037

$22.58

15

BEARING (25X62X17)

09262-25073

$25.92

16

SEAL,OIL (35X62X8)

09285-35001

$10.19

17

SPROCKET, REAR (NT:39) This part replaces 64511C01D04J000.

64511-01D04

$62.55

18

BOLT (10X38)

09119-10059

$3.12

19

NUT

08319-3110A

$2.73

20

ADJUSTER, CHAIN This part replaces 61410C01D00J000.

61410-01D00

$33.93

21

PLATE, GUIDE This part replaces 61421C01D00J000.

61421-01D00

$10.17

22

NUT

08319-3108A

$2.32

23

WASHER, CHAIN ADJUSTER This part replaces 64712C19C01J000.

64712-19C01

$8.05

24

WASHER, CHAIN ADJUSTER LH This part replaces 64712C01D00J000.

64712-01D00

$9.00

25

TIRE, REAR (130/70-17M/C 62H) | BATTLAX BT45R G

65110-01D10

Unavailable

26

VALVE ASSY, WHEEL RIM (TR412)

43130-07E00

Unavailable

27

BALANCER, WHEEL (NO. 1)

55411-17G00

$7.63

27

BALANCER, WHEEL (NO. 2)

55412-17G00

$7.05

27

BALANCER, WHEEL (NO. 3)

55413-17G00

Unavailable

28

PIN, COTTER | MODEL K7/K8

04111-4030A

$1.49
