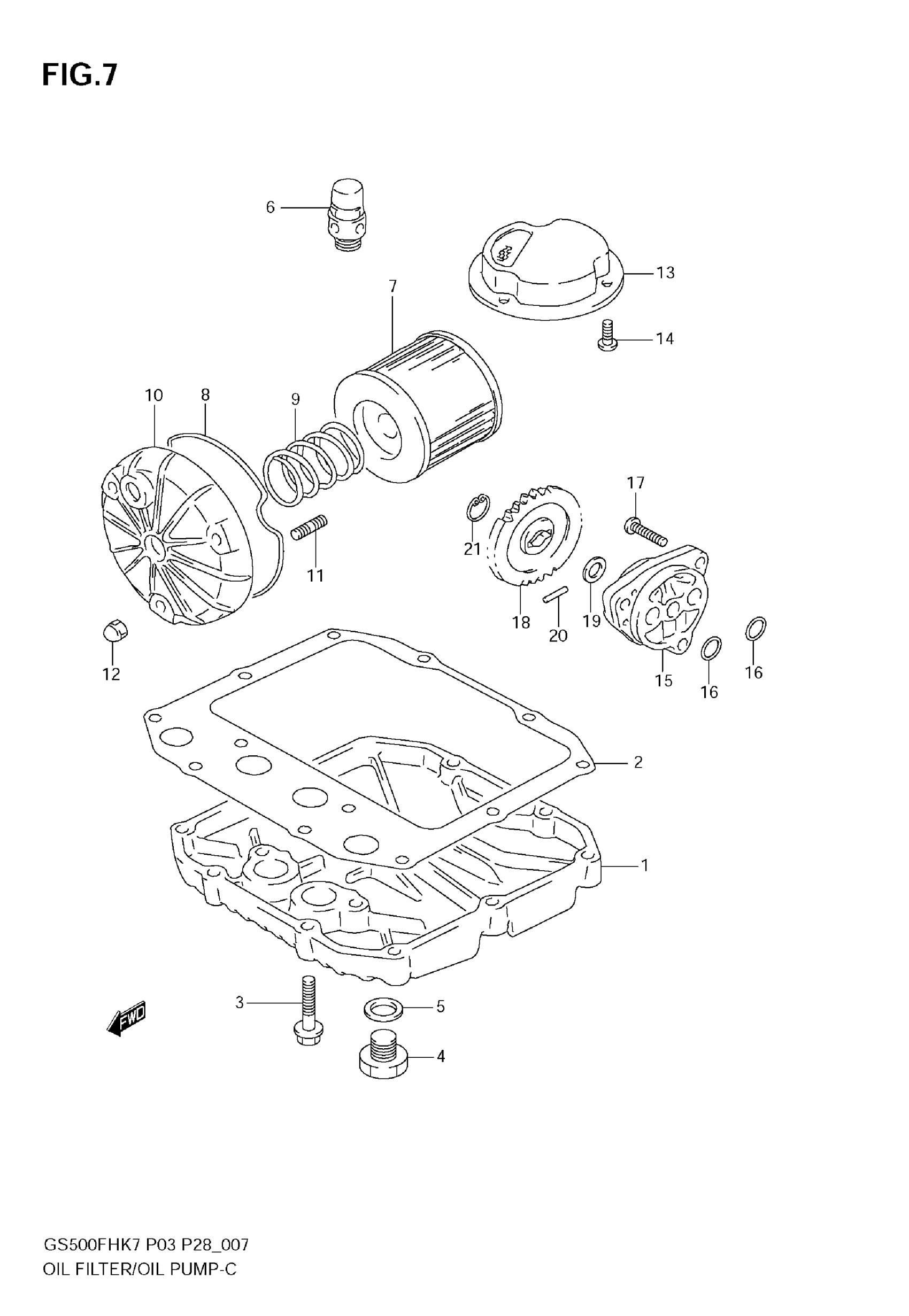

Suzuki GS500F (2009) OIL FILTER - OIL PUMP Diagram

#

Description
Price

1

PAN, OIL | GS500H

11511-44100

$102.17

1

PAN, OIL | GS500F

11511-01D00

$127.28

2

GASKET, OIL PAN | GS500H

11489-44110

$10.28

2

GASKET, OIL PAN | GS500F

11489-01D00

$10.62

3

BOLT

01550-0630A

$2.32

4

PLUG, OIL DRAIN

09247-14026

$3.76

5

GASKET

09168-14002

$2.26

6

VALVE ASSY, OIL RELIEF

16440-11D00

$59.07

7

FILTER, ENGINE OIL

16510-45040

$5.96

8

O RING

16518-45000

$5.70

9

SPRING

09440-32004

$2.92

10

CAP, ENGINE OIL FILTER

16512-45D00

$56.93

11

STUD BOLT

01421-0620A

$1.91

12

NUT

08313-2006A

$1.97

13

STRAINER, ENGINE OIL

16520-01D01

Unavailable

14

SCREW

01570-0612A

$2.63

15

PUMP ASSY, ENGINE OIL

16400-44100

$198.45

16

O RING (D:1.9, ID:13)

09280-13004

$2.17

17

SCREW

09125-06035

$2.23

18

GEAR, DRIVEN (NT:27)

16331-01D10

$68.60

19

WASHER

09181-10158

$1.97

20

PIN

09261-04009

$1.56

21

CIRCLIP

08331-31109

$1.78
