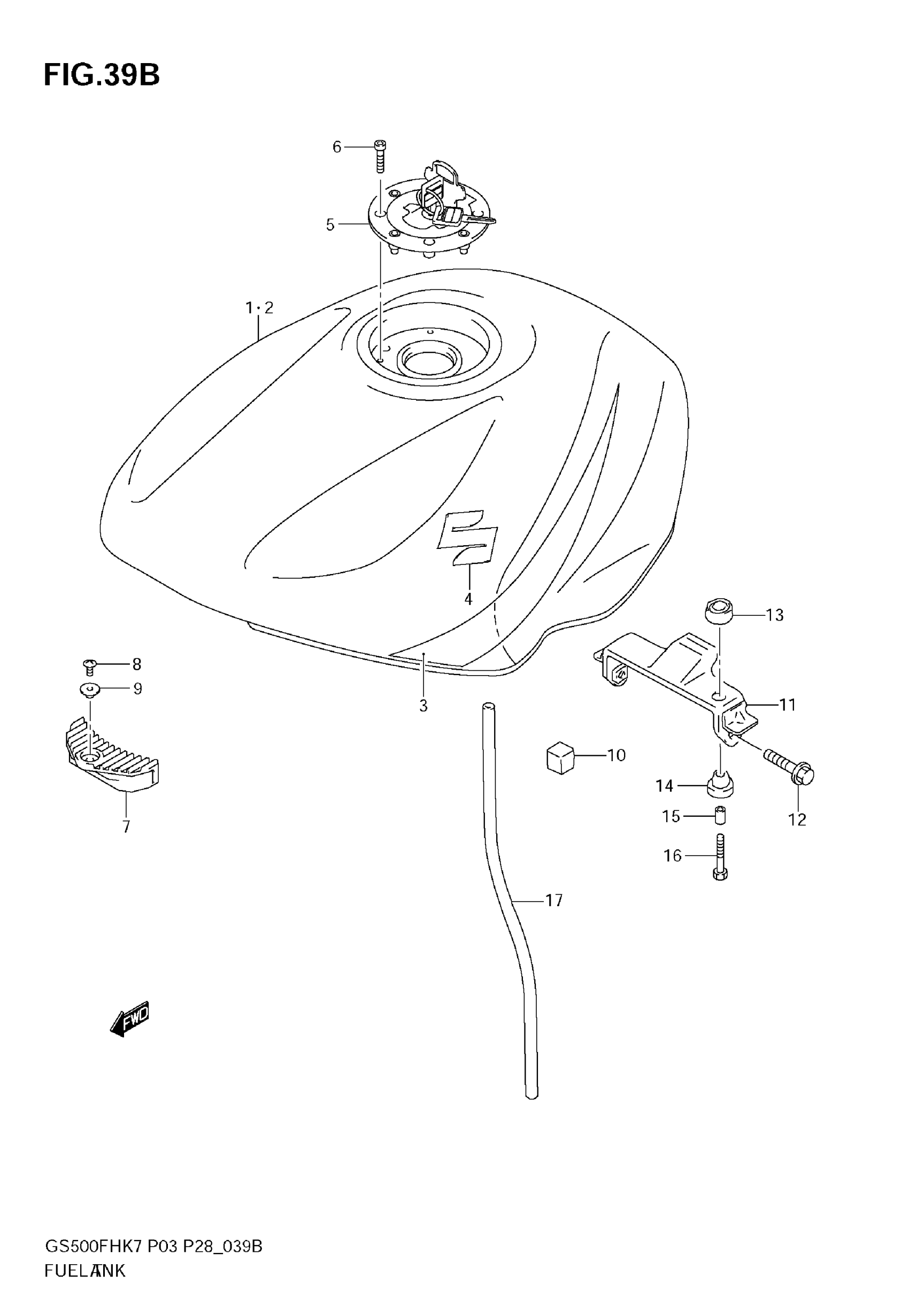

Suzuki GS500F (2009) FUEL TANK (MODEL K9) Diagram

#

Description
Price

1

TANK ASSY, FUEL (BLACK) | GS500H E28, E95 FOR YAY

49100-01DG0-YAY

Unavailable

1

TANK ASSY, FUEL (BLUE) | GS500H E28, E95 FOR GVT

49100-01DG0-YKY

Unavailable

2

TANK ASSY, FUEL (BLACK) | GS500F E3, E28, E95 FOR BPK

49100-01DE0-YAY

Unavailable

2

TANK ASSY, FUEL (BLUE) | GS500F E3, E28, E95 FOR CWH

49100-01DE0-YKY

Unavailable

2

TANK ASSY, FUEL (BLACK) | GS500F E33, FOR BPK

49100-01DF0-YAY

Unavailable

2

TANK ASSY, FUEL (BLUE) | GS500F E33, FOR CWH; Includes Item(s) 3 - 3

49100-01DF0-YKY

Unavailable

3

TAPE SET | FOR YAY

68110-01DH0-BPK

Unavailable

3

TAPE SET | FOR YKY

68110-01DH0-CWH

Unavailable

4

EMBLEM "S"

68111-18G20

$32.30

5

CAP SET,FUEL TA | E3, E28, E95 This part replaces 44201-33820.

44201-33822

$152.27

5

CAP SET,FUEL TA | E33 This part replaces 44200-33890.

44200-33891

$252.70

6

BOLT

09106-05017

$2.83

7

CUSHION, FRONT

44511-27E00

$12.48

8

SCREW

D2116-0510B

Unavailable

9

WASHER

09169-05012

$2.38

10

CUSHION,FUEL TA This part replaces 44541-01D00.

44541-01D01

$5.19

11

BRACKET, REAR This part replaces 44550-0BE00.

44550-01D01

$48.38

12

BOLT, BRACKET

01551-0840B

$3.29

13

CUSHION, REAR UPPER

09320-14017

$2.35

14

CUSHION, REAR LOWER

09320-10038

$2.61

15

SPACER

09180-06271

$2.35

16

BOLT

09116-06214

$2.50

17

HOSE,WATER DRAI This part replaces 44423C0BE00J000.

44423-01D01

$15.80
