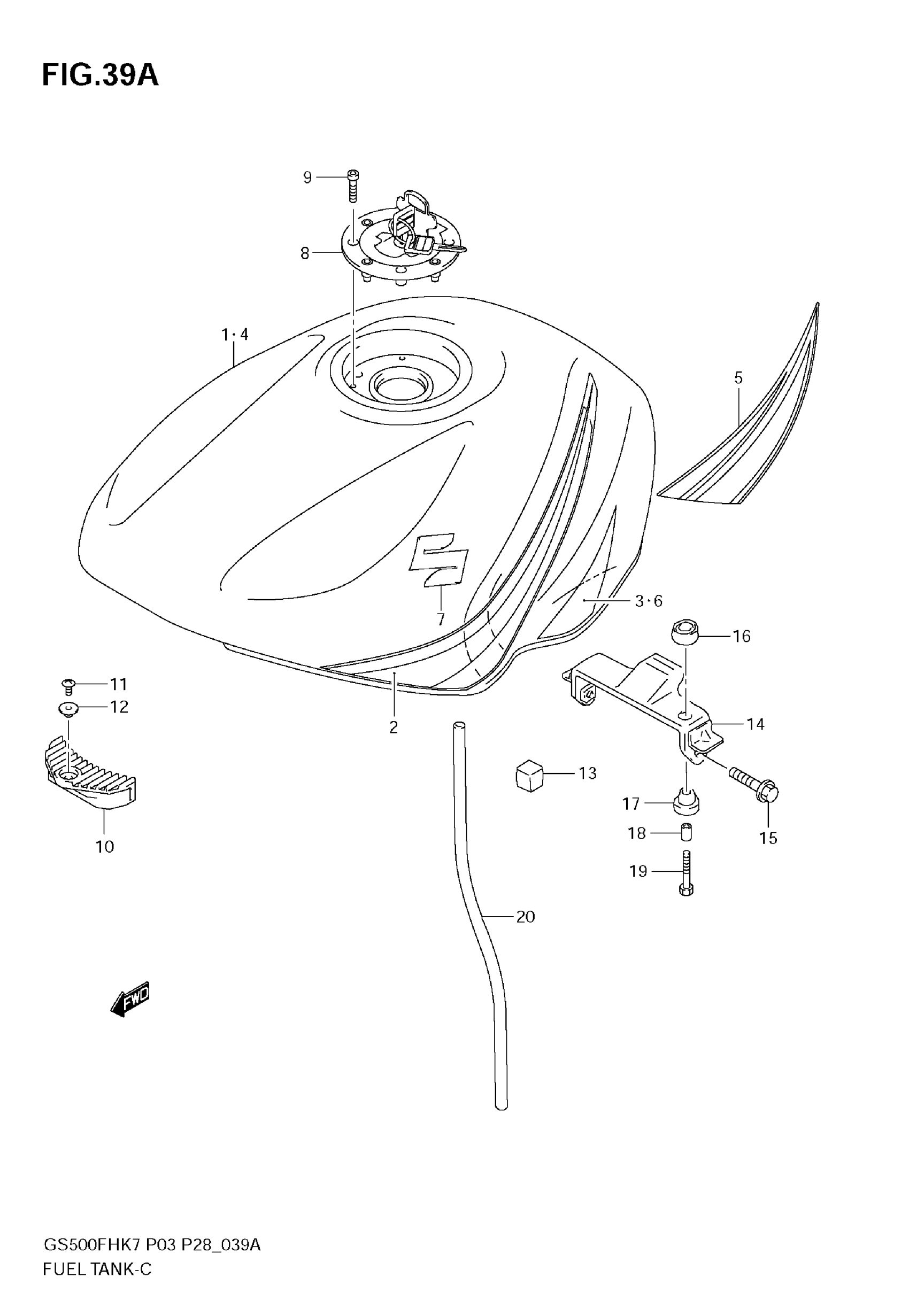

Suzuki GS500F (2009) FUEL TANK (MODEL K8) Diagram

#

Description
Price

1

TANK ASSY, FUEL (SILVER) | GS500H E28, E95 FOR BPK

49100-01D90-YHG

Unavailable

1

TANK ASSY, FUEL (BLUE) | GS500H E28, E95 FOR CWH; Includes Item(s) 2 - 3

49100-01D90-YKY

Unavailable

2

TAPE SET, UPPER | FOR YHG

68110-01DE0-BVB

Unavailable

2

TAPE SET, UPPER | FOR YKY

68110-01DE0-DZD

Unavailable

3

TAPE SET, LOWER | FOR YHG

68110-01DF0-BPK

Unavailable

3

TAPE SET, LOWER | FOR YKY

68110-01DF0-CWH

Unavailable

4

TANK ASSY, FUEL (SILVER) | GS500F E3, E28, E95 FOR EPV

49100-01DC0-YAY

Unavailable

4

TANK ASSY, FUEL (BLUE) | GS500F E3, E28, E95 FOR CWH

49100-01DC0-YKY

Unavailable

4

TANK ASSY, FUEL (SILVER) | GS500F E33, FOR EPV

49100-01DD0-YAY

Unavailable

4

TANK ASSY, FUEL (BLUE) | GS500F E33, FOR CWH; Includes Item(s) 5 - 6

49100-01DD0-YKY

Unavailable

5

TAPE SET, UPPER | FOR YAY

68110-01DG0-FKN

Unavailable

5

TAPE SET, UPPER | FOR YKY

68110-01DG0-FKM

Unavailable

6

TAPE SET, LOWER | FOR YAY

68110-01DF0-EPV

Unavailable

6

TAPE SET, LOWER | FOR YKY

68110-01DF0-CWH

Unavailable

7

EMBLEM "S"

68111-18G20

$32.30

8

CAP SET,FUEL TA | E3, E28, E95 This part replaces 44201-33820.

44201-33822

$152.27

8

CAP SET,FUEL TA | E33 This part replaces 44200-33890.

44200-33891

$252.70

9

BOLT

09106-05017

$2.83

10

CUSHION, FRONT

44511-27E00

$12.48

11

SCREW

D2116-0510B

Unavailable

12

WASHER

09169-05012

$2.38

13

CUSHION,FUEL TA This part replaces 44541-01D00.

44541-01D01

$5.19

14

BRACKET, REAR This part replaces 44550-0BE00.

44550-01D01

$48.38

15

BOLT, BRACKET

01551-0840B

$3.29

16

CUSHION, REAR UPPER

09320-14017

$2.35

17

CUSHION, REAR LOWER

09320-10038

$2.61

18

SPACER

09180-06271

$2.35

19

BOLT

09116-06214

$2.50

20

HOSE,WATER DRAI This part replaces 44423C0BE00J000.

44423-01D01

$15.80
