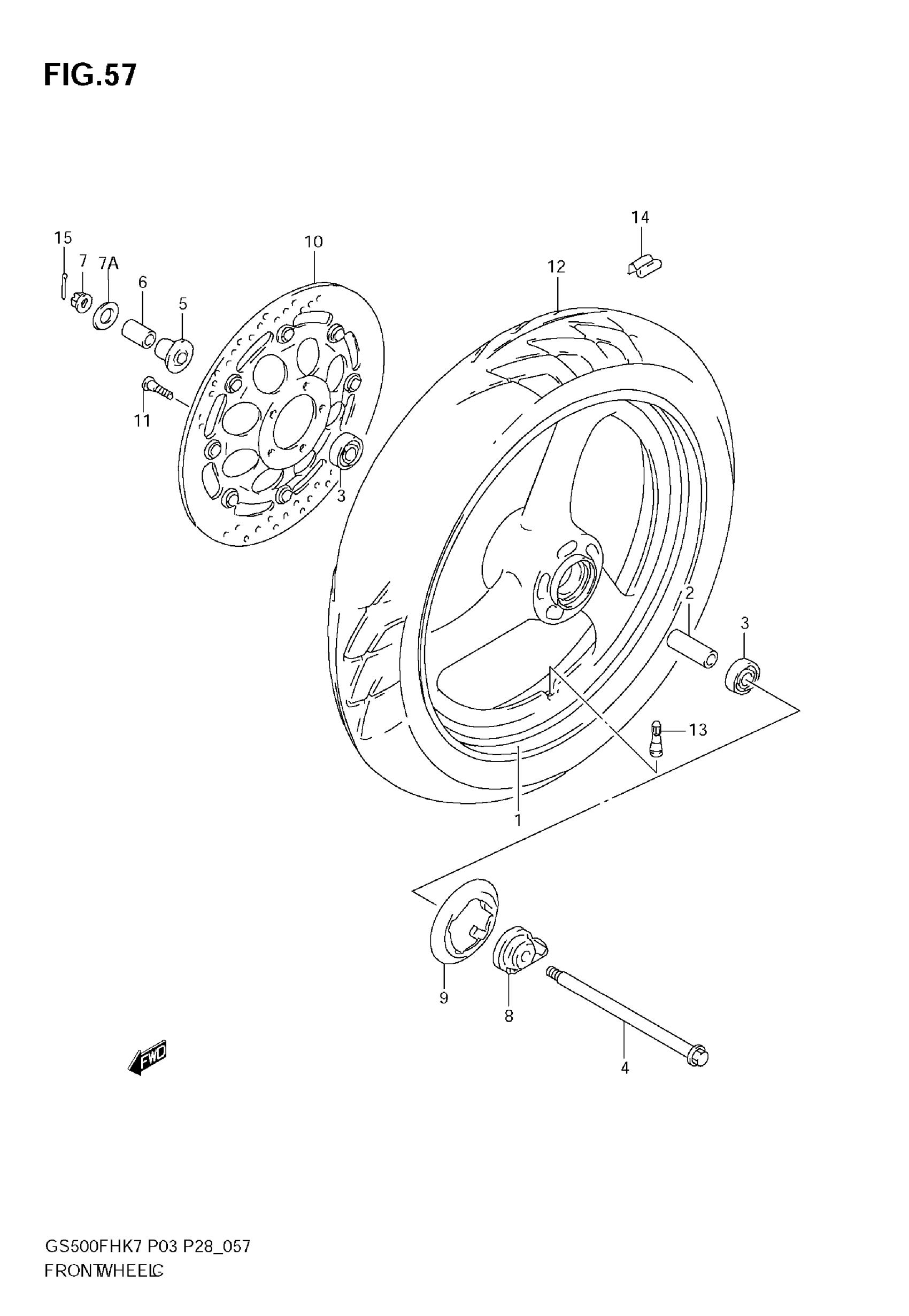

Suzuki GS500F (2009) FRONT WHEEL Diagram

#

Description
Price

1

WHEEL, FRT (MT3.00X17) (BLACK)

54111-34C01-291

Unavailable

2

SPACER (15.3X21.7X63)

09180-15011

$8.18

3

BEARING This part replaces 08123-63027.

08123-6302B

$22.74

4

AXLE, FRONT | MODEL K7/K8

54711-01D00

$56.05

4

AXLE, FRONT | MODEL K9

54711-01D10

Unavailable

5

SPACER, BEARING RH This part replaces 54740C33400J000.

54740-33410

$19.15

6

SPACER, FRONT AXLE RH This part replaces 54741C01D00J000.

54741-01D00

$15.42

7

NUT | MODEL K7/K8

09159-12027

$15.67

7

NUT | MODEL K9

09159-12058

$6.97

7A

WASHER | MODEL K9

09160-12094

$3.72

8

BOX ASSY, SPEEDOMETER GEAR

54600-01D01

Unavailable

9

COVER, FRONT HUB LH (BLACK)

54871C38C00J291

Unavailable

10

DISC, FRONT BRAKE RH

59210-01DA0

Unavailable

11

BOLT (8X33) This part replaces 09106-08125.

09106-08148

$4.80

12

TIRE, FRT,110/70-17 54H | BATTLAX BT45F G

55110-01D10

Unavailable

13

VALVE ASSY, WHEEL RIM (TR412)

43130-07E00

Unavailable

14

BALANCER, WHEEL (NO. 1)

55411-17G00

$7.63

14

BALANCER, WHEEL (NO. 2)

55412-17G00

$7.05

14

BALANCER, WHEEL (NO. 3)

55413-17G00

Unavailable

15

PIN, COTTER | MODEL K7/K8

04111-3025A

$1.49
