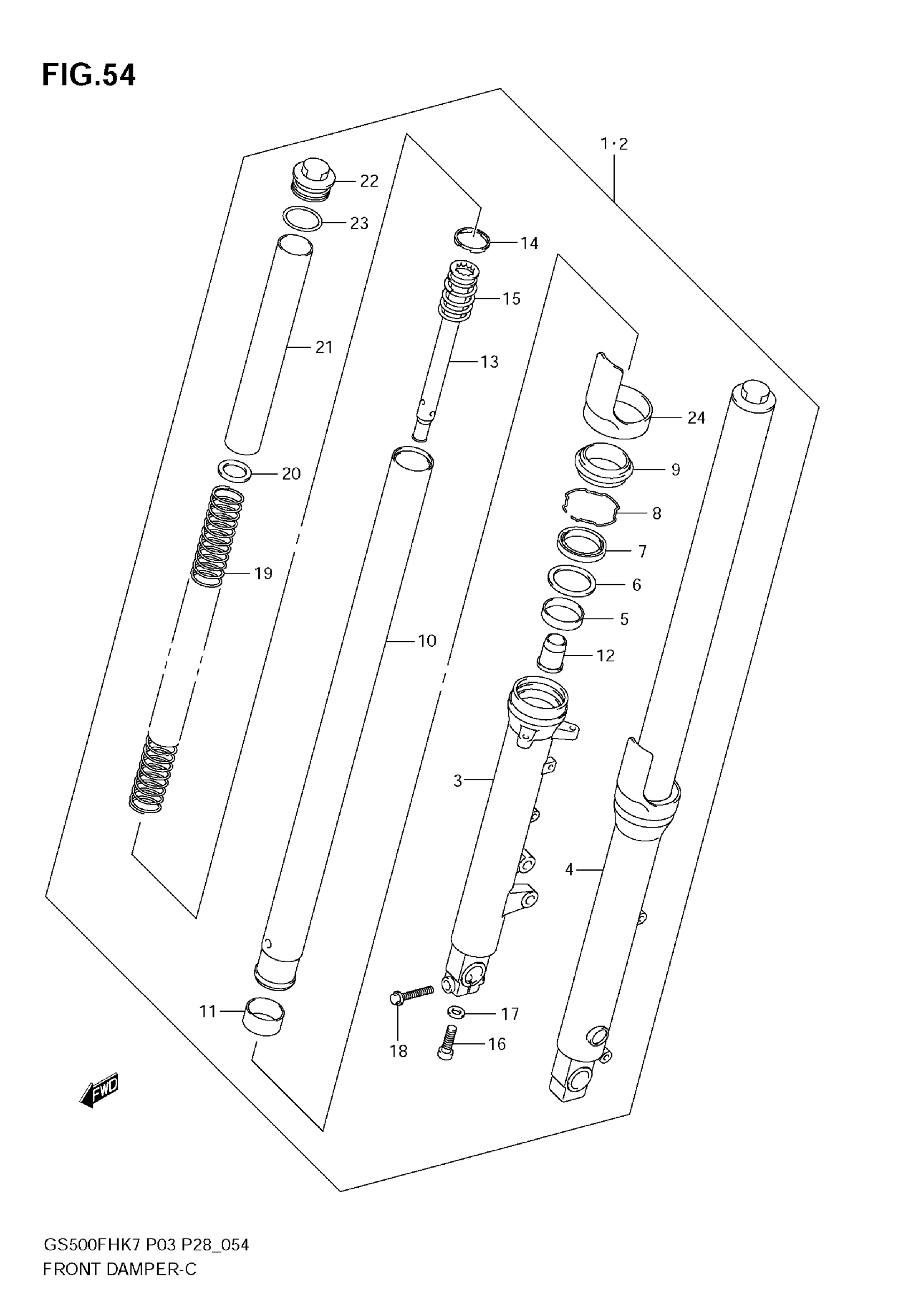

Suzuki GS500F (2009) FRONT DAMPER Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-01DD0

Unavailable

2

DAMPER ASSY, FRONT FORK LH | Includes Item(s) 3 - 24

51104-01DD0

Unavailable

3

TUBE, OUTER RH

51130-01DD0

Unavailable

4

TUBE, OUTER LH

51140-01DD0

Unavailable

5

METAL, SLIDE This part replaces 51167-01DD0.

51167-01D00

$12.63

6

WASHER

51158-01DD0

Unavailable

7

SEAL, OIL This part replaces 51153-01DD0.

51153-08C20

$20.47

8

RING, STOPPER This part replaces 51156-01DD0.

51156-40301

$5.05

9

SEAL, DUST

51173-01DD0

Unavailable

10

TUBE, INNER

51110-01DD0

Unavailable

11

PISTON This part replaces 51121-01DD0.

51121-01D00

$18.90

12

PIECE, OIL LOCK

51195-01DD0

Unavailable

13

CYLINDER

51146-01DD0

Unavailable

14

RING, PISTON

51196-01DD0

Unavailable

15

SPRING, REBOUND

51177-01DD0

Unavailable

16

BOLT

51147-01DD0

$2.08

17

GASKET

51148-01DD0

$4.43

18

BOLT, RH

51166-01DD0

Unavailable

19

SPRING, MAIN

51171-01DD0

Unavailable

20

WASHER, SPRING

51172-01DD0

Unavailable

21

SPACER

51176-01DD0

Unavailable

22

CAP

51351-01DD0

Unavailable

23

O RING This part replaces 51117-01DD0.

51117-40300

$3.09

24

PROTECTOR

51201-01DD0

Unavailable
