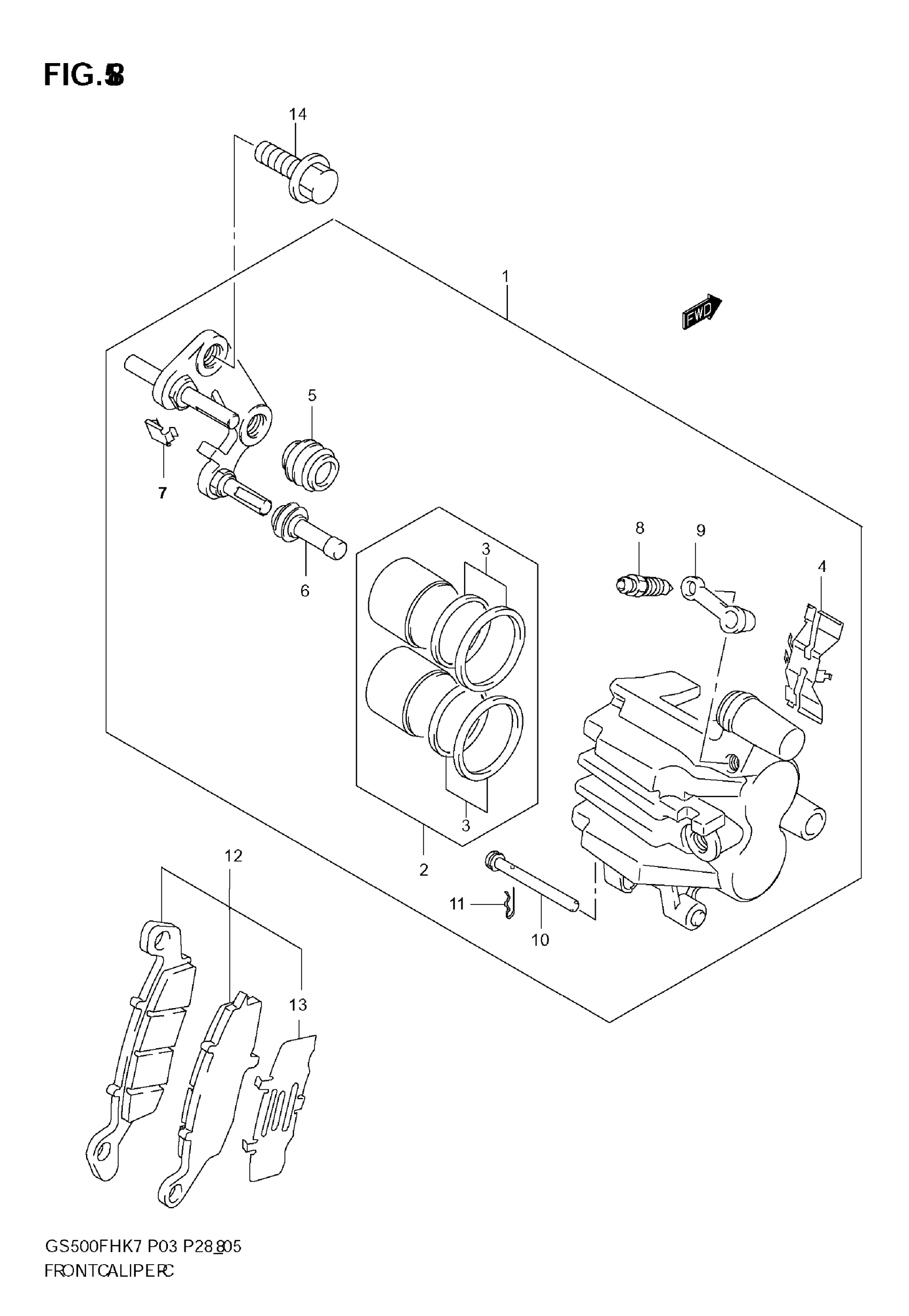

Suzuki GS500F (2009) FRONT CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, FRONT RH | Includes Item(s) 2 - 11 This part replaces 59100-01DA0-999.

59100-33D81-999

$583.83

2

PISTON SET

59300-0BE00

Unavailable

3

SEAL SET, PISTON

59300-0BE10

Unavailable

4

SPRING

59115-0BE00

Unavailable

5

BOOT

59112-0BE00

Unavailable

6

INSULATOR

59313-0BE00

Unavailable

7

GUIDE

59116-0BE00

Unavailable

8

BLEEDER This part replaces 59121-0AE00.

59121-01A00

$8.73

9

CAP

59122-0AE00

Unavailable

10

PIN

59141-0BE00

Unavailable

11

CLIP

69142-0BE00

Unavailable

12

PAD & SHIM SET | Includes Item(s) 13

59102-33890

$78.42

13

.SHIM, PAD

59171-33D00

$14.85

14

BOLT

01550-1025B

$4.10
