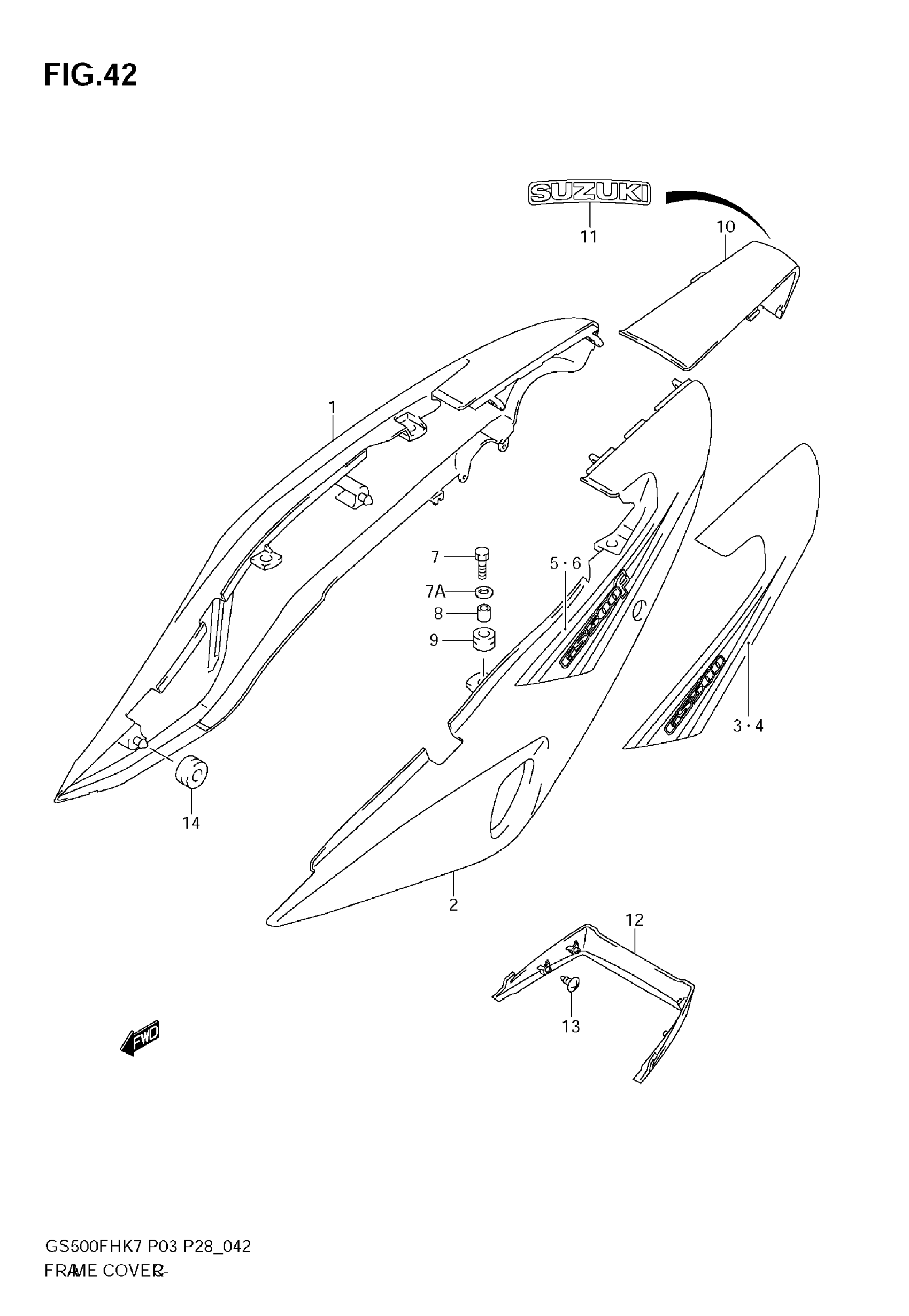

Suzuki GS500F (2009) FRAME COVER (MODEL K7) Diagram

#

Description
Price

1

COVER,FRAME RH | FOR BPK This part replaces 47111-01DA0-YAY.

47111-01DA0-NE2

$28.37

1

COVER, FRAME RH (WHITE) | FOR CWH

47111-01DA0-YBD

Unavailable

2

COVER,FRAME | FOR BPK This part replaces 47211-0BE00-YAY.

47211-0BE00-NE2

Unavailable

2

COVER, FRAME LH (WHITE) | FOR CWH

47211-0BE00-YBD

$78.62

3

TAPE, RH | GS500H FOR BPK

68135-01DH0-EBD

Unavailable

3

TAPE, RH | GS500H FOR CWH

68135-01DH0-EBE

Unavailable

4

TAPE, LH | GS500H FOR BPK

68145-01DH0-EBD

Unavailable

4

TAPE, LH | GS500H FOR CWH

68145-01DH0-EBE

Unavailable

5

TAPE, RH | GS500F FOR BPK

68135-01DJ0-EBF

Unavailable

5

TAPE, RH | GS500F FOR CWH

68135-01DJ0-EBG

Unavailable

6

TAPE, LH | GS500F FOR BPK

68145-01DJ0-EBF

Unavailable

6

TAPE, LH | GS500F FOR CWH

68145-01DJ0-EBG

Unavailable

7

BOLT

D1507-0620B

Unavailable

7A

WASHER

D8322-9106B

Unavailable

8

SPACER

09180-06263

$2.03

9

CUSHION

09320-09016

$1.97

10

COVER, CENTER (BLACK) | FOR BPK

47311-01DA0-YAY

Unavailable

10

COVER,FRAME CEN | FOR CWH This part replaces 47311-01DA0-YBD.

47311-01DA0-NE2

$11.05

11

EMBLEM | FOR BPK

68165-01DB0-CAD

Unavailable

11

EMBLEM | FOR CWH

68165-01DB0-EBH

Unavailable

12

COVER, LOWER This part replaces 47321-01DA0-291.

47321-01DA0-NE2

$113.15

13

SCREW

03541-0410B

$1.98

14

CUSHION

09320-08018

$3.04
