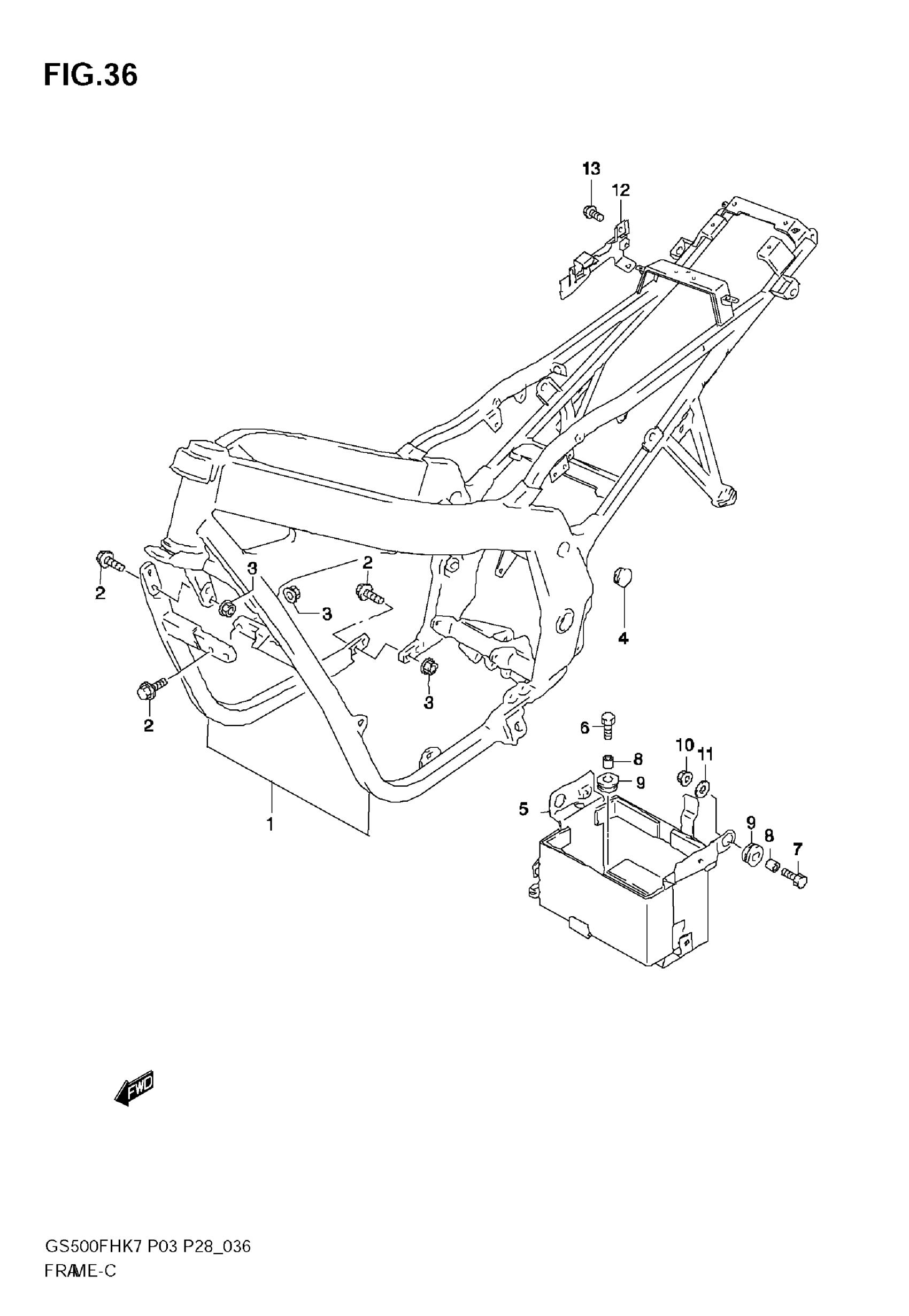

Suzuki GS500F (2009) FRAME Diagram

#

Description
Price

1

FRAME SET (BLACK) | GS500H E28, E95

41100-01D80-ENM

Unavailable

1

FRAME SET (BLACK) | GS500F E3, E28, E95

41100-01D90-ENM

Unavailable

2

BOLT

01550-1035B

$2.82

3

NUT

08319-3110B

$3.87

4

CAP, BODY FRAME

43585-01D90

$6.88

5

HOLDER, BATTERY | E3, E28, E95 This part replaces 41540-01D50.

41540-01D60

Unavailable

5

HOLDER, BATTERY | E33

41540-01D60

Unavailable

6

BOLT (6X16) This part replaces 09116-06008.

09116-06168

$2.50

7

BOLT This part replaces 09116-06083.

09116-06167

$2.19

8

SPACER (6.2X9X7.5)

09180-06038

$1.98

9

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

10

NUT

D8313-3006B

Unavailable

11

WASHER

D8322-0106B

Unavailable

12

HOLDER, ELECTRIC PARTS

47410-01D11

Unavailable

13

BOLT

D1557-0616B

$1.49
