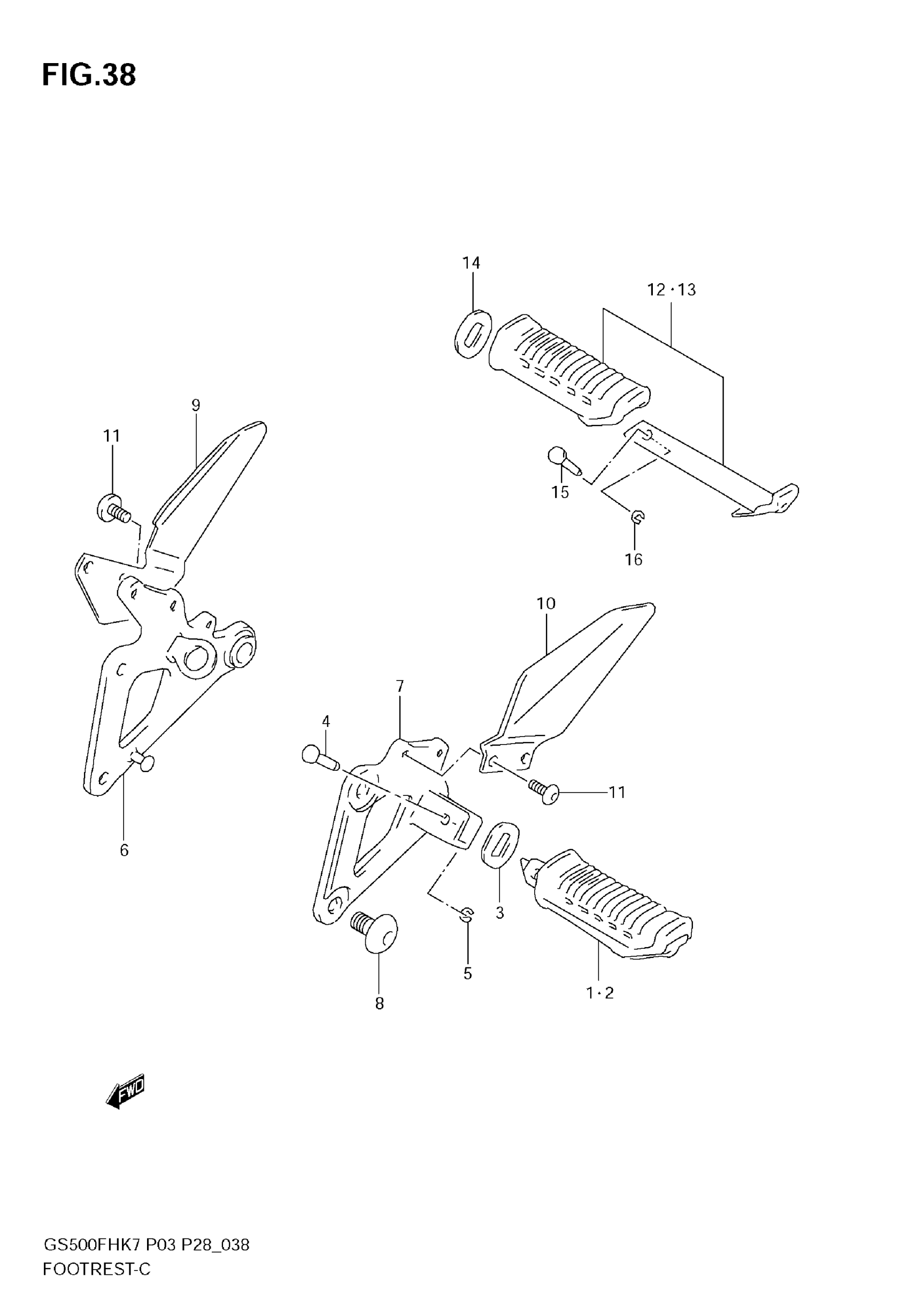

Suzuki GS500F (2009) FOOTREST Diagram

#

Description
Price

1

RUBBER ASSY, FRONT RH This part replaces 43550C01D00JE0Z.

43550-01D00

Unavailable

2

RUBBER ASSY, FRONT LH This part replaces 43560C01D00JE0Z.

43560-01D00

Unavailable

3

WASHER, RUBBER

43631-34A01

$4.52

4

PIN

09208-06008

$2.92

5

E RING

D8332-1104A

Unavailable

6

BRACKET, FRONT RH (BLACK)

43510-01D00-ENM

Unavailable

7

BRACKET, FRONT LH (BLACK)

43520-01D00-ENM

Unavailable

8

BOLT, BRACKET

09106-08094

$7.23

9

GUARD, FRONT FOOTREST RH

43586-01D10

Unavailable

10

GUARD, FRONT FOOTREST LH

43596-01D10

Unavailable

11

BOLT, GUARD

09139-06062

$3.03

12

FOOTREST ASSY,P This part replaces 43600-12B00.

43600-12B01

$23.93

13

FOOTREST ASSY,P This part replaces 43700-12B00.

43700-12B01

$22.58

14

WASHER, RUBBER

43631-34A01

$4.52

15

PIN

09208-06008

$2.92

16

E RING

D8332-1104A

Unavailable
