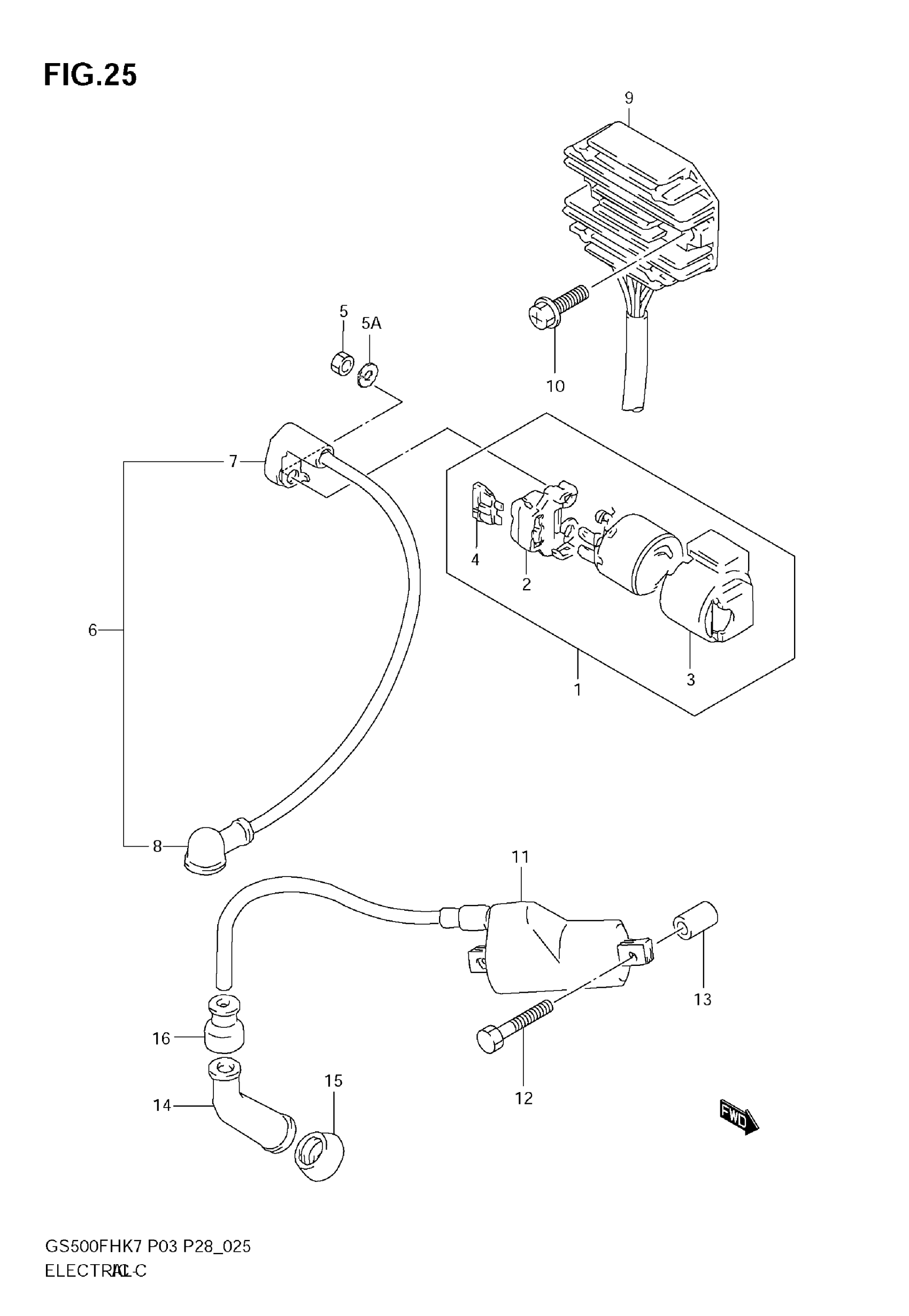

Suzuki GS500F (2009) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY, STARTING MOTOR | Includes Item(s) 2 - 4

31800-01D00

$119.28

2

TERMINAL, RELAY

31841-01D00

Unavailable

3

HOLDER, RELAY

31892-07D00

$15.00

4

FUSE, (20A)

09481-20101

$2.12

5

NUT

D8310-0006A

Unavailable

5A

WASHER

D8321-5106A

Unavailable

6

WIRE, STARTER MOTOR LEAD | Includes Item(s) 7 - 8

33810-01DA0

$51.32

7

CAP, BATTERY PLUS

33624-01D10

Unavailable

8

CAP, STARTER MOTOR

31861-48B10

$6.55

9

RECTIFIER ASSY This part replaces 32800C01D00J000.

32800-01D00

$168.73

10

SCREW

02162-0620B

$2.28

11

COIL ASSY, IGNITION This part replaces 33410-01D10.

33410-01D00

$181.73

12

BOLT

D1507-0640B

Unavailable

13

SPACER (6.2X12X16)

09180-06198

$4.32

14

CAP, SPARK PLUG This part replaces 33510-22010.

33510-97313

$14.73

15

SEAL, SPARK PLUG This part replaces 33541-32410.

33541-38210

$4.68

16

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34
