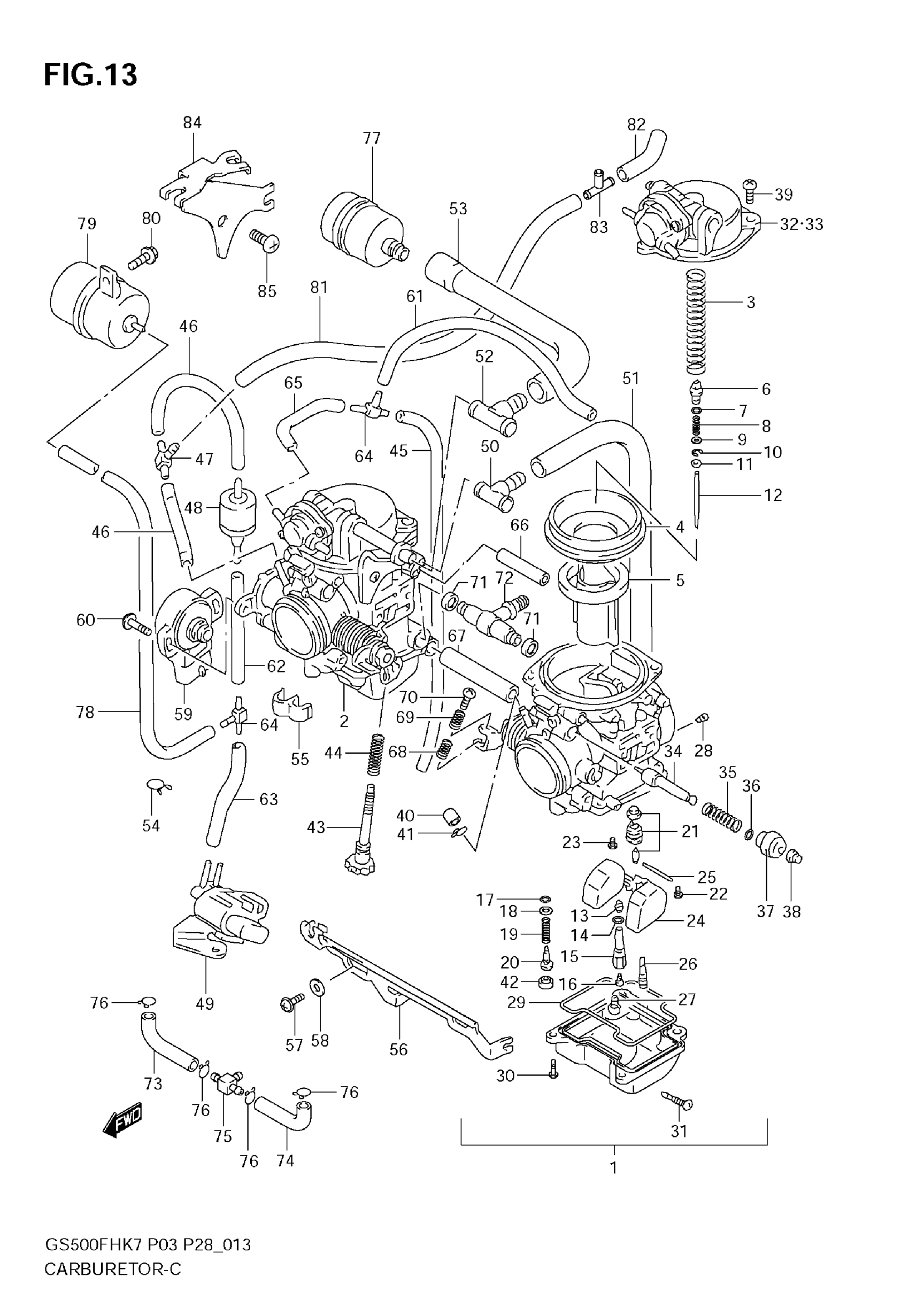

Suzuki GS500F (2009) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY, LH | E3, E28, E95

13201-01DQ0

Unavailable

1

CARBURETOR ASSY, LH | E33

13201-01DU0

Unavailable

2

CARBURETOR ASSY, RH | E3, E28, E95

13202-01DQ0

Unavailable

2

CARBURETOR ASSY, RH | E33; Includes Item(s) 3 - 44

13202-01DU0

Unavailable

3

SPRING

13573-19E00

$8.43

4

.DIAPHRAGM This part replaces 13507-17C01.

13507-17C02

$29.60

5

VALVE, PISTON

13501-29FA0

$72.47

6

HOLDER | E3, E28, E95

13418-33E00

$5.68

6

.HOLDER, GUIDE | E33

13418-44080

$10.00

7

O RING (D:1.9, D:4.8)

09280-05004

$2.11

8

SPRING

13481-13F00

$3.71

9

WASHER

13382-19E00

$3.56

10

E RING

13394-17E60

$1.80

11

RING

13387-13F00

$8.17

12

NEEDLE, JET (5DH60-1)

13383-01DU0

Unavailable

13

JET, NEEDLE (P-5M)

13341-01DN0

$53.92

14

.O RING This part replaces 13246-43010.

13246-43011

$4.34

15

HOLDER, JET

13385-07F00

$35.45

16

JET, MAIN (130)

09491-26016

$17.02

17

O-RING This part replaces 13295-29900.

13295-29901

$4.34

18

WASHER

13291-29900

$1.98

19

SPRING,THROTTLE SCREW

13268-48700

$4.34

20

ADJUSTER (3.0)

13279-01DN0

$12.97

21

VALVE ASSY,NEED This part replaces 13370-04F00.

13370-04F01

$64.82

22

SCREW This part replaces 02112-04083.

02112-0408A

$1.49

23

SCREW

13602-05A10

$3.56

24

FLOAT ASSY

13250-04F00

$34.73

25

.PIN, FLOAT

13254-01010

$3.62

26

JET, PILOT (17.5)

09492-17016

$17.25

27

JET, MAIN (60)

09491-60010

$14.54

28

JET, PILOT AIR (170)

09493-34003

$16.57

29

GASKET

13258-04F00

$9.89

30

SCREW

02112-04107

$1.55

31

SCREW, DRAIN This part replaces 13247-13A00.

13247-02340

$4.99

32

COVER ASSY, DIAPHRAGM LH

13502-01DB0

$135.35

33

COVER ASSY, DIAPHRAGM RH

13502-01DC0

$135.35

34

PLUNGER ASSY

13411-05300

$24.17

35

SPRING

13417-26D00

$6.08

36

.O RING (16) This part replaces 13278-47090.

13278-47091

$1.90

37

.HOLDER, GUIDE

13418-44080

$10.00

38

.CAP, STARTER VALVE

13682-31210

$4.37

39

SCREW

02112-05127

$1.97

40

CAP

13274-84000

$3.82

41

CLIP

09401-06101

$2.03

42

PLUG

13281-05A00

$4.60

43

ADJUSTER

13267-13F00

$15.25

44

SPRING

13271-33C00

$6.03

45

HOSE (3.5X7.5X600) | L:600 --> 175 This part replaces 09355-35755-600.

09355-35007-600

$6.94

46

HOSE (3.5X7.5X600) | L:600 --> 60 This part replaces 09355-35755-600.

09355-35007-600

$6.94

47

NIPPLE

13685-04F10

$11.07

48

CHECK VALVE ASSY | E3, E28, E95

95568-01DN0

Unavailable

48

CHECK VALVE ASSY | E33

95569-01DN0

Unavailable

49

SOLENOID ASSY

18115-70G10

$123.07

50

HOSE

13683-01DB0

$13.63

51

TUBE This part replaces 13683-01DN0.

13683-01DN1

$41.03

52

3 WAY

13683-01DP0

$81.70

53

HOSE This part replaces 13683-01DC1.

13683-01DC2

$17.40

54

CLIP

09401-16401

$3.14

55

CLIP

09408-00200

$2.67

56

LEVER

13413-01DE0

Unavailable

57

SCREW

13602-04F00

$4.33

58

PACKING

13557-33E00

$3.47

59

SENSOR ASSY,THR This part replaces 13550-13D60.

13550-13D61

$87.14

60

SCREW

13605-20C00

$3.84

61

HOSE (3.5X7.5X600) | L:600 --> 165 This part replaces 09355-35755-600.

09355-35007-600

$6.94

62

HOSE (3.5X7.5X600) | L:600 --> 40 This part replaces 09355-35755-600.

09355-35007-600

$6.94

63

HOSE (3.5X7.5X600) | L:600 --> 35 This part replaces 09355-35755-600.

09355-35007-600

$6.94

64

NIPPLE

09367-04007

$4.00

65

HOSE (3.5X7.5X600) | L:600 --> 55 This part replaces 09355-35755-600.

09355-35007-600

$6.94

66

ROD

13685-01DC0

Unavailable

67

PIPE

13685-01DB0

Unavailable

68

SPRING

13268-96111

$4.35

69

SPRING

13271-44B00

$3.89

70

SCREW

13267-44B00

$4.10

71

SEAL

13673-44B00

$4.60

72

NIPPLE

13685-33EQ0

$23.85

73

HOSE | E33

13684-01D21

Unavailable

74

HOSE | E33

13684-48B01

Unavailable

75

.NIPPLE | E33

13685-48B00

$12.15

76

CLIP | E33 This part replaces 09401-10410.

09401-10401

$1.49

77

FILTER, AIR CLEANER NO. 2

18780-32E00

$29.28

78

HOSE (3.5X7.5X600) | L:600 --> 360 This part replaces 09355-35755-600.

09355-35007-600

$6.94

79

CHAMBER, VACUUM

13715-04F00

$24.52

80

BOLT This part replaces D1557-0620B.

01550-0620B

$2.39

81

HOSE,5X10X600 | L:600 --> 100 This part replaces 09355-50105-600.

44421-13ER0

$10.06

82

HOSE,5X10X600 | L:600 --> 380 This part replaces 09355-50105-600.

44421-13ER0

$10.06

83

.JOINT,3 WAY

09367-06002

$2.50

84

BRACKET | E3, E28, E95

13565-01DE0

Unavailable

85

SCREW, THROTTLE | E3, E28, E95 This part replaces 02112-05103.

02112-0510A

$1.49
