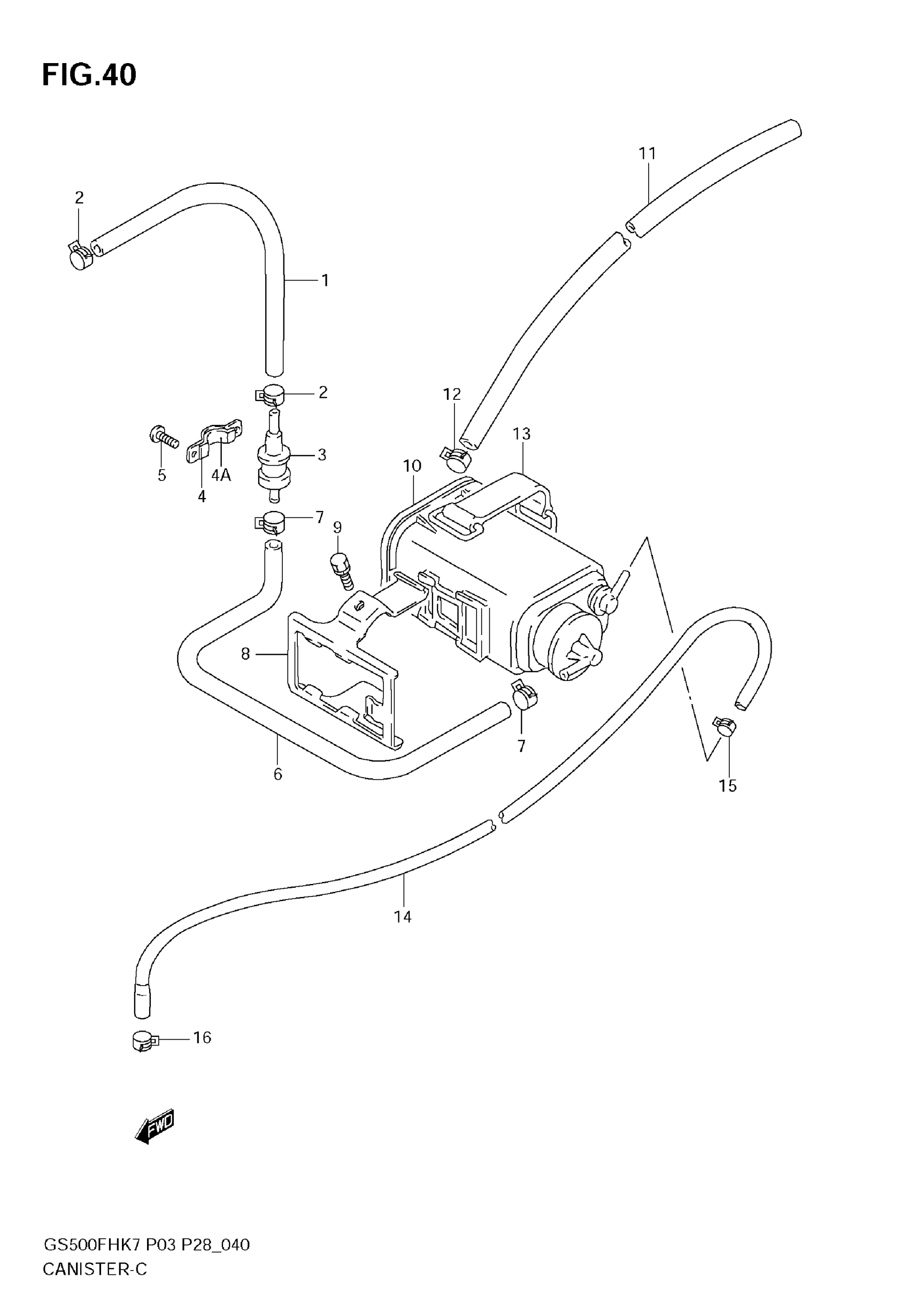

Suzuki GS500F (2009) CANISTER (E33) Diagram

#

Description
Price

1

HOSE, TANK TO BREATHER VALVE | MODEL K7

09355-54116-600

$12.06

1

HOSE, TANK TO BREATHER VALVE | MODEL K8/K9

44434-01D00

Unavailable

2

CLIP

09401-11413

$2.26

3

VALVE, BREATHER

44240-38A00

$61.15

4

PLATE,FUEL TANK BREATHER NO.2 | Includes Item(s) 4A

44892-24A00

$4.52

4A

CUSHION (10X30X2)

44894-24A00

$1.72

5

SCREW

02142-0410B

Unavailable

6

HOSE, VALVE TO CANISTER | MODEL K7

09343-05503

Unavailable

6

HOSE, VALVE TO CANISTER | MODEL K8/K9

44435-01D00

Unavailable

7

CLIP

09401-11413

$2.26

8

PLATE, CANISTER FITTING

44880-01D00

Unavailable

9

BOLT

01570-0610B

Unavailable

10

CANISTER

17210-01D00

Unavailable

11

HOSE,6.5X11.5X6 | L:600 --> 300 This part replaces 09355-70125-600.

44421-12FR0

$12.33

12

CLIP

09401-11415

$2.23

13

BAND, TOOL This part replaces 09462-00073.

09462-00093

$9.24

14

HOSE, CANISTER TO CARBURETOR | MODEL K7

09359-35751-600

Unavailable

14

HOSE, CANISTER TO CARBURETOR | MODEL K8/K9

44436-01D00

Unavailable

15

CLIP, CANISTER

09401-06405

$2.45

16

CLIP, CARBURETOR

09401-08411

$1.78
