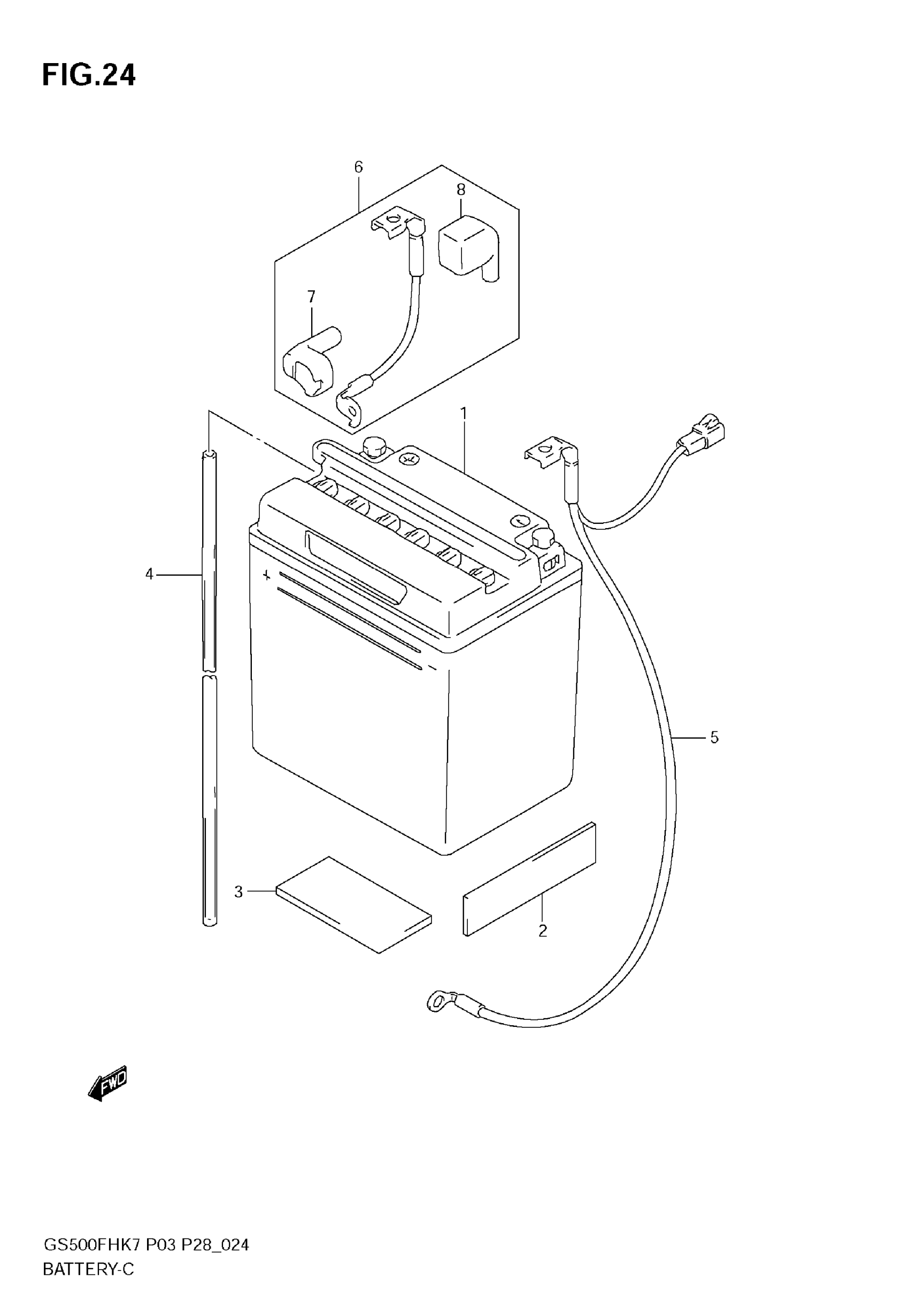

Suzuki GS500F (2009) BATTERY Diagram

#

Description

Price

1

BATTERY (FB10L-B2,12V11AH)

33610-04A20

$107.78

2

CUSHION, REAR FENDER REAR This part replaces 33652C29100J000.

33651-37000

$4.48

3

CUSHION, LOWER (40X120X6) This part replaces 33652C01D30J000.

33652-06C00

$4.17

4

HOSE,BATTERY EX This part replaces 33680C31003J000.

33680-16A11

$6.78

5

LEAD WIRE, (-)

33860-01D10

Unavailable

6

LEAD WIRE,BATTE | Includes Item(s) 7 - 8 This part replaces 33870-0BE00.

33870-01D10

$30.57

7

CAP, STARTER RELAY TERMINAL

33624-01D00

Unavailable

8

CAP, BATTERY (+)

33624-0BE00

Unavailable
