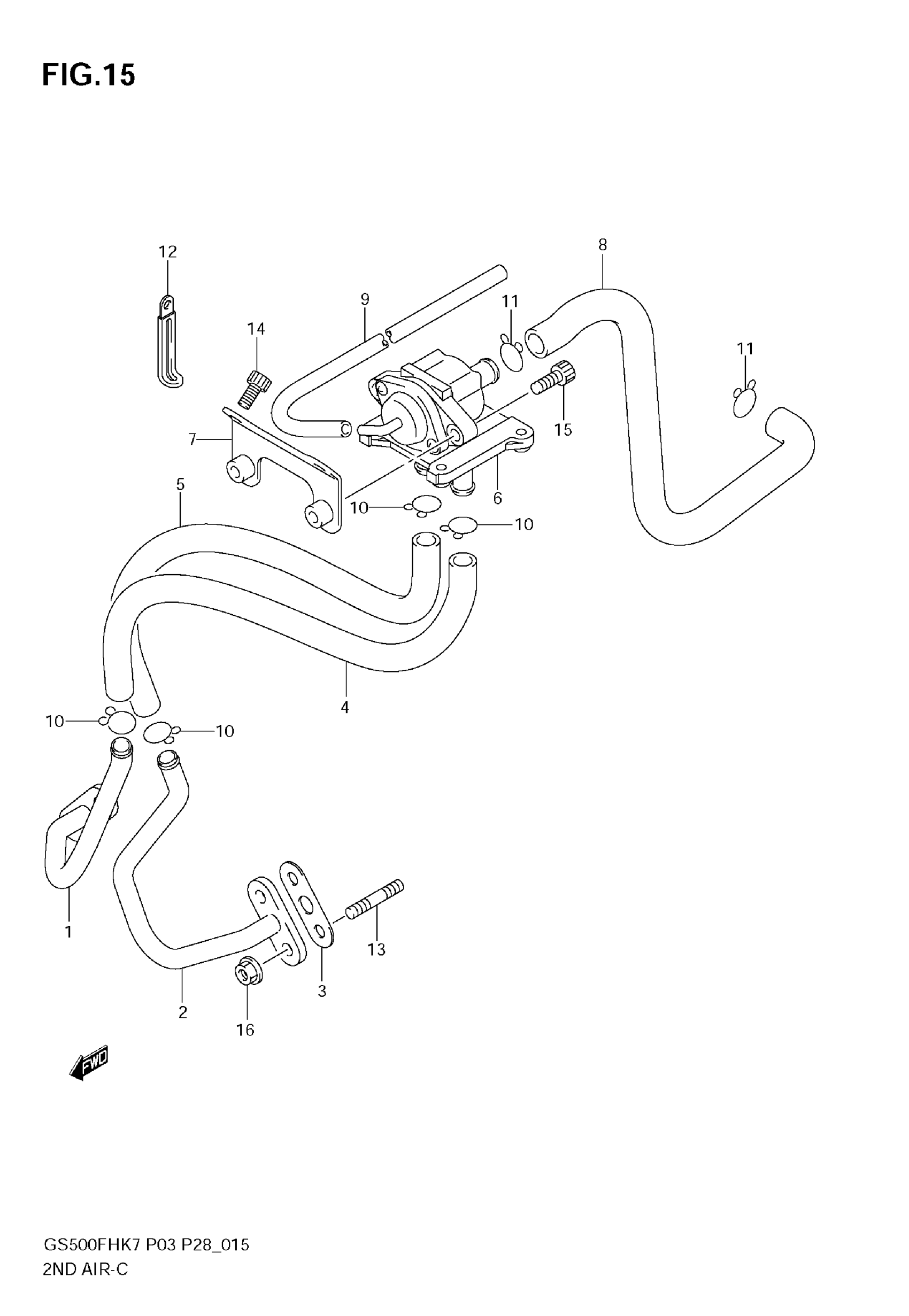

Suzuki GS500F (2009) 2ND AIR Diagram

#

Description
Price

1

PIPE, 2ND AIR RH

18420-01D01

Unavailable

2

PIPE, 2ND AIR LH

18430-01D01

Unavailable

3

GASKET 2ND AIR PIPE This part replaces 18441-12D10.

18441-45C01

$7.05

4

HOSE , 2ND AIR REED VALVE RH

18445-01D20

Unavailable

5

HOSE , 2ND AIR REED VALVE LH

18446-01D20

Unavailable

6

VALVE ASSY, 2ND AIR REED

18450-10F03

$194.46

7

BRACKET, 2ND AIR VALVE

18610-01D20-E0Z

Unavailable

8

HOSE, 2ND AIR CLEANER

18711-01D20

Unavailable

9

HOSE | L:600 --> 270 This part replaces 09359-40701-600.

09359-40703-600

$9.60

10

CLIP

09401-13409

$2.12

11

CLIP

09401-15101

$2.26

12

CLAMP

09404-06429

$1.83

13

BOLT

01421-0616B

$2.33

14

BOLT This part replaces D1557-0612B.

D1557-0616B

$1.49

15

BOLT

D7107-0616B

$1.49

16

NUT

D8320-1006B

Unavailable
