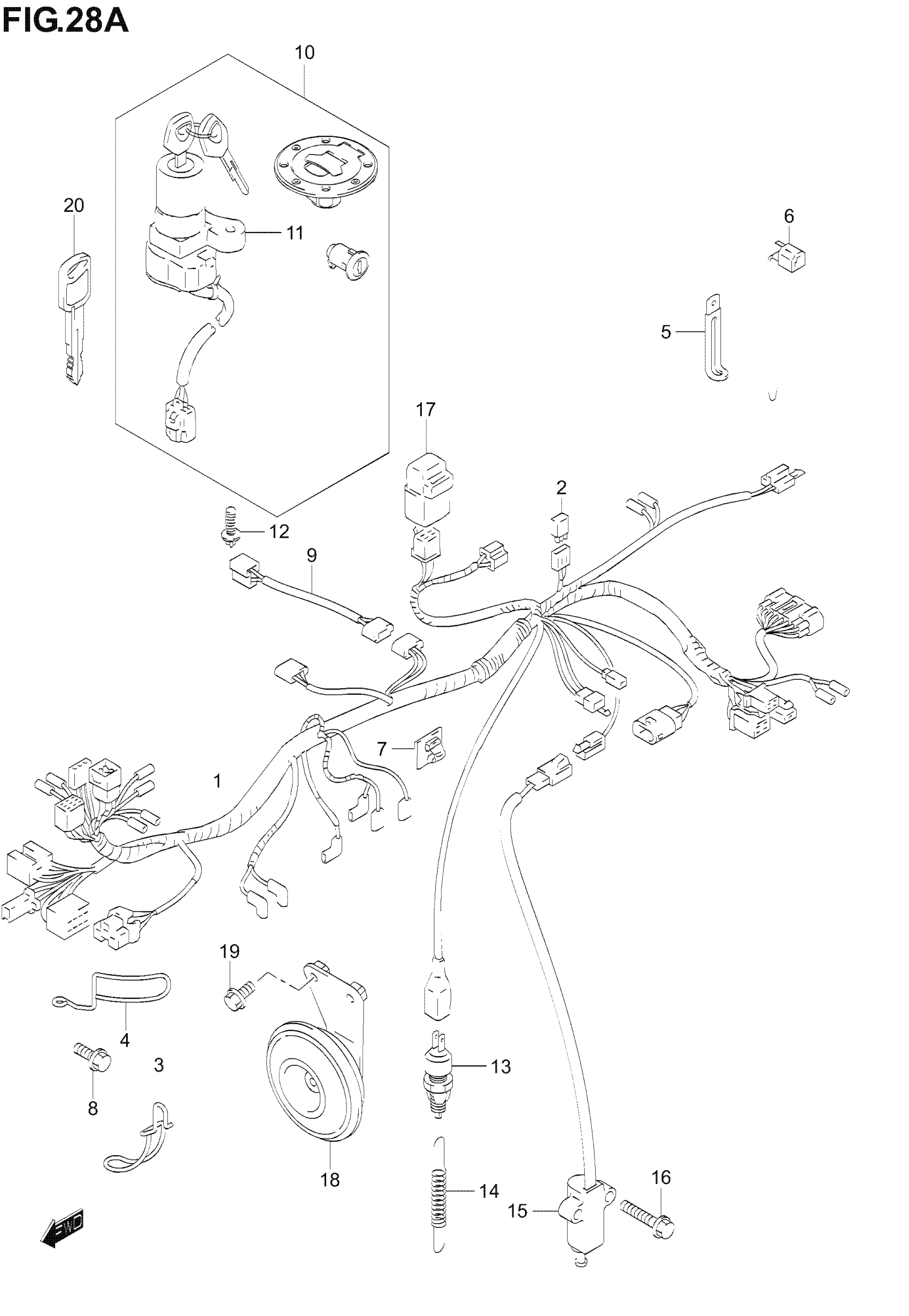

Suzuki GS500F (2006) WIRING HARNESS (NOT FOR U.S. MARKET) Diagram

#

Description
Price

1

HARNESS, WIRING | MODEL K4/K5

36610-0BEK0

Unavailable

1

HARNESS, WIRING | MODEL K6; Includes Item(s) 2

36610C0BEP0J000

Unavailable

2

DIODE

36611-02E01

Unavailable

3

PROTECTOR, WIRING HARNESS

36611-01D00

Unavailable

4

PROTECTOR, WIRING HARNESS

36611-01D10

Unavailable

5

CLAMP (L:65)

09404-06429

$1.82

5

CLAMP This part replaces 09404-06431.

09404-06039

$1.73

5

CLAMP(L:80) This part replaces 09404-06434.

09404-06036

$1.76

5

CLAMP (L:80) This part replaces 09404-08419.

09404-08422

$2.88

6

CLAMP (L:125)

D9436-01425

Unavailable

6

NO DESCRIPTION AVAILABLE This part replaces D9448-01885.

D9448-02875

Unavailable

6

CLAMP (L:190)

09407-19401

$3.32

7

CLAMP

09403-06310

Unavailable

8

BOLT This part replaces D1557-06165.

D1557-0616B

$0.29

9

WIRE, AIR SOLENOID

36852-01D40

Unavailable

10

LOCK SET | Includes Item(s) 11 This part replaces 37000-01870.

37000-01871

$545.97

11

LOCK ASSY, STEERING

37100-01D40

$228.22

12

BOLT

09139-06026

$2.53

13

SWITCH ASSY, STOP LAMP

37740-24A00

$16.66

14

SPRING

09443-06042

$4.10

15

SWITCH ASSY,SID This part replaces 37840-26D00.

37840-26X52

$98.18

16

BOLT

D1557-06305

Unavailable

17

RELAY ASSY, SIDE STAND This part replaces 38740-24B00.

38740-24X50

$41.38

18

HORN ASSY This part replaces 38500C01D20J000.

38500-01D10

Unavailable

19

BOLT This part replaces D1557-06125.

D1557-0616B

$0.29

20

KEY, BLANK | OPT

37146-33E00

$19.42
