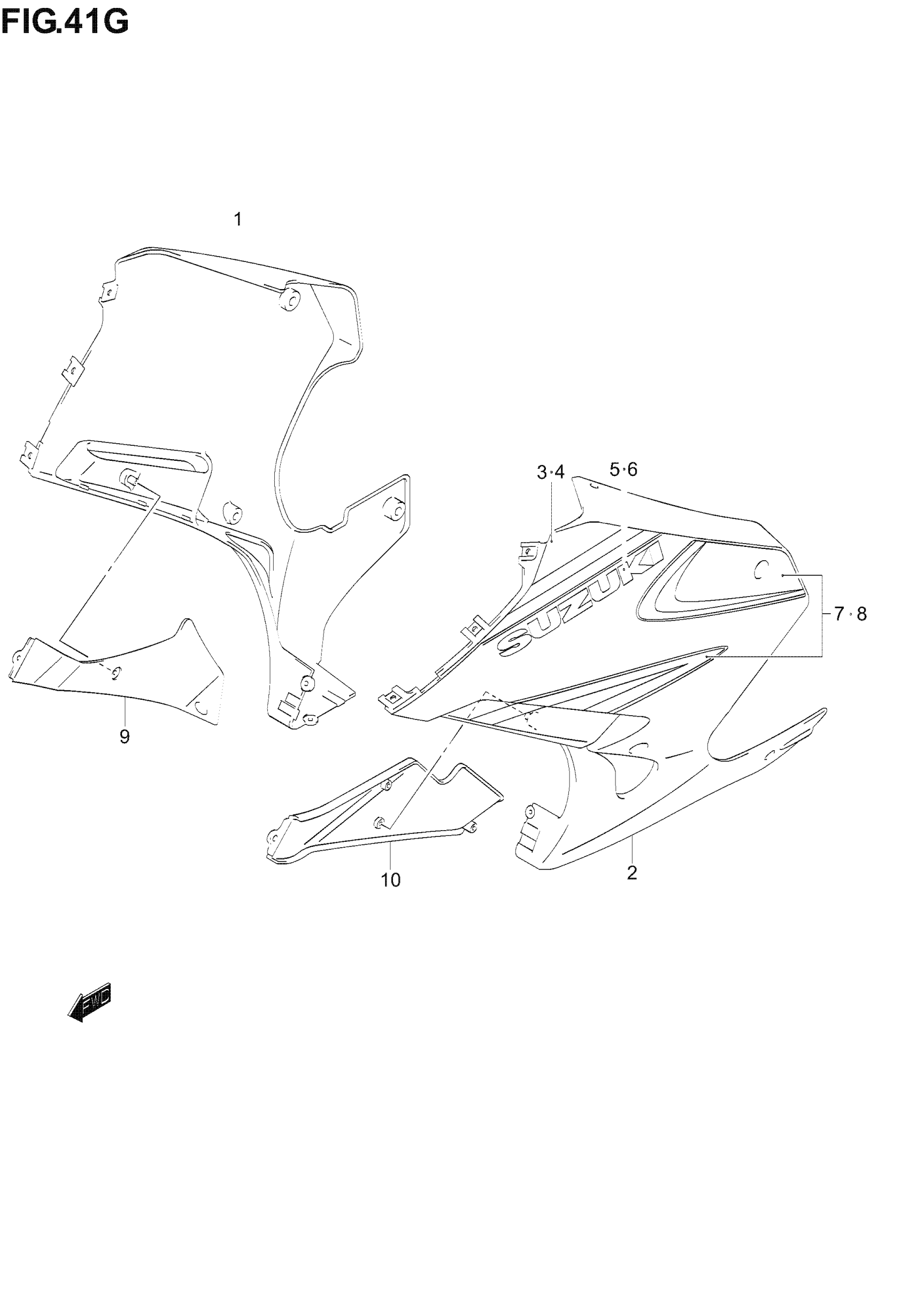

Suzuki GS500F (2006) UNDER COWLING (GS500FK6) Diagram

#

Description
Price

1

COWL, UNDER RH (WHITE) | FOR LR5

94471C0BE10JYBD

$405.01

1

COWL, UNDER RH (SILVER) | FOR FP2

94471C0BE10JYD8

Unavailable

2

COWL, UNDER LH (WHITE) | FOR LR5

94481C0BE10JYBD

$289.65

2

COWL, UNDER LH (SILVER) | FOR FP2

94481C0BE10JYD8

$454.77

3

TAPE, UPPER RH (BLACK)

68185-01DA0-291

Unavailable

4

TAPE, UPPER RH (BLACK)

68195-01DA0-291

Unavailable

5

EMBLEM SET This part replaces 68181-01DB0-35W.

68130-0BE20-FP2

Unavailable

6

EMBLEM SET This part replaces 68181-01DB0-35W.

68130-0BE20-FP2

Unavailable

7

EMBLEM ASSY | FOR LR5 This part replaces 68180-01DD0-LY6.

68130-0BE20-LR5

Unavailable

7

EMBLEM SET | FOR FP2 This part replaces 68180-01DD0-CYR.

68130-0BE20-FP2

Unavailable

8

EMBLEM ASSY | FOR LR5 This part replaces 68190-01DD0-LY6.

68130-0BE20-LR5

Unavailable

8

EMBLEM SET | FOR FP2 This part replaces 68190-01DD0-CYR.

68130-0BE20-FP2

Unavailable

9

COWL, INNER RH This part replaces 94461-01D00-NE2.

94461-01D00-291

Unavailable

10

COWL, INNER LH This part replaces 94462-01D00-NE2.

94462-01D00-291

Unavailable

11

SHIELD, UNDER COWL HEAT, RH | DRAWING NOT SHOWN

94472-01D00

Unavailable

12

SHIELD, UNDER COWL HEAT, LH | DRAWING NOT SHOWN

94482-01D00

$7.14

13

SHIELD, UNDER HEAT, RH | DRAWING NOT SHOWN

94473-01D00

$2.15

14

SHIELD, UNDDER HEAT, LH | DRAWING NOT SHOWN

94483-01D00

Unavailable
