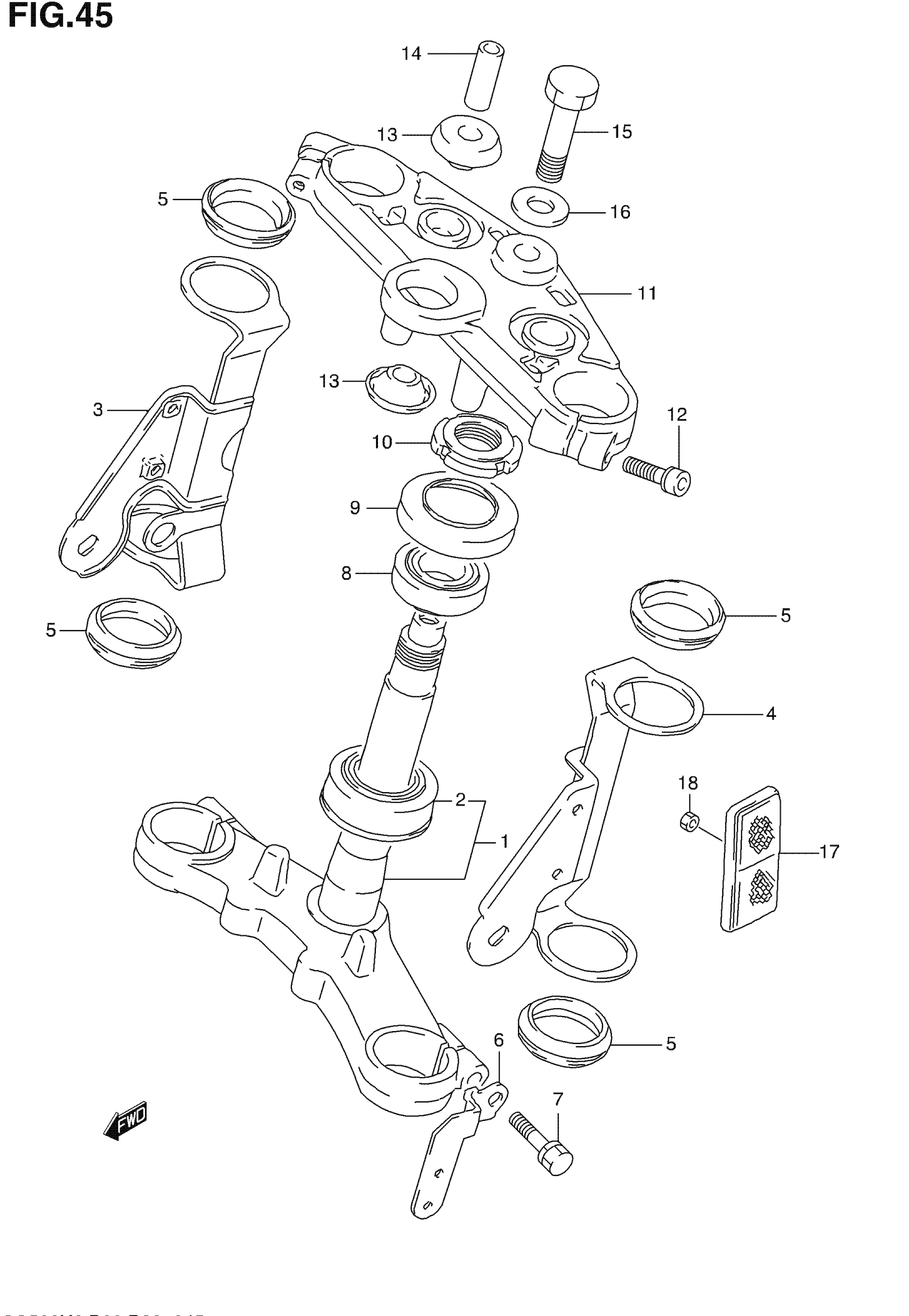

Suzuki GS500F (2006) STEERING STEM (NOT FOR U.S. MARKET) Diagram

#

Description
Price

1

STEM, STEERING | Includes Item(s) 2

51410-01D91

Unavailable

2

RT 30X55X17 BEA This part replaces 09265-30009.

09265-30034

$57.05

3

BRACKET, HEADLAMP RH This part replaces 51530-01D01-EE3.

51530-0BE00-ENM

Unavailable

4

BRACKET, HEADLAMP LH This part replaces 51540-01D01-EE3.

51540-0BE00-ENM

Unavailable

5

CUSHION, BRACKET

51553-34300

$4.52

6

BRACKET, REFLECTOR RH

35956-01D10

Unavailable

6

BRACKET, REFLECTOR LH

35957-01D10

Unavailable

7

BOLT, STEERING STEM

51352-01D00

Unavailable

8

BEARING (25X47X15)

09265-25019

$56.53

9

DUST SEAL

51643-49002

$12.32

10

NUT

51631-28000

$17.37

11

HEAD, STEERING STEM

51311-01D00

Unavailable

12

BOLT, STEERING DAMPER This part replaces 07130-08303.

07130-0830A

$1.74

13

CUSHION, STEM HEAD

56240-0BE00-E0Z

Unavailable

14

SPACER, STEM HEAD This part replaces 56243-0BE00.

56243-01D00

$9.42

15

BOLT, UPPER

51353-05C00

Unavailable

16

WASHER

51356-22012

$6.80

17

REFLEX REFLECTOR ASSY

35950-43431

$17.83

18

NUT This part replaces 08316-20053.

08316-2005A

$2.19
