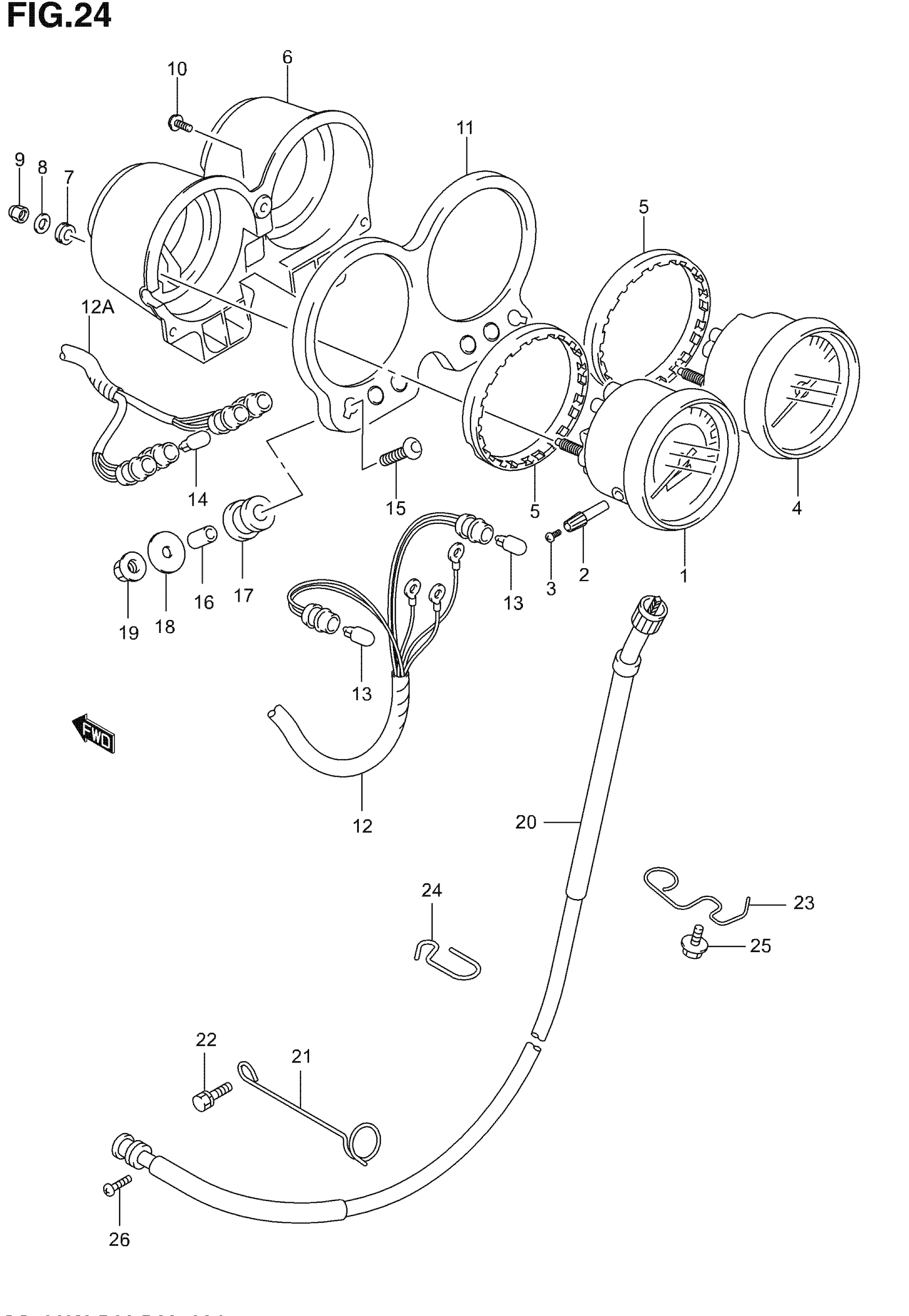

Suzuki GS500F (2006) SPEEDOMETER - TACHOMETER (NOT FOR U.S. MARKET) Diagram

#

Description
Price

1

SPEEDOMETER (MILE/KILO)

34110-01DB0

Unavailable

1

SPEEDOMETER (KILO) | E28

34110-01DA0

Unavailable

2

KNOB

34124-01DA0

$4.60

3

SCREW

09139-02003

$1.65

4

TACHOMETER

34210-01DA0

Unavailable

5

DAMPER This part replaces 34288-01DA0.

34288-01D20

$7.25

6

COVER

34193-01DA0

Unavailable

7

CUSHION

34189-01D20

$6.38

8

WASHER (5.2X16X1)

09160-05013

$1.49

9

NUT This part replaces 08313-10057.

08313-1005A

$1.93

10

SCREW This part replaces 02112-34083.

02112-3408A

$2.38

11

BRACKET, METER

34950-01DA0

Unavailable

12

SOCKET&CORD, SPEEDOMETER/TACHO

34170-01DB0

Unavailable

12A

SOCKET&CORD, PILOTS

34170-01DA0

Unavailable

13

BULB (12V, 1.7W) | FOR ILLUMI

09471-12077

$3.55

14

BULB (12V, 1.7W) | FOR HIGH BEAM/OIL/NEUTRAL/TURN

09471-12165

$3.51

15

BOLT (6X30)

09107-06003

$3.03

16

SPACER (6.5X10X16.5)

09180-06335

Unavailable

17

CUSHION

34956-31001

$4.37

18

WASHER (6.5X28X1.6)

09160-06136

$1.84

19

NUT This part replaces D8320-10065.

08310-0006A

$1.84

20

CABLE ASSY,SPEE This part replaces 34910-01D10.

34910-01D11

$37.75

21

GUIDE, CABLE NO.1

34938-45100

$6.57

22

BOLT This part replaces D1557-06125.

D1557-0616B

$1.49

23

GUIDE, CABLE NO.2

34938-01D01

Unavailable

24

GUIDE, CABLE NO.3

34938-01D10

Unavailable

25

BOLT This part replaces D1557-06125.

D1557-0616B

$1.49

26

.SCREW This part replaces 02112-05163.

02112-0516A

$1.49
