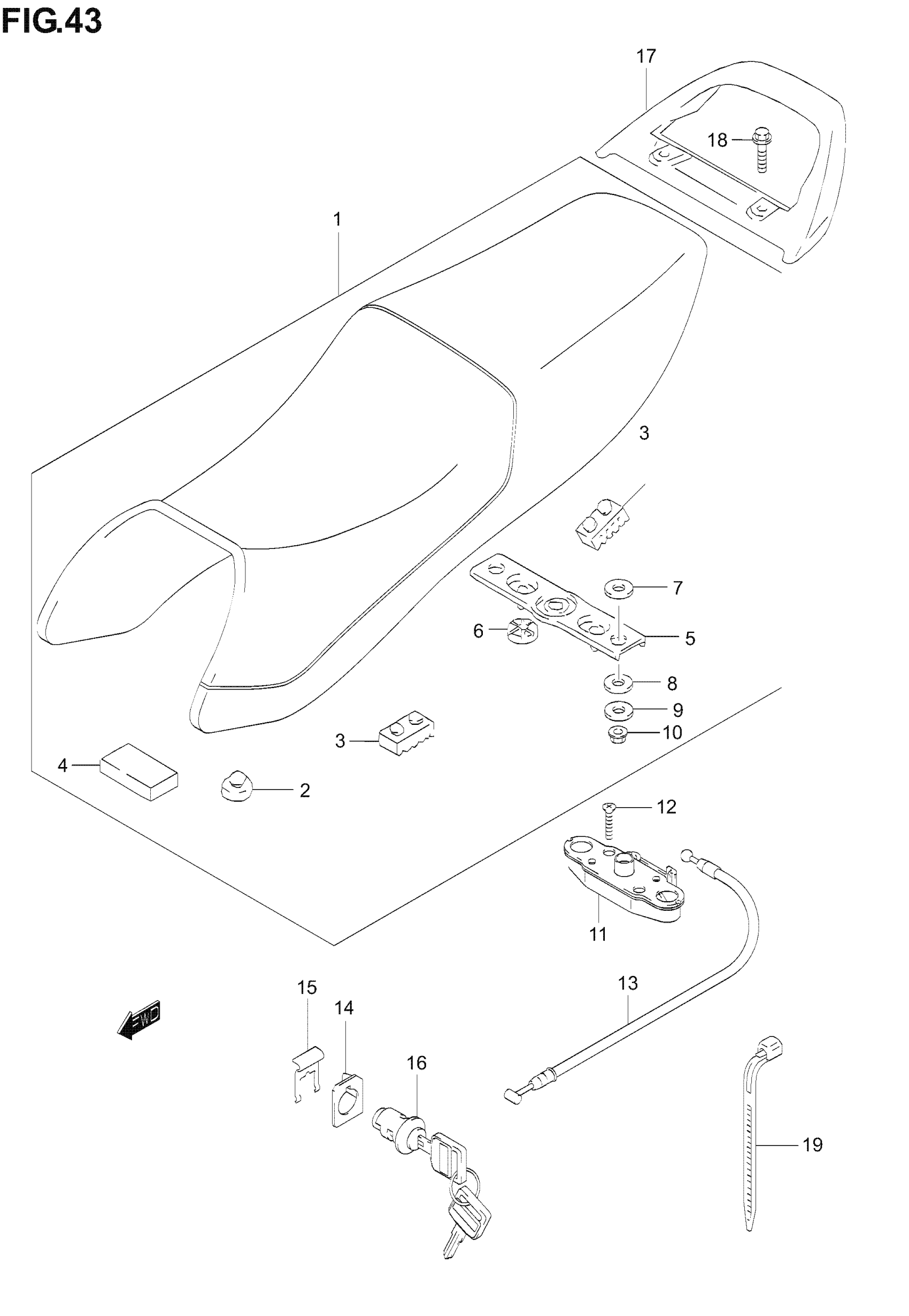

Suzuki GS500F (2006) SEAT Diagram

#

Description
Price

1

SEAT SET (BLACK) | Includes Item(s) 2 - 10

45100C01D20JFH4

Unavailable

2

CUSHION,SEAT This part replaces 45148-12FA0.

45148-36C01

$4.23

3

CUSHION, CENTER & REAR

45147-12FA0

$5.30

4

HOLDER, BATTERY STOP This part replaces 94982C29400J000.

94982-29400

$2.28

5

STRIKER, SEAT LOCK This part replaces 45215C22A00J000.

45215-22A00

$35.20

6

CUSHION, BOSS This part replaces 45213C13601J000.

45213-13601

$2.79

7

CUSHION, STRIKER UPPER This part replaces 45126C41B00J000.

45126-41B00

$2.38

8

CUSH10N, STRIKER LOWER This part replaces 45127C41B00J000.

45127-41B00

$2.38

9

WASHER

09689-06202

Unavailable

10

NUT This part replaces D8316-10065.

08310-0006A

$1.84

11

BRACKET, SEAT SUPPORT This part replaces 45220-0BE00.

45220-47H00

$138.38

12

BOLT (6X32.5) This part replaces D2116-06305.

09116-06148

$3.16

13

CABLE, SEAT LOCK This part replaces 45280C38400J000.

45280-38400

$11.63

14

GUIDE, SEAT LOCK CABLE

45288-14F00

$5.36

15

PLATE, SEAT LOCK ASSY

45289-11F00

$6.20

16

LOCK SET, SEAT

95700-14810

$107.30

17

HANDLE, PILLION RIDER (BLACK)

46211C01D00JETN

Unavailable

18

BOLT This part replaces 01550-08253.

01550-0825A

$2.32

19

NO DESCRIPTION AVAILABLE This part replaces D9448-01885.

D9448-02875

Unavailable
