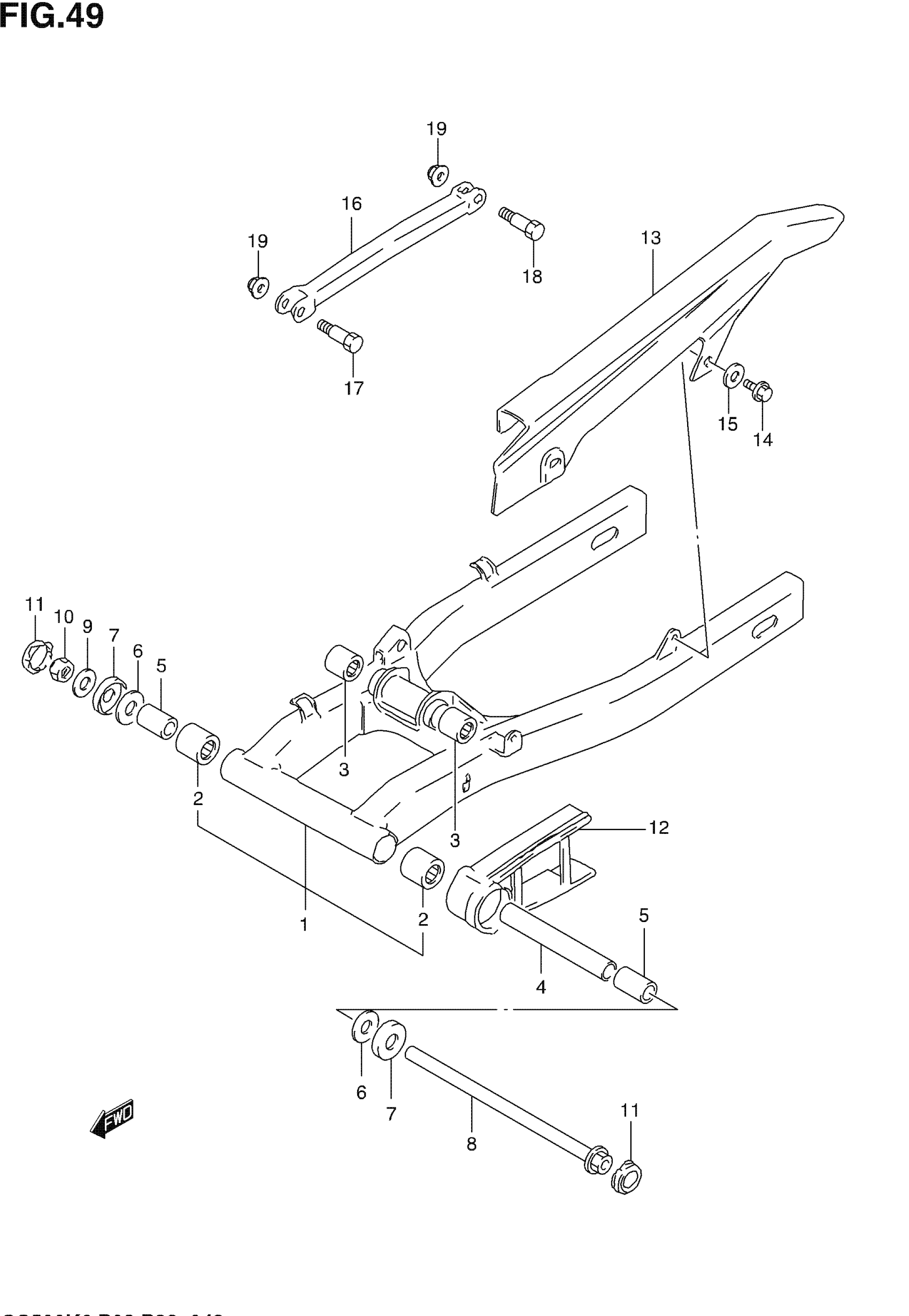

Suzuki GS500F (2006) REAR SWINGING ARM (NOT FOR U.S. MARKET) Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR (SILVE | Includes Item(s) 2 - 3

61000-01D10-YCH

Unavailable

2

BEARING, PIVOT (22X29X30)

09263-22017

$22.58

3

.BEARING (17X24X25) This part replaces 09263-17037.

09263-17053

$21.66

4

SPACER, CENTER This part replaces 61282C01D00J000.

61282-01D00

Unavailable

5

SPACER, PIVOT BEARING This part replaces 61251C45001J000.

61251-45001

$17.37

6

WASHER

09160-14020

$2.19

7

DUST SEAL, PIVOT SHAFT

61262-45002

$7.97

8

SHAFT, SWINGING ARM PIVOT

61211-30B00

Unavailable

9

WASHER

09160-14009

$2.82

10

NUT

09159-14019

$11.61

11

CAP, SWINGING ARM PIVOT

61222-48B00

$6.80

12

BUFFER,CHAIN TO This part replaces 61273-01D00.

61273-01D01

$32.85

13

CASE, CHAIN

61310C01D00J000

Unavailable

14

BOLT This part replaces D2116-06125.

01550-0610B

$2.42

15

WASHER

09169-06026

$2.20

16

TORQUE LINK, REAR (BLACK)

64310-01D02

Unavailable

17

BOLT, FRONT (10X41)

09111-10052

Unavailable

18

BOLT, REAR (10X34)

09100-10187

$3.85

19

NUT This part replaces 08319-31103.

08319-3110A

$2.73
