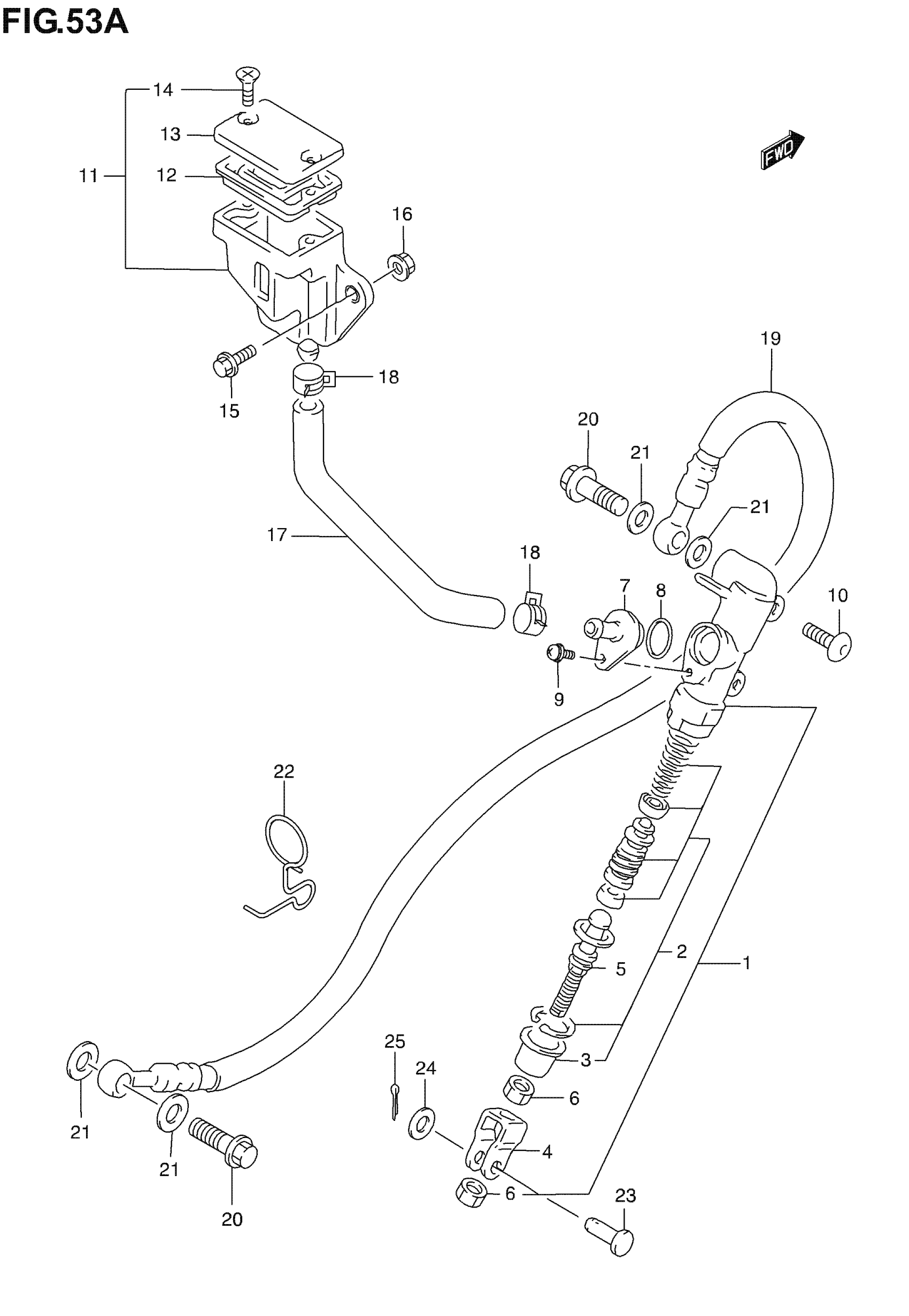

Suzuki GS500F (2006) REAR MASTER CYLINDER (MODEL K4/K5/K6) Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER | Includes Item(s) 2 - 9 This part replaces 69600-01DA0.

69600-01D00

Unavailable

2

CYLINDER ASSY, REAR MASTER This part replaces 69600-0BE00.

69600-01D00

Unavailable

3

BOOT

69691-0BE00

Unavailable

4

YOKE

69692-0BE00

Unavailable

5

ROD, PUSH

69670-0BE00

Unavailable

6

NUT

69693-0BE00

Unavailable

7

CONNECTOR

69672-0BE00

Unavailable

8

O RING

69686-0BE00

Unavailable

9

SCREW

02112-0BE00

Unavailable

10

SCREW (6X25)

09139-06057

$2.80

11

TANK ASSY,RR RESERVOIR | Includes Item(s) 12 - 14 This part replaces 69740-01DA0.

69740-01D02

$70.49

12

DIAPHRAGM This part replaces 59667-0BE00.

59667-04700

$9.78

13

CAP This part replaces 59669-0BE00.

59669-05D00

$16.76

14

SCREW This part replaces 69689-0BE00.

69689-04A00

$1.78

15

BOLT This part replaces D1557-06165.

D1557-0616B

$1.49

16

NUT This part replaces D8320-10065.

08310-0006A

$1.84

17

HOSE, RESERVOIR

69731-01D02

Unavailable

18

CLAMP

09401-13417

$2.26

19

HOSE, REAR BRAKE This part replaces 69480-01DA0.

69480-01D10

Unavailable

20

UNION This part replaces 09360-10041.

09360-10061

$6.43

21

WASHER (10X15X1.5) This part replaces 09161C10009J000.

09161-10009

$1.84

22

GUIDE, BRAKE HOSE

69243-01D20

Unavailable

23

PIN (6X18.2) This part replaces 09200-06037.

09200-06068

$4.11

24

WASHER

D8322-01065

Unavailable

25

PIN, COTTER

D4111-20158

Unavailable
