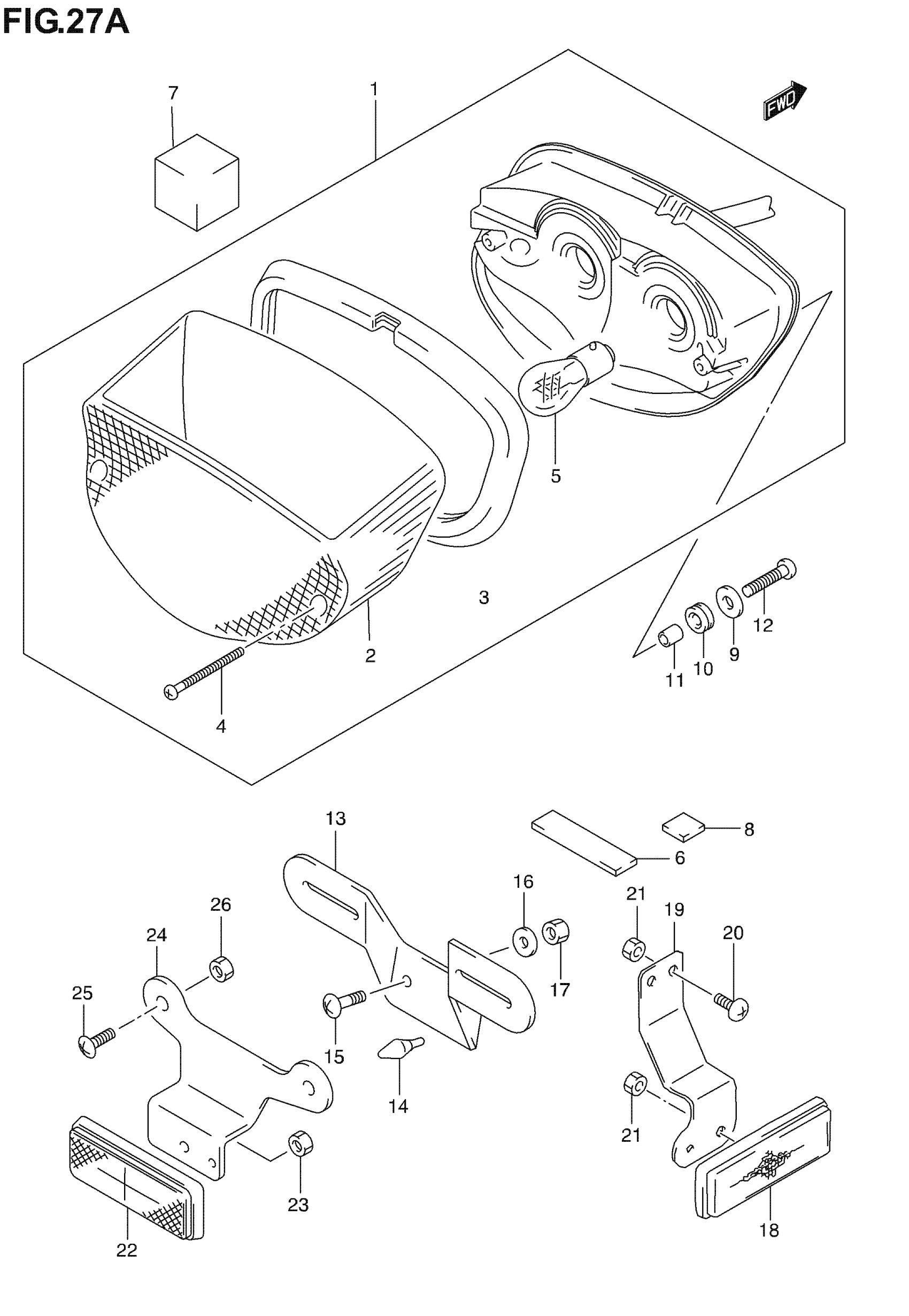

Suzuki GS500F (2006) REAR COMBINATION LAMP (MODEL K4/K5/K6) Diagram

#

Description
Price

1

LAMP ASSY, REAR COMBINATION | Includes Item(s) 2 - 5

35710-01D30

Unavailable

2

LENS

35712-01D20

Unavailable

3

GASKET, LENS

35713-01D20

Unavailable

4

SCREW

03511-04403

Unavailable

5

BULB (12V,32/3CP)

09471-12204

$12.22

6

CUSHION (80X20X10) This part replaces 33652C01D10J000.

33652-01D10

$5.17

7

CUSHION, UPPER (40X40X38) This part replaces 33652C01D20J000.

33652-01D20

$5.67

8

CUSHION, LOWER (40X120X6) This part replaces 33652C09400J000.

33652-06C00

$4.17

9

WASHER This part replaces D8322-91065.

D8322-9106B

Unavailable

10

CUSHION

09320-09009

$4.64

11

SPACER (6.5X9X8.5)

09180-06262

$2.55

12

SCREW

D2116-06205

Unavailable

13

BRACKET, LICENSE PLATE

35927-01D30

Unavailable

14

CUSHION

09321-06026

$2.92

15

SCREW This part replaces D2116-06165.

D1507-0616B

$1.49

16

WASHER This part replaces D8322-91065.

D8322-9106B

Unavailable

17

NUT This part replaces D8310-00065.

08319-31067

$2.03

18

REFLEX REFLECTOR, REAR SIDE

35970-24D60

$25.98

19

BRACKET, REAR SIDE RR

35977-01D11

$5.44

20

.SCREW This part replaces 02142-05123.

02142-0512A

$1.49

21

NUT This part replaces 08310-00053.

08310-0005A

$1.84

22

REFLECTOR ASSY, RR SIDE This part replaces 35970-09EF0.

35970-07F01

$20.88

23

NUT

D8310-00055

Unavailable

24

BRACKET, REAR REFLEX REFLECTOR

35974-01D00

Unavailable

25

BOLT This part replaces D2116-06125.

01550-0610B

$2.42

26

NUT This part replaces D8310-00065.

08319-31067

$2.03
