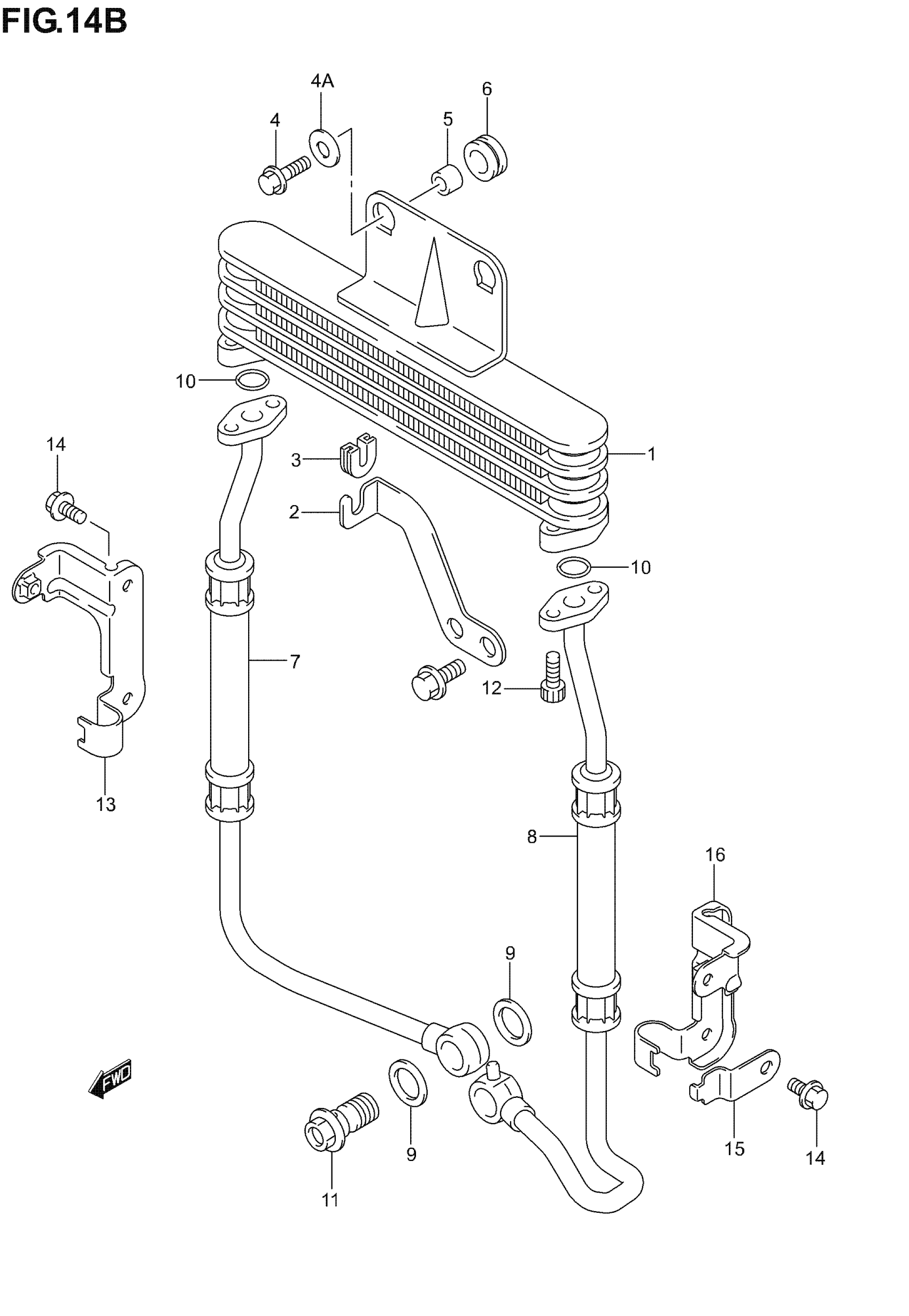

Suzuki GS500F (2006) OIL COOLER (GS500F) Diagram

#

Description
Price

1

COOLER ASY, OIL

16600-01D01

Unavailable

2

BRACKET, OIL COOLER

16621-0BE00-E0N

Unavailable

3

CUSHION, OIL COOLER This part replaces 16628C27A00J000.

16628-27A00

$2.92

4

BOLT This part replaces D1507-06205.

D1507-0620A

Unavailable

4A

WASHER This part replaces D8322-91065.

D8322-9106B

Unavailable

5

SPACER (6.5X10X10) This part replaces 09180C06310J000.

09180-06310

$1.91

6

CUSHION

09320-10501

$6.23

7

HOSE, OIL COOLER RH

16460-01D00

Unavailable

8

HOSE, OIL COOLER LH

16470-01D00

Unavailable

9

.GASKET (14X20X1.5)

09168-14015

$2.03

10

O RING, OIL GALLERY This part replaces 09280-12005.

09280-12012

$4.64

11

BOLT (16X32)

09360-14012

$10.86

12

BOLT This part replaces D7107-06165.

D7107-0616B

$1.49

13

CLAMP, OIL HOSE RH

16480-01D00-E0N

$7.13

14

BOLT This part replaces D1557-06125.

D1557-0616B

$1.49

15

GUIDE, OIL HOSE

16492-01D00-E0N

Unavailable

16

CLAMP, OIL HOSE LH

16490-01D00-E0N

$7.13
