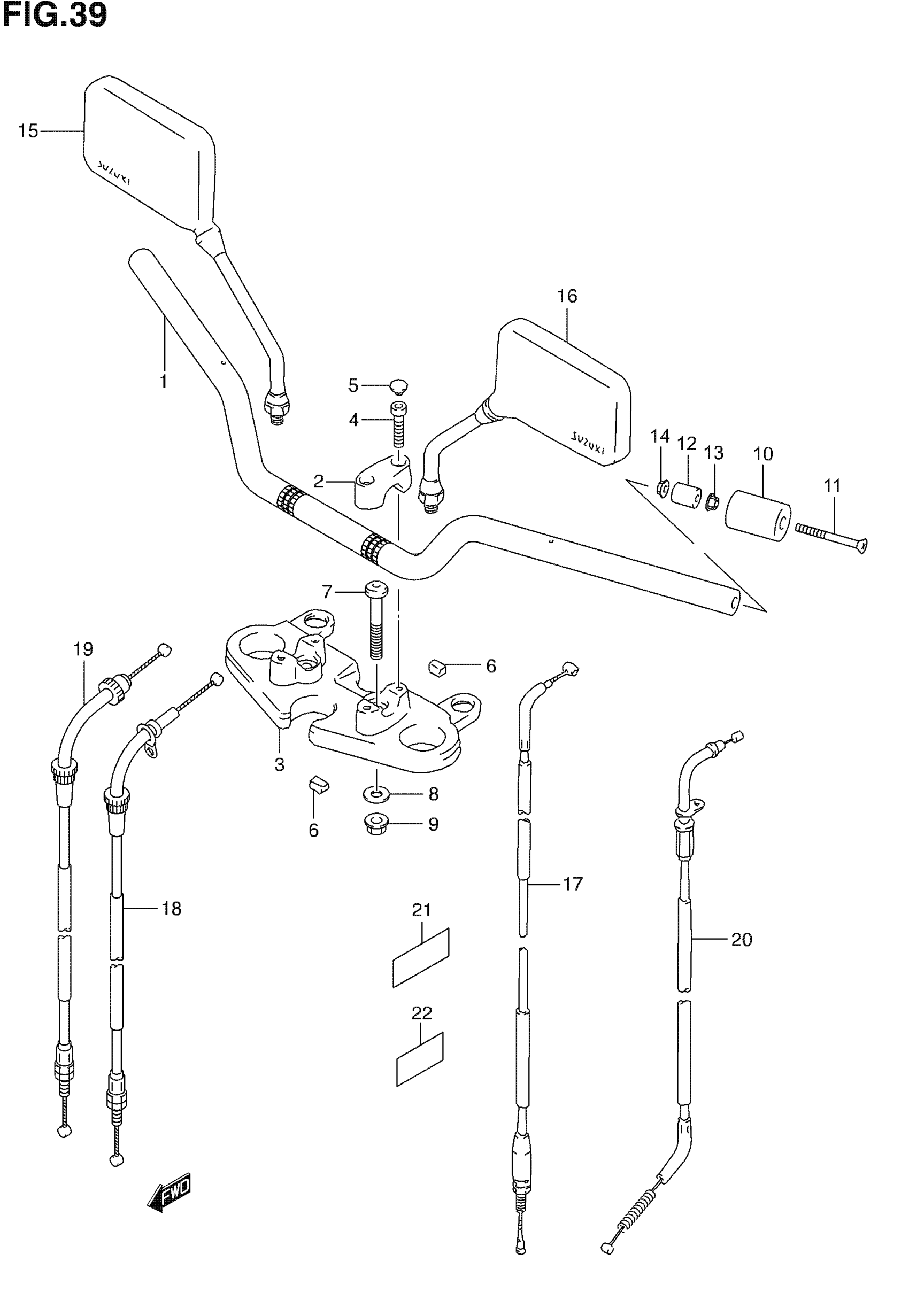

Suzuki GS500F (2006) HANDLEBAR (NOT FOR U.S. MARKET) Diagram

#

Description
Price

1

HANDLEBAR

56111-01DB0

Unavailable

2

CLAMP, UPPER (SILVER)

56211-31F00-0FP

Unavailable

3

HOLDER, LOWER (SILVER)

56221-01D50-0FP

Unavailable

4

BOLT

D7109-08307

$1.22

5

CAP

09250-06011

$2.53

6

CUSHION, HOLDER

56241-01D00

Unavailable

7

BOLT This part replaces 07130-10653.

07130-1065B

$6.22

8

WASHER

D8322-91105

Unavailable

9

NUT This part replaces 08319-31108.

08319-31107

$2.73

10

BALANCER SET,HA This part replaces 56278-04F00.

56200-01841

$64.25

11

SCREW This part replaces 02122-06853.

02122-0685B

$3.42

12

EXPANDER

56272-44500

$4.16

13

NUT This part replaces 08316-10083.

08316-1008B

$2.65

14

NUT, INNER

09159-06024

$2.12

15

MIRROR ASSY, REAR VIEW RH This part replaces 56500-03F30.

56500-03F31

$178.73

16

MIRROR ASSY, REAR VIEW LH This part replaces 56600-03F30.

56600-03F31

Unavailable

17

CABLE ASSY,CLUT This part replaces 58200-01DA0.

58200-01DA1

$21.03

18

CABLE ASSY, THROTTLE NO.1

58300-01DA0

$44.23

19

CABLE ASSY, THROTTLE NO.2

58300-01DB0

$41.08

20

CABLE, STARTER

58410-01D70

$47.21

21

PROTECTOR (30X70) This part replaces 94474C22D00J000.

94474-22D00

Unavailable

22

PROTECTOR, CABLE This part replaces 72895C78A30J000.

72895-78A30

Unavailable
