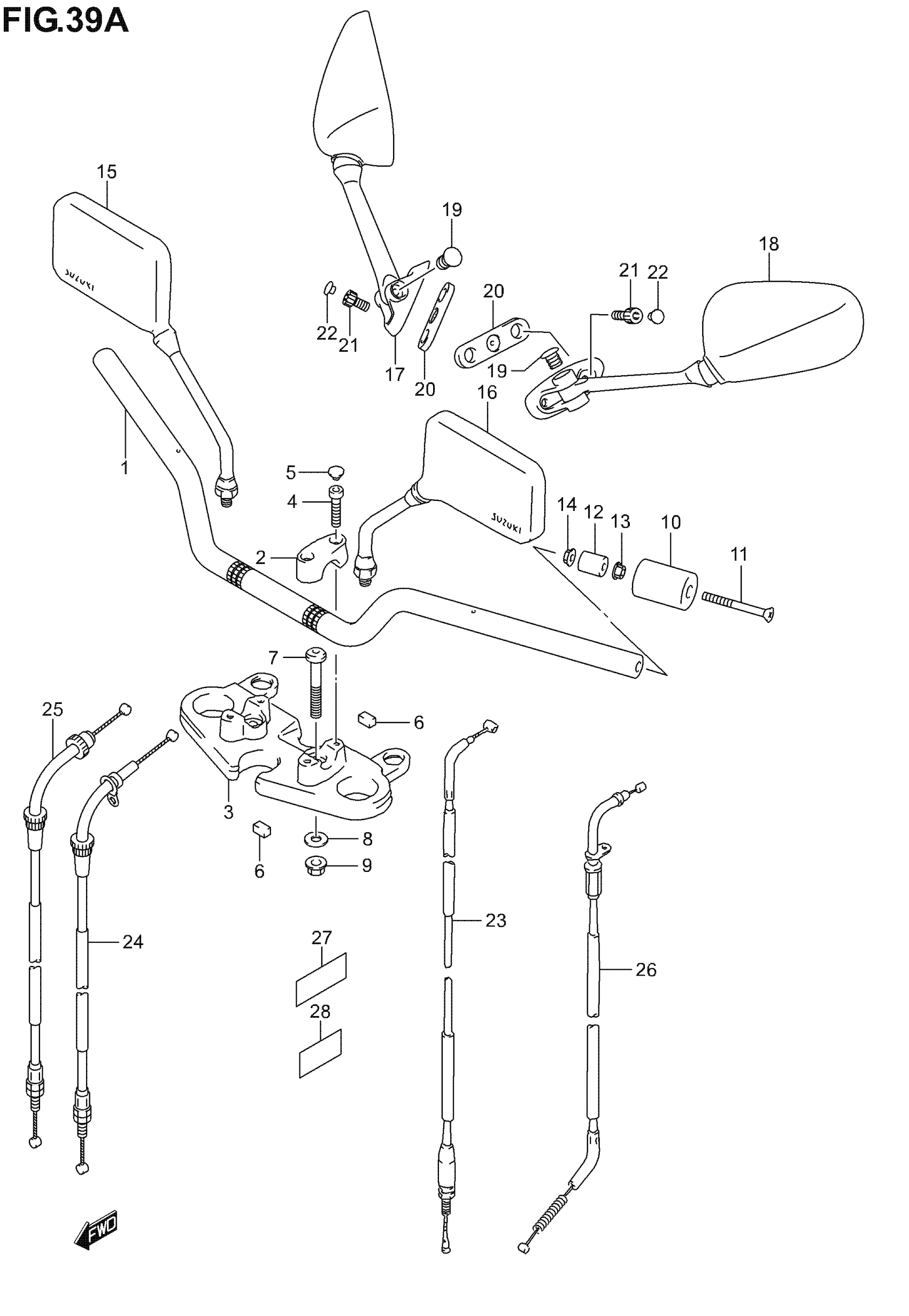

Suzuki GS500F (2006) HANDLEBAR (MODEL K4/K5/K6) Diagram

#

Description
Price

1

HANDLEBAR

56111-01DC0-ETN

$64.79

2

CLAMP, UPPER (SILVER)

56211-0BE00

Unavailable

3

CLAMP, LOWER (SILVER)

56221-0BE00

Unavailable

4

BOLT

D7109-08307

$1.49

5

CAP

09250-06011

$2.50

6

CUSHION, HOLDER

56241-01D00

Unavailable

7

BOLT This part replaces 07130-10653.

07130-1065B

$5.55

8

WASHER

D8322-91105

Unavailable

9

NUT This part replaces 08319-31108.

08319-31107

$2.73

10

BALANCER SET,HA This part replaces 56278-04F00.

56200-01841

$56.93

11

SCREW This part replaces 02122-06853.

02122-0685B

$3.15

12

EXPANDER

56272-44500

$4.42

13

NUT This part replaces 08316-10083.

08316-1008B

$2.66

14

NUT

09159-06024

$2.11

15

MIRROR ASSY, REAR VIEW RH | NOT FOR U.S. MARKET This part replaces 56500-03F30.

56500-03F31

$159.13

16

MIRROR ASSY, REAR VIEW LH | NOT FOR U.S. MARKET This part replaces 56600-03F30.

56600-03F31

Unavailable

17

MIRROR ASSY, REAR VIEW RH | GS500F

56500-01DA0

$186.39

18

MIRROR ASSY, REAR VIEW LH | GS500F

56600-01DA0

$186.39

19

CAP | GS500F This part replaces 09250-09001.

09250-09008

$1.54

20

CUSHION | GS500F

94576-24F00

$6.52

21

BOLT | GS500F This part replaces D7107-06165.

D7107-0616B

$1.49

22

CAP, BOLT | GS500F

09250-05009

$2.19

23

CABLE ASSY,CLUT This part replaces 58200-01DA0.

58200-01DA1

$22.33

24

CABLE ASSY, THROTTLE NO.1

58300-01DA0

$39.20

25

CABLE ASSY, THROTTLE NO.2

58300-01DB0

$36.40

26

CABLE, STARTER

58410-01D70

$41.83

27

PROTECTOR (30X70) This part replaces 94474C22D00J000.

94474-22D00

Unavailable

28

PROTECTOR, CABLE This part replaces 72895C78A30J000.

72895-78A30

Unavailable
