Description

Price

1

GRIP, THROTTLE This part replaces 57110-07E01.

57110-22D03

$29.21

2

LEVER ASSY, BRAKE | MODEL K4/K5/K6 This part replaces 57420-0AE00.

57300-33E01

$48.61

3

BOLT, PIVOT | MODEL K4/K5/K6

57431-0AE00

$2.78

4

NUT | MODEL K4/K5/K6 This part replaces D8316-10065.

08310-0006A

$1.84

5

SWITCH ASSY,FR BRAKE | MODEL K4/K5/K6; Includes Item(s) 6 This part replaces 57460-17C01.

57460-14J02

$38.46

6

SCREW

57465-17C00

$2.19

7

GRIP, LH (BLACK) This part replaces 57211-07E00.

57211-22D02-291

$14.55

8

LEVER ASSY,CLUT | Includes Item(s) 9 - 14 This part replaces 57500-01D01.

57500-29B10

Unavailable

9

LEVER, CLUTCH

57620-01D00

Unavailable

10

BOLT

57531-14A00

$7.46

11

.NUT This part replaces 08319-21063.

08319-2106B

$2.32

12

ADJUSTER

57441-11010

$5.62

13

NUT

57442-11010

$2.79

14

..BOLT This part replaces 01547-06203.

01547-0620B

$2.45

15

COVER, CLUTCH LEVER

57661-33400

$8.12

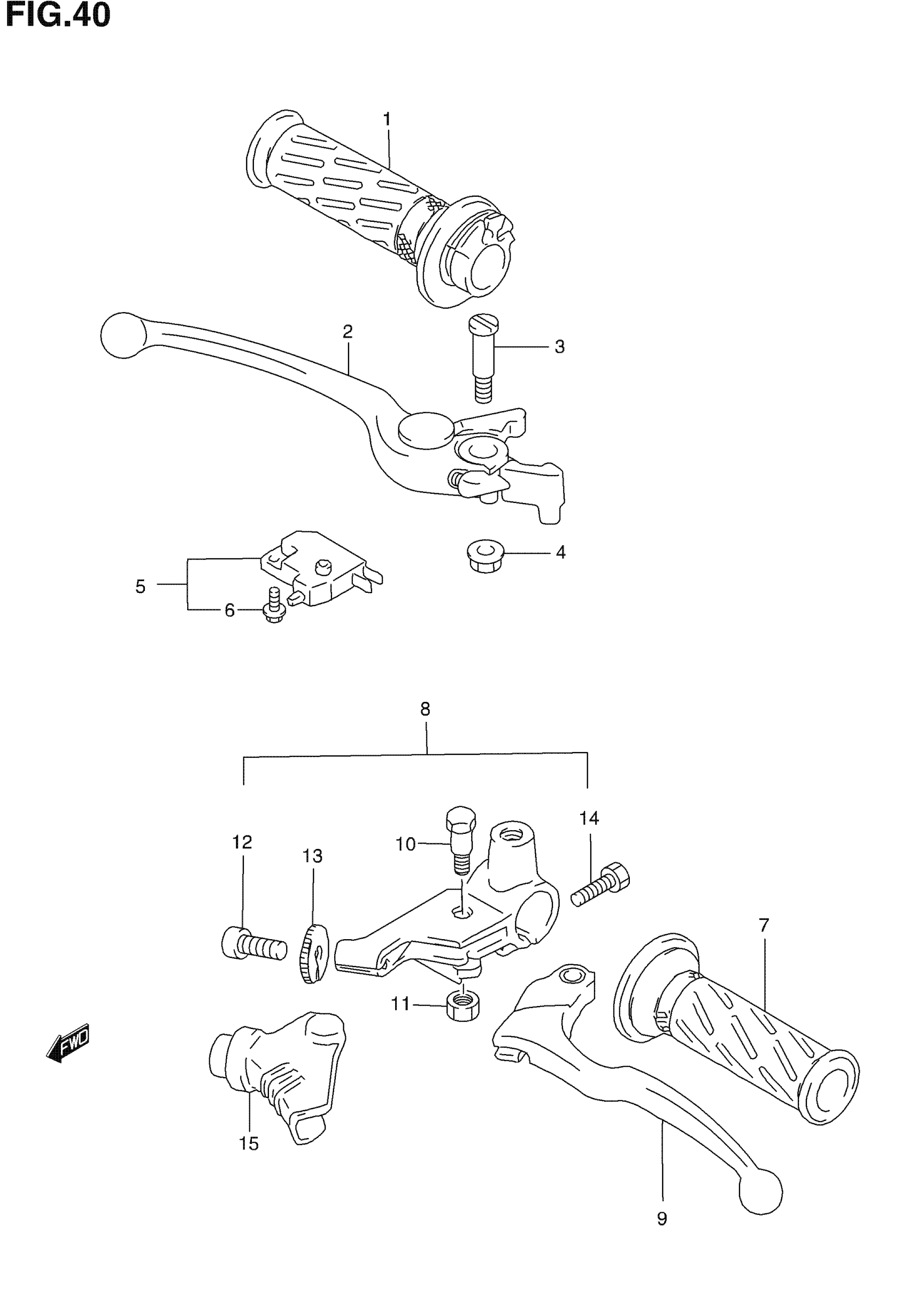

Suzuki GS500F (2006) HANDLE LEVER Diagram
