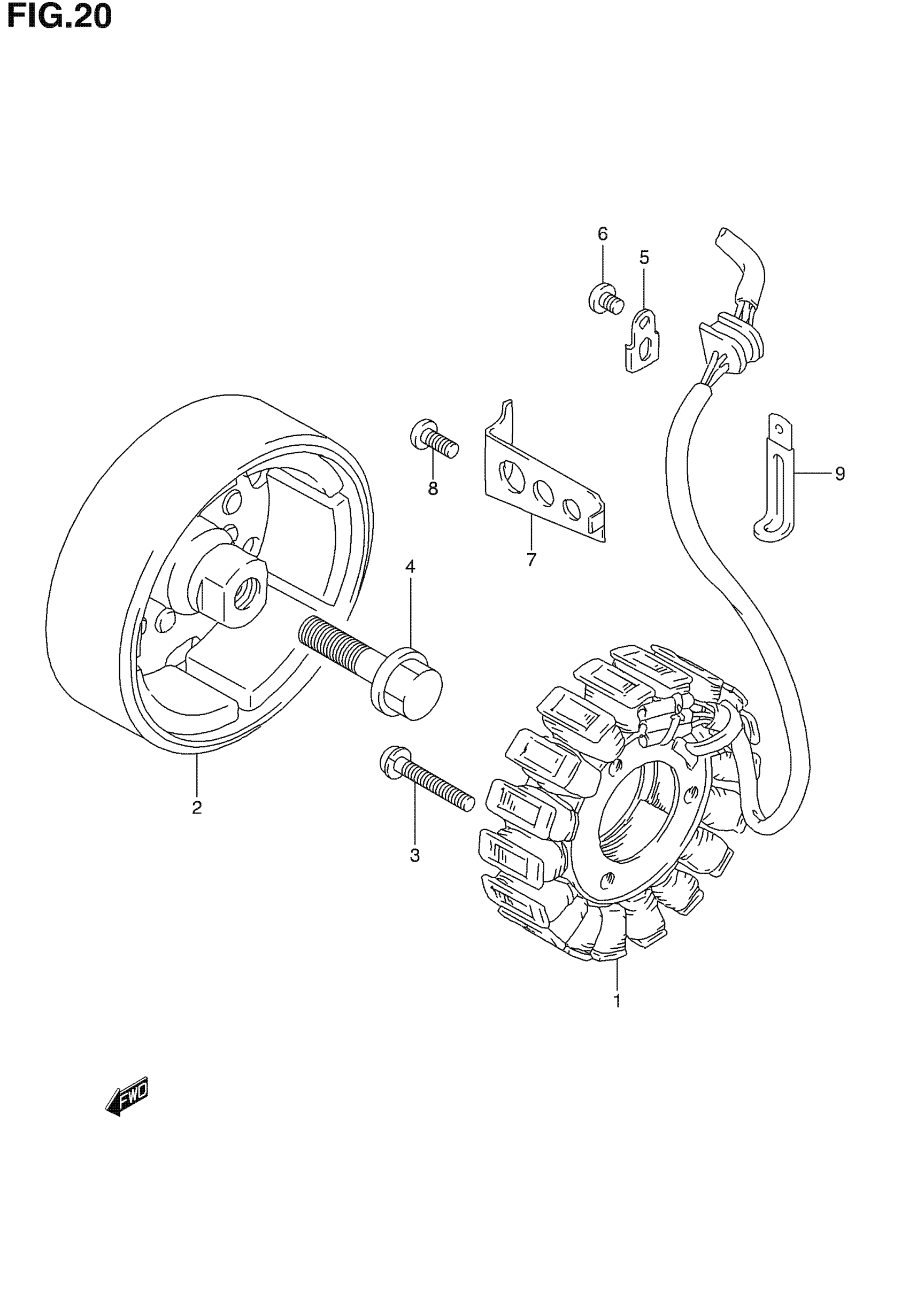

Suzuki GS500F (2006) GENERATOR Diagram

#

Description

Price

1

STATOR ASSY

31401-01D10

$349.37

2

ROTOR ASSY This part replaces 31402-01D00.

31402-01D01

$402.22

3

SCREW This part replaces 02112-35303.

02112-3530A

$2.83

4

BOLT (12X60)

09103-12004

$4.00

5

CLAMP

31497-45000

$1.92

6

SCREW This part replaces 02112-05083.

02112-0508A

$1.49

7

CLAMP

31498-45000

$2.15

8

SCREW This part replaces 02112-06103.

02112-0610B

$1.84

9

CLAMP (L:45)

09404-06429

$1.83
