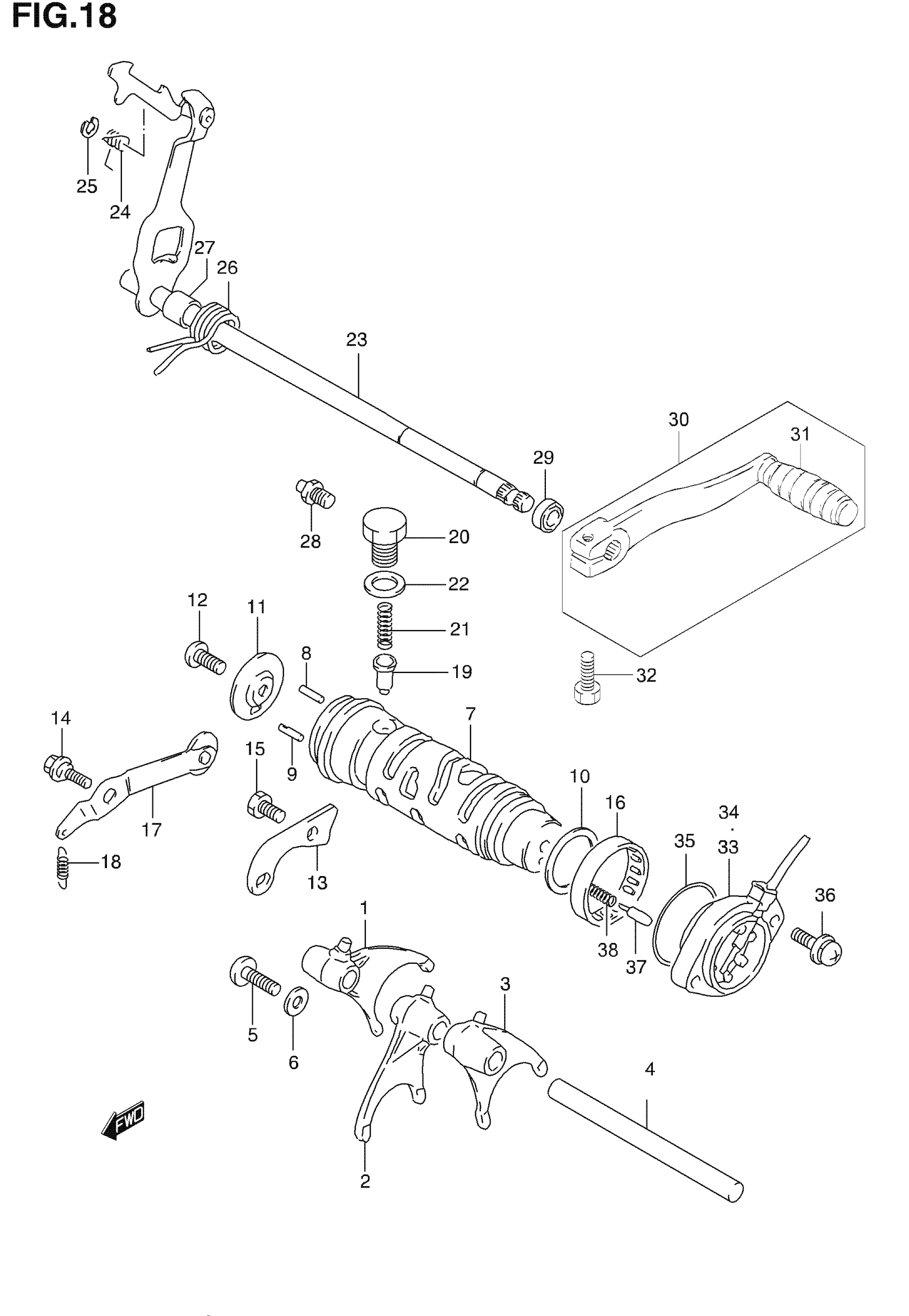

Suzuki GS500F (2006) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFTING NO.1

25211-44001

Unavailable

2

FORK, GEAR SHIFTING NO.2

25221-44001

Unavailable

3

FORK, GEAR SHIFTING NO.3

25231-44000

Unavailable

4

SHAFT, GEAR SHIFTING FORK

25411-18900

$23.07

5

SCREW

09125-06115

Unavailable

6

WASHER

08211-06141

$1.59

7

CAM, GEAR SHIFTING

25311-01D00

Unavailable

8

PIN

09261-04001

$1.72

9

PIN

09209-04013

Unavailable

10

WASHER (26X32.5X0.3)

09181-26001

Unavailable

11

HOLDER, DRIVE PIN

25322-44000

Unavailable

12

SCREW This part replaces 02112-06163.

02112-0616A

$1.49

13

GUIDE, CAM

25341-33300

Unavailable

14

BOLT

09111-06054

$3.70

15

BOLT (6X16)

09103-06240

$3.08

16

BEARING (40X47X12)

09263-40001

$29.53

17

STOPPER, CAM NO.1

25350-44000

Unavailable

18

SPRING

09443-09007

$2.56

19

STOPPER, GEAR SHIFT CAM NO.2

25351-30010

$11.95

20

HOLDER, SPRING

25354-30000

$9.17

21

SPRING

09440-06020

$1.79

22

GASKET

09168-14002

$2.26

23

SHAFT, GEAR SHIFTING

25510-44100

Unavailable

24

SPRING

09448-13008

$3.74

25

E RING This part replaces 08332-11073.

08332-1107A

$1.78

26

SPRING

09444-26013

$3.10

27

SPACER (12X20X15.3)

09180-12068

$3.16

28

STOPPER

25671-01011

$4.48

29

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

30

LEVER ASSY, GEAR SHIFTING | Includes Item(s) 31

25600-01D02

$63.90

31

RUBBER

25652-20C00

$5.44

32

BOLT This part replaces D1507-06205.

D1507-0620A

Unavailable

33

BASE ASSY, GEAR SHIFT TERM | NOT FOR U.S. MARKET

37720-47D00

$114.08

34

BASE ASSY, GEAR SHIFT TERM | MODEL K4/K5/K6

37720-01D00

Unavailable

35

O RING (D:2.4, ID:25.7)

09280-26007

$6.52

36

SCREW This part replaces 02112-75203.

02112-7520A

$2.90

37

CONTACT

09209-05011

$2.20

38

SPRING

09440-04010

$1.54
