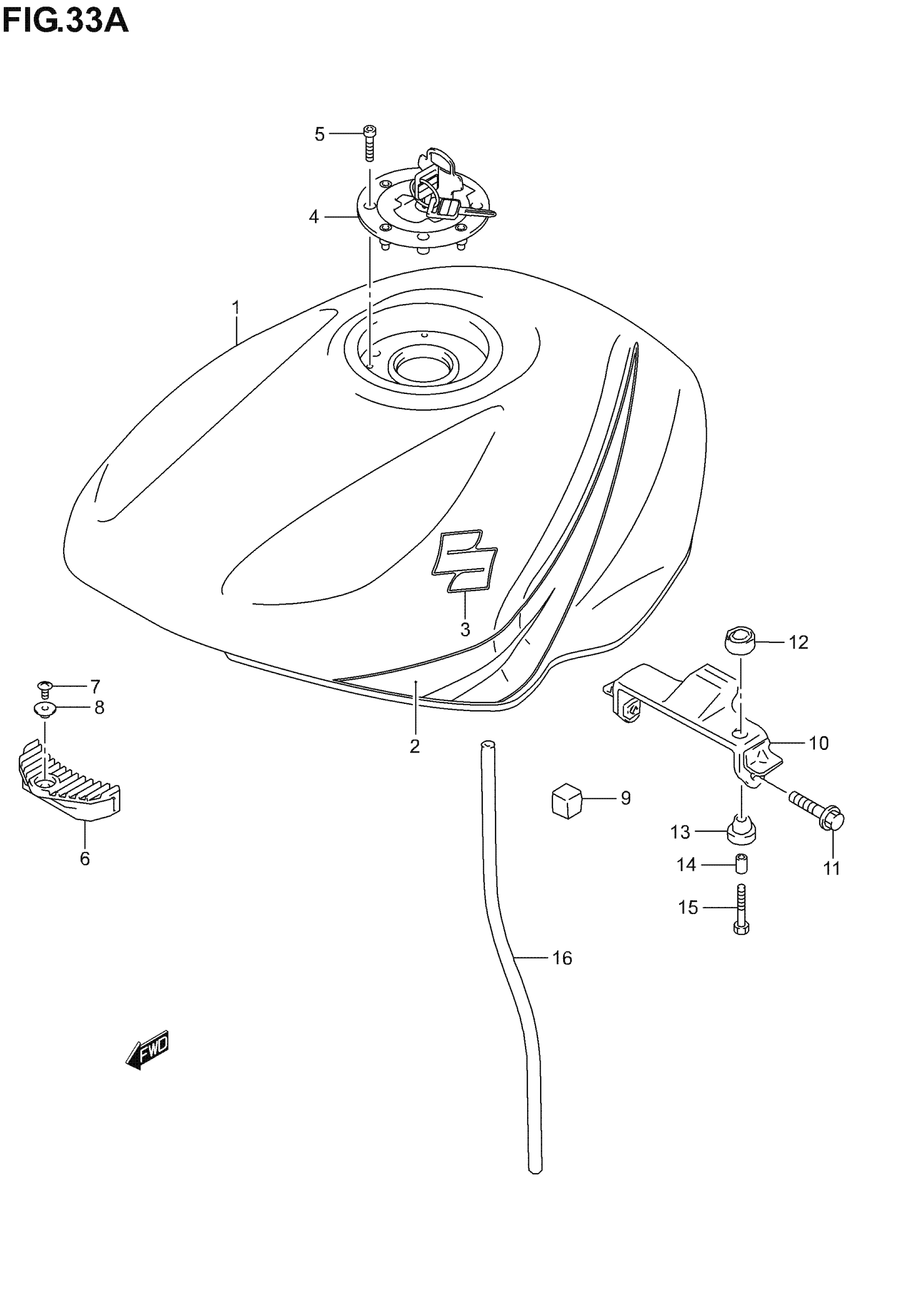

Suzuki GS500F (2006) FUEL TANK (MODEL K4) Diagram

#

Description
Price

1

TANK ASSY, FUEL (BLUE) | E3, E28

49100-01D00-YC2

Unavailable

1

TANK ASSY, FUEL (BLACK) | E3, E28

49100-01D00-Y7L

Unavailable

1

TANK ASSY, FUEL (YELLOW) | GS500F E3, E28

49100-01D00-Y9H

Unavailable

1

TANK ASSY, FUEL (BLUE) | E33

49100-01D20-YC2

Unavailable

1

TANK ASSY, FUEL (BLACK) | E33

49100-01D20-Y7L

Unavailable

1

TANK ASSY, FUEL (YELLOW) | E33; Includes Item(s) 2 - 3

49100-01D20-Y9H

Unavailable

2

TAPE SET | FOR YC2

68110-01DB0-MG4

Unavailable

2

TAPE SET | FOR Y7L

68110-01DB0-AMF

Unavailable

2

TAPE SET | FOR Y9H

68110-01DB0-FT6

Unavailable

3

EMBLEM,FUEL TAN | FOR YC2 This part replaces 68111-18G00-CS4.

68111-18G01-0AT

$14.26

3

EMBLEM,FUEL TAN | FOR Y7L This part replaces 68111-18G00-M6U.

68111-18G01-0AT

$14.26

3

EMBLEM | FOR Y9H

68111-18G00-ASK

Unavailable

4

CAP SET,FUEL TA | E3, E28 This part replaces 44201-33820.

44201-33822

$152.27

4

CAP SET,FUEL TA | E33 This part replaces 44200-33890.

44200-33891

$252.70

5

BOLT

09106-05017

$2.83

6

CUSHION, FRONT

44511-27E00

$12.48

7

SCREW

D2116-05105

Unavailable

8

WASHER

09169-05012

$2.38

9

CUSHION,FUEL TA This part replaces 44541-01D00.

44541-01D01

$5.19

10

BRACKET, REAR This part replaces 44550-0BE00.

44550-01D01

$48.38

11

BOLT This part replaces 01551-08403.

01551-0840B

$3.29

12

CUSHION, REAR UPPER

09320-14017

$2.35

13

CUSHION, REAR LOWER

09320-10038

$2.61

14

SPACER

09180-06271

$2.35

15

BOLT

09116-06172

$2.50

16

HOSE,WATER DRAI This part replaces 44423C0BE00J000.

44423-01D01

$15.80
