2006 Suzuki GS500F Fuel Cock Diagram

← All diagrams

Find the part on the Fuel Cock diagram for your 2006 Suzuki GS500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

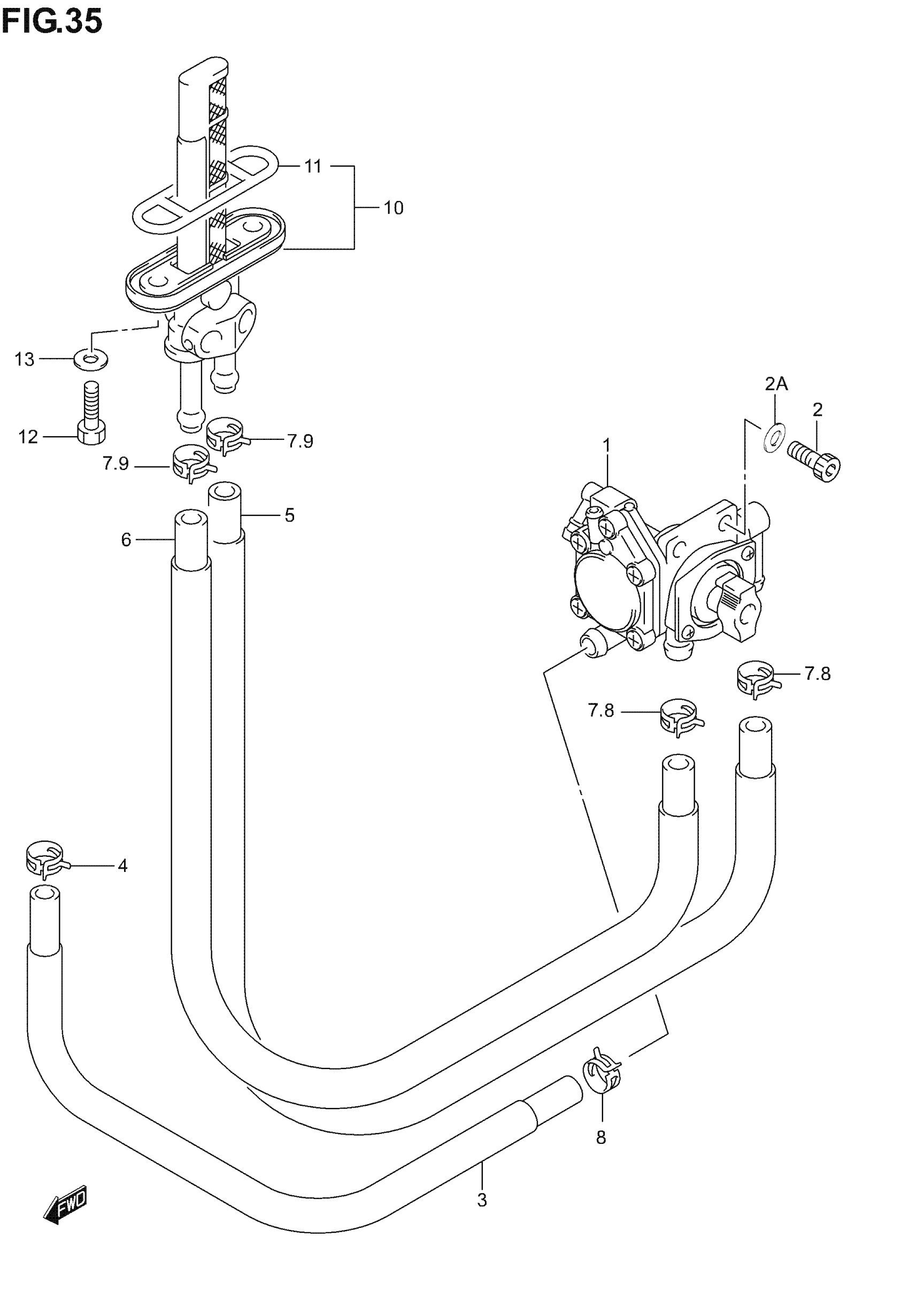

2006 Suzuki GS500F Fuel Cock Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COCK ASSY,FUEL | MODEL K4/K5/K6 This part replaces 44300C01D40J000.

44300-01D41

1
Out of stock

2

BOLT

D7107-06125

2
Out of stock

2A

WASHER

D8322-01065

2
Out of stock

3

HOSE,FUEL | MODEL K4/K5/K6 This part replaces 44443C01D30J000.

44443-01DR0

1
Out of stock

4

CLIP This part replaces 09401-11407.

09401-11415

1
Out of stock

5

HOSE,FUEL RESER | MODEL K4/K5/K6 This part replaces 44442C01D30J000.

44442-01DR0

1
Out of stock

6

HOSE,FUEL ON | MODEL K4/K5/K6 This part replaces 44441C01D30J000.

44441-01DR0

1
Out of stock

7

CLIP (ID:10.5,H:8) | NOT FOR U.S. MARKET

09401-10409

4
Out of stock

8

CLIP | MODEL K4/K5/K6

09401-13417

3
Out of stock

9

CLIP (ID:10.5,H:8) | MODEL K4/K5/K6

09401-10409

2
Out of stock

10

COCK ASSY,FUEL | Includes Item(s) 11 This part replaces 44300-01D10.

44300-01D11

1
Out of stock

11

FUEL COCK O RIN This part replaces 44348-28070.

44348-28071

1
Out of stock

12

BOLT, UNIT

09128-06086

2
Out of stock

13

GASKET

09168-06026

2
Out of stock
