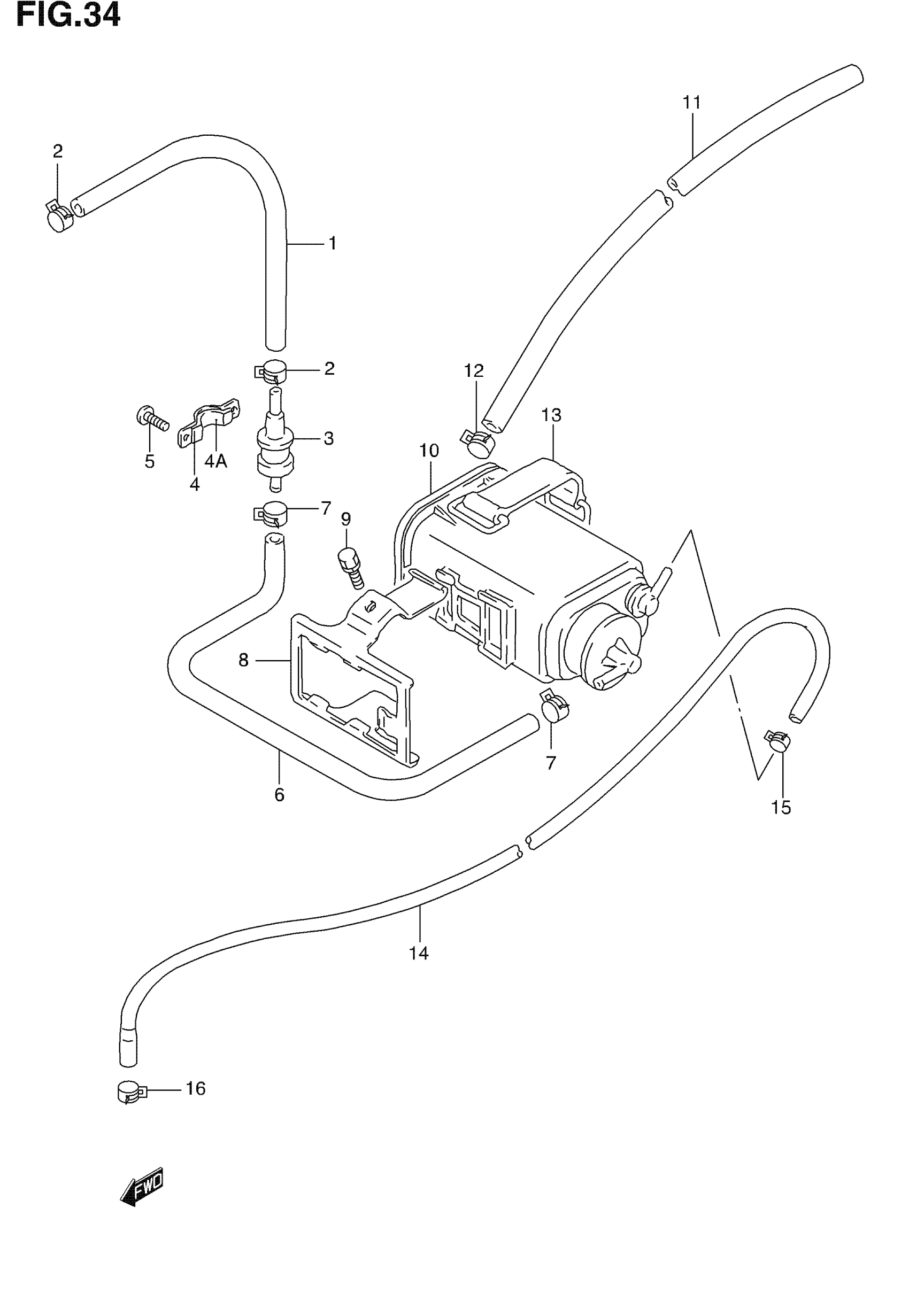

Find the part on the Canister diagram for your 2006 Suzuki GS500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2006 Suzuki GS500F Canister Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOSE, TANK TO BREATHER VALVE | L:600 --> 400

09355-54116-600

1
Out of stock

2

CLIP

09401-11413

2
Out of stock

3

VALVE, BREATHER

44240-38A00

1
Out of stock

4

PLATE,FUEL TANK BREATHER NO.2 | Includes Item(s) 4A

44892-24A00

1
Out of stock

4A

CUSHION (10X30X2)

44894-24A00

1
Out of stock

5

SCREW This part replaces 02142-04103.

02142-0410A

2
Out of stock

6

HOSE, VALVE TO CANISTER

09343-05503

1
Out of stock

7

CLIP

09401-11413

2
Out of stock

8

PLATE, CANISTER FITTING

44880-01D00

1
Out of stock

9

BOLT This part replaces 01570-06103.

01570-0610A

2
Out of stock

10

CANISTER

17210-01D00

1
Out of stock

11

HOSE,6.5X11.5X6 | L:600 --> 300 This part replaces 09355-70125-600.

44421-12FR0

1
Out of stock

12

CLIP This part replaces 09401-11407.

09401-11415

1
Out of stock

13

BAND, TOOL This part replaces 09462-00073.

09462-00093

1
Out of stock

14

HOSE, CANISTER TO CARBURETOR | L:600 --> 400

09359-35751-600

1
Out of stock

15

CLIP, CANISTER

09401-06405

1
Out of stock

16

CLIP, CARBURETOR

09401-08411

1
Out of stock
