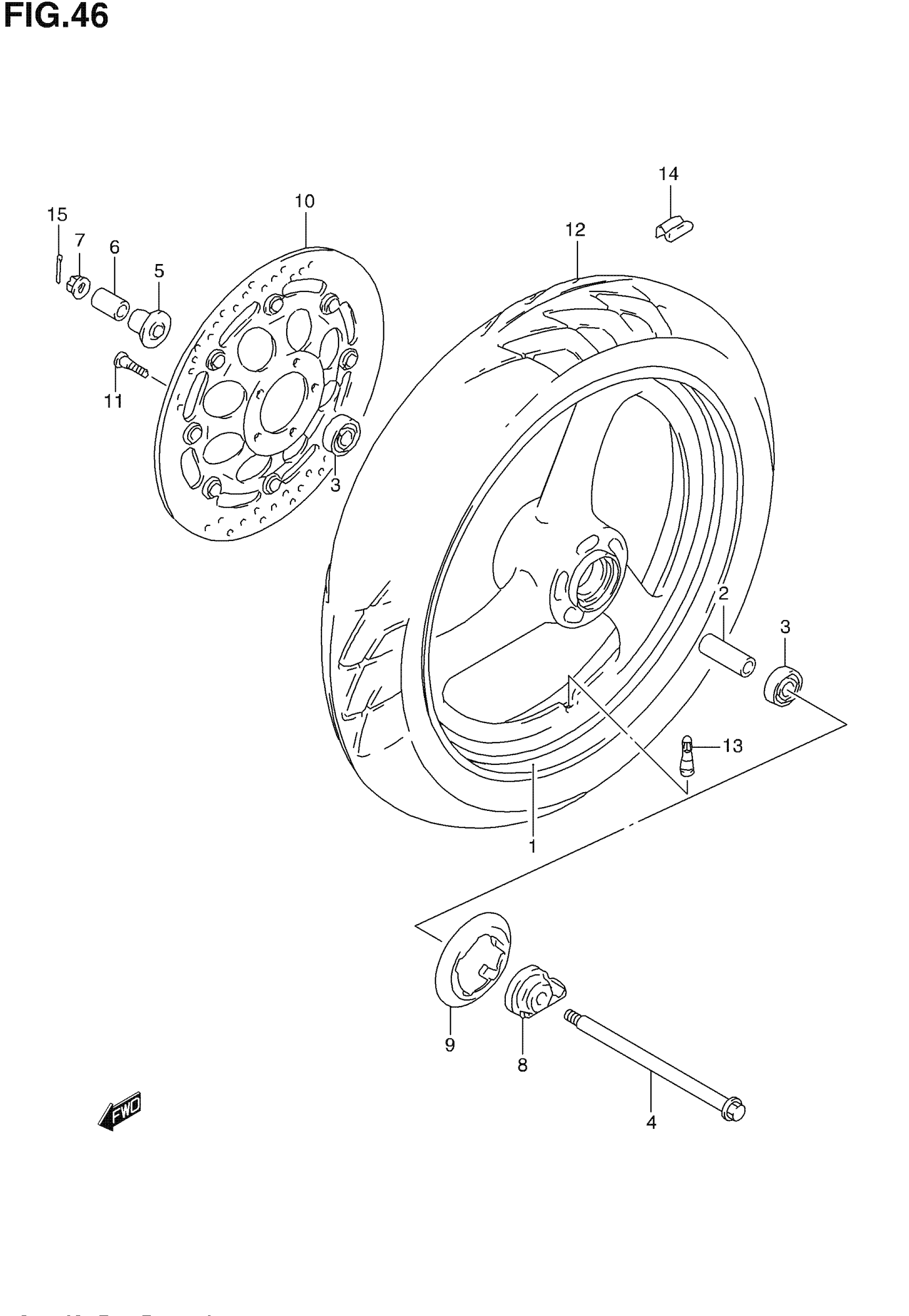

Suzuki GS500F (2006) FRONT WHEEL Diagram

#

Description
Price

1

WHEEL, FRONT (MT3.00X17) (BLAC

54111-34C01-291

Unavailable

2

SPACER (15.3X21.7X63)

09180-15011

$8.18

3

BEARING This part replaces 08123-63027.

08123-6302B

$22.74

4

AXLE, FRONT

54711-01D00

$56.05

5

SPACER, BEARING RH This part replaces 54740C33400J000.

54740-33410

$19.15

6

SPACER, FRONT AXLE RH This part replaces 54741C01D00J000.

54741-01D00

$15.42

7

NUT

09159-12027

$15.67

8

BOX ASSY, SPEEDOMETER GEAR

54600-01D01

Unavailable

9

COVER, FRONT HUB LH (BLACK) This part replaces 54871C38C00JNE2.

54871C38C00J291

Unavailable

10

DISC, FRONT BRAKE RH | MODEL K4/K5/K6

59210-01DA0

Unavailable

11

BOLT (8X33) This part replaces 09106-08125.

09106-08148

$4.80

12

TIRE, FRONT,110/70-17 54H (BRI

55110-01D10

Unavailable

13

VALVE ASSY, WHEEL RIM (TR412)

43130-07E00

Unavailable

14

BALANCER, WHEEL (10G) | MODEL K3/K4

55411-00A00

$1.49

14

BALANCER, WHEEL NO.2 | MODEL K3/K4 This part replaces 55412-00A01.

55412-17G00

$7.05

14

BALANCER, WHEEL NO.1 | MODEL K5/K6 This part replaces 55111-17G00.

55411-17G00

$7.63

14

BALANCER, WHEEL NO.2 | MODEL K5/K6 This part replaces 55112-17G00.

55412-17G00

$7.05

14

BALANCER, WHEEL NO.3 | MODEL K5/K6 This part replaces 55113-17G00.

55413-17G00

Unavailable

15

PIN This part replaces 04111-30258.

04111-3030A

$1.49
