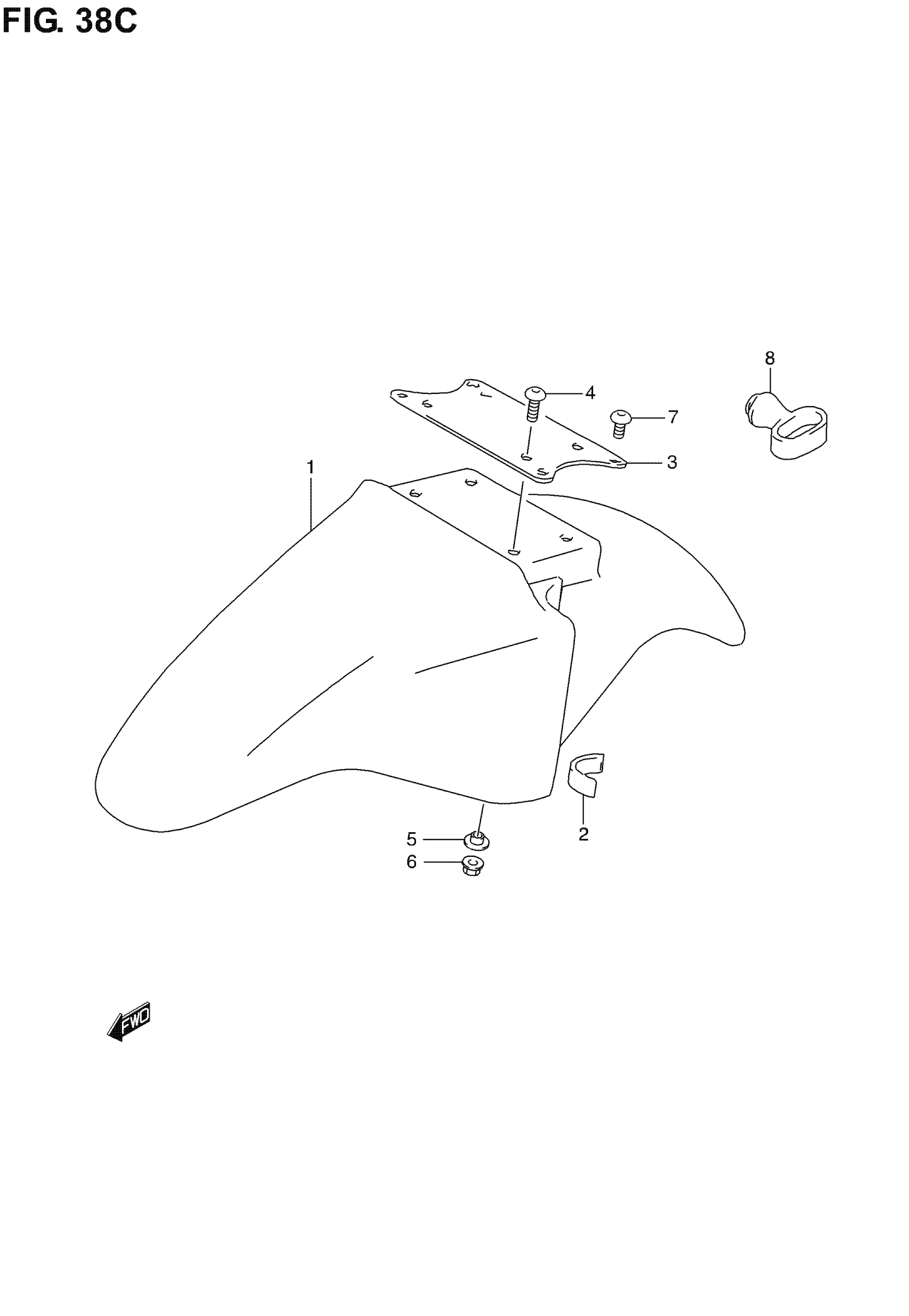

Suzuki GS500F (2006) FRONT FENDER (MODEL K6) Diagram

#

Description

Price

1

FENDER,FRONT(BL | GS500F This part replaces 53111-01D50-Y7L.

53111-01D40-NE2

Unavailable

2

CUSHION This part replaces 53145C32B00J000.

53145-30B00

$3.62

3

BRACE, FRONT FENDER (BLACK)

53114C01D10JENM

Unavailable

4

SCREW

09139-05032

$1.89

5

WASHER

09169-05010

$2.38

6

NUT

09159-05043

$2.22

7

SCREW

09139-06027

$2.16

8

GUIDE, METER CABLE | NOT FOR U.S. MARKET This part replaces 58621-21203.

58621-21204

$6.68
