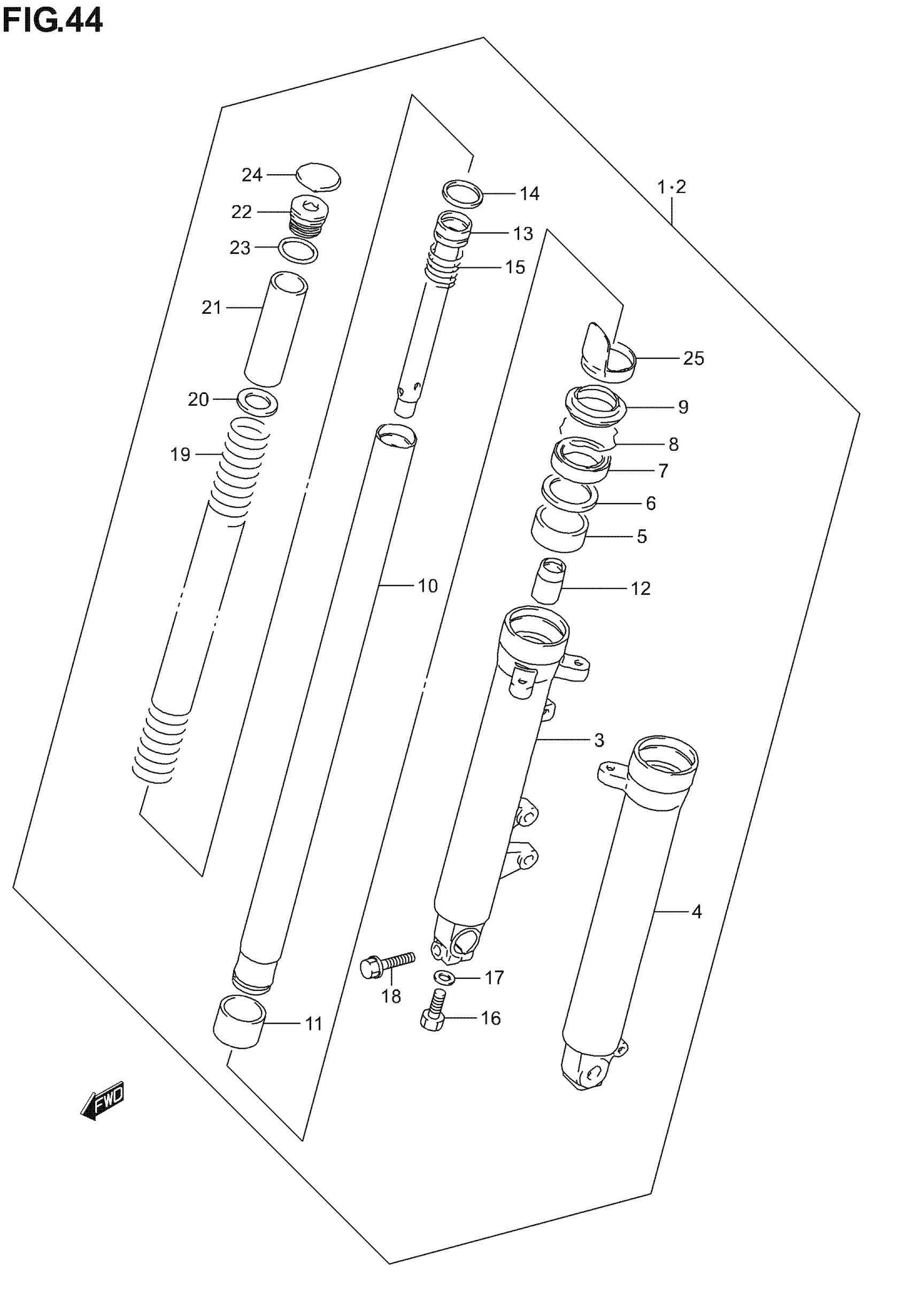

Suzuki GS500F (2006) FRONT DAMPER (NOT FOR U.S. MARKET) Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-01DB0

Unavailable

2

DAMPER ASSY, FRONT FORK LH | Includes Item(s) 3 - 25

51104-01DB0

Unavailable

3

TUBE, OUTER RH

51130-01DA0

Unavailable

4

TUBE, OUTER LH

51140-01DA0

Unavailable

5

METAL, SLIDE

51167-01D00

$12.63

6

WASHER

51158-49500

$4.45

7

SEAL, OIL

51153-26F00

$25.27

8

RING, SNAP

51156-40301

$5.05

9

SEAL, DUST

51173-26F00

$25.75

10

TUBE, INNER

51110-01D60

Unavailable

11

PISTON

51121-01D00

$18.90

12

PIECE, OIL LOCK

51195-01D00

$20.45

13

CYLINDER

51146-01D00

$117.48

14

RING, PISTON

51196-13A10

$8.42

15

SPRING, REBOUND

51177-01D00

$10.07

16

BOLT

51147-16510

$4.34

17

GASKET

51148-41310

$2.26

18

BOLT, RH

01550-08407

$3.42

19

SPRING, MAIN

51171-01D60

Unavailable

20

WASHER, SPRING

51172-01D00

Unavailable

21

SPACER

51176-01DB0

Unavailable

22

WASHER, UPPER

51192-01D60

Unavailable

23

CAP

51351-24D00

Unavailable

24

O RING

51117-38260

$3.78

25

PROTECTOR

51201-01DA0

$24.33
