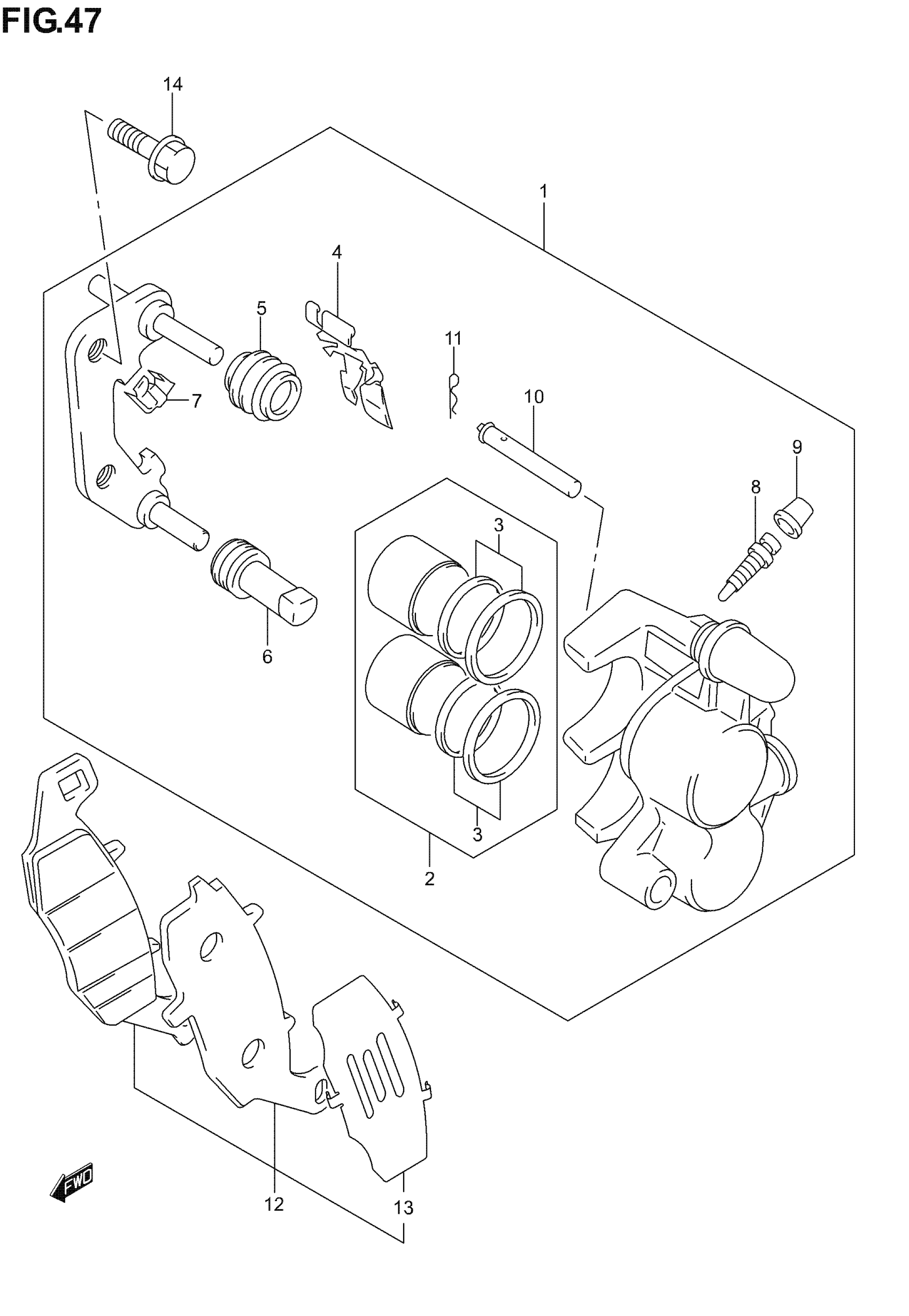

Suzuki GS500F (2006) FRONT CALIPER (NOT FOR U.S. MARKET) Diagram

#

Description

Price

1

CALIPER ASSY, FRONT RH | Includes Item(s) 2 - 11 This part replaces 59100-33D90-999.

59100-33D81-999

$583.83

2

PISTON SET This part replaces 59300-33831.

59301-20820

$37.59

3

SEAL SET, PISTON

59300-33841

$15.45

4

.SPRING, PAD RH

59115-33D00

$14.90

5

BOOT

59112-44B00

$8.91

6

.INSULATOR, AXLE

59313-36500

$5.99

7

.GUIDE, PAD

59116-33D00

$7.97

8

BLEEDER

59121-18410

$8.73

9

CAP

55156-66310

$5.17

10

.PIN, PAD

59141-44B01

$9.09

11

.CLIP, PAD PIN

69142-45000

$4.34

12

PAD & SHIM SET | Includes Item(s) 13

59102-33890

$78.42

13

.SHIM, PAD

59171-33D00

$14.85

14

BOLT (10X20) This part replaces 01550-10253.

01550-1025A

$3.05
