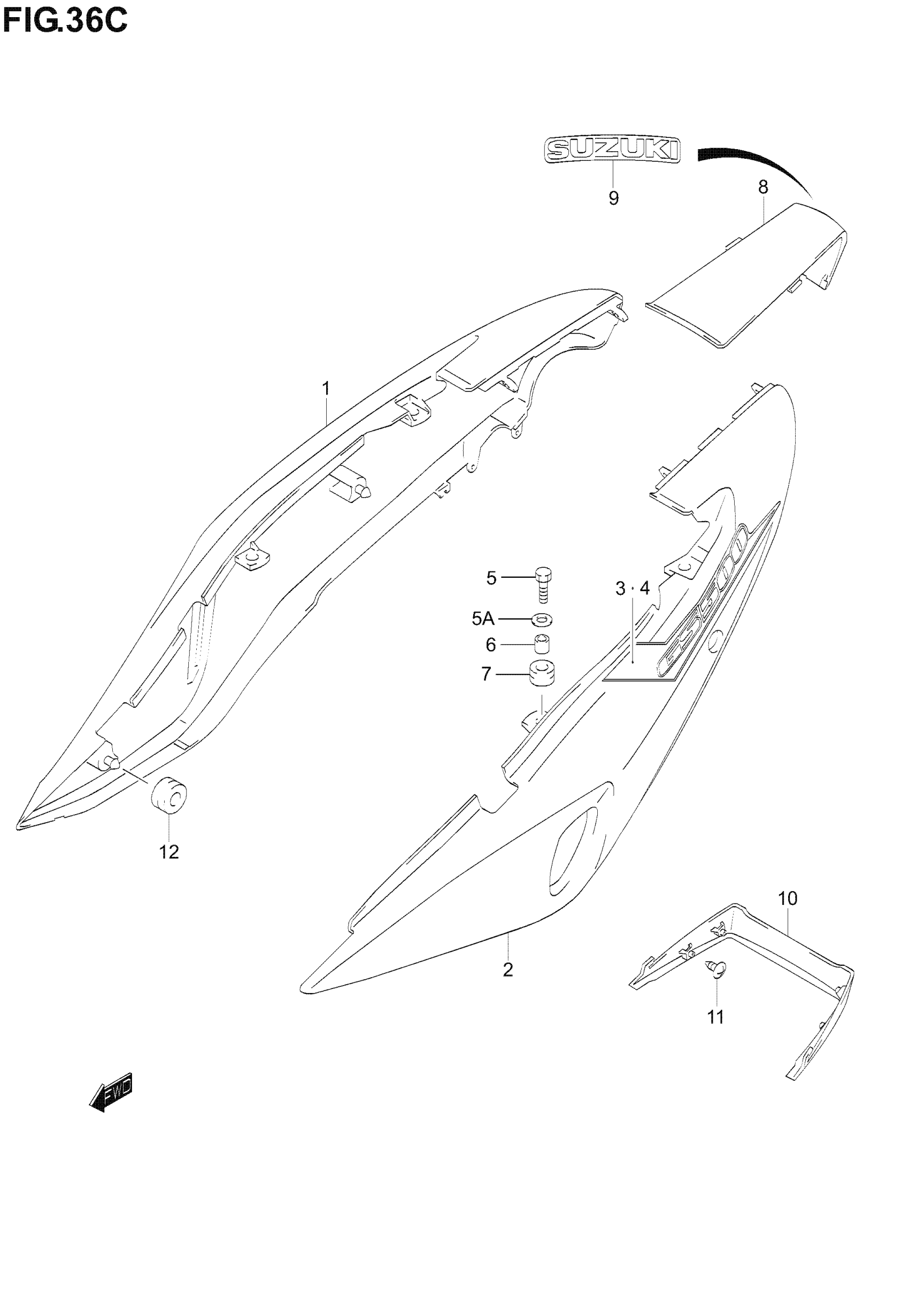

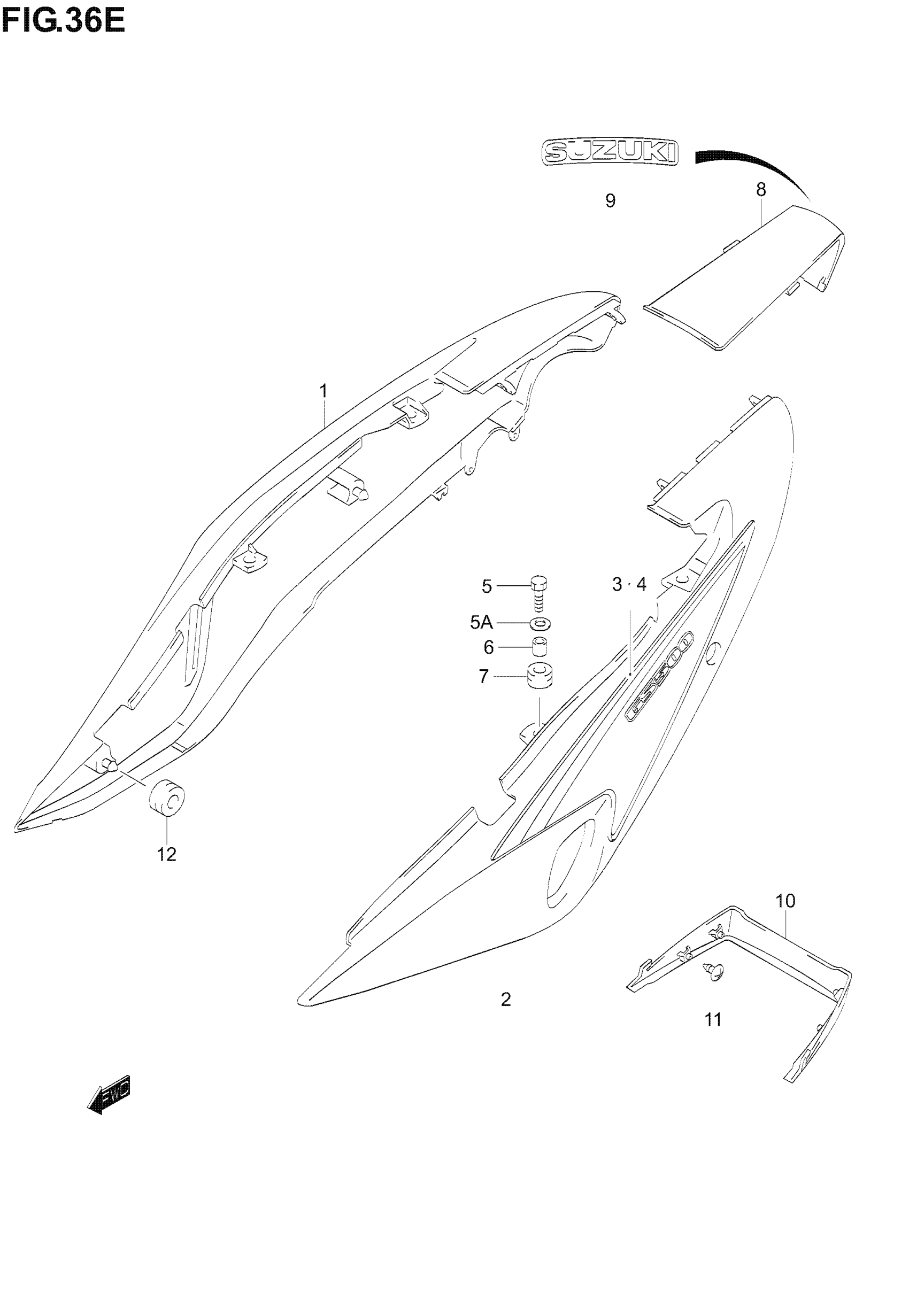

Suzuki GS500F (2006) FRAME COVER (NOT FOR U.S. MARKET) Diagram

#

Description
Price

1

COVER, FRAME RH (BLUE)

47111-01DA0-YC2

Unavailable

1

COVER,FRAME RH This part replaces 47111-01DA0-Y7L.

47111-01DA0-NE2

$32.02

1

COVER,FRAME RH This part replaces 47111-01DA0-Y9H.

47111-01DA0-NE2

$32.02

2

COVER, FRAME LH (BLUE)

47211-0BE00-YC2

Unavailable

2

COVER,FRAME This part replaces 47211-0BE00-Y7L.

47211-0BE00-NE2

Unavailable

2

COVER,FRAME This part replaces 47211-0BE00-Y9H.

47211-0BE00-NE2

Unavailable

3

TAPE, RH | FOR YC2

68135-01DE0-BVR

Unavailable

3

TAPE, RH | FOR Y7L

68135-01DE0-BVS

Unavailable

3

TAPE, RH | FOR Y9H

68135-01DE0-BVT

Unavailable

4

TAPE, LH | FOR YC2

68145-01DE0-BVR

Unavailable

4

TAPE, LH | FOR Y7L

68145-01DE0-BVS

Unavailable

4

TAPE, LH | FOR Y9H

68145-01DE0-BVT

Unavailable

5

BOLT This part replaces D1507-06205.

D1507-0620A

Unavailable

5A

WASHER This part replaces D8322-91065.

D8322-9106B

Unavailable

6

SPACER

09180-06263

$1.68

7

CUSHION

09320-09016

$2.01

8

COVER, CENTER (BLUE)

47311-01DA0-YC2

Unavailable

8

COVER,FRAME CEN This part replaces 47311-01DA0-Y7L.

47311-01DA0-NE2

$12.47

8

COVER, CENTER (YELLOW)

47311-01DA0-Y9H

Unavailable

9

EMBLEM (SILVER) | FOR YC2, Y7L

68165-01DA0-YD8

Unavailable

9

EMBLEM (BLACK) | FOR Y9H

68165-01DA0-019

Unavailable

10

COVER, LOWER

47321-01DA0-NE2

Unavailable

11

SCREW This part replaces 03541-04103.

03541-0410A

$1.83

12

CUSHION

09320-08018

$2.82
