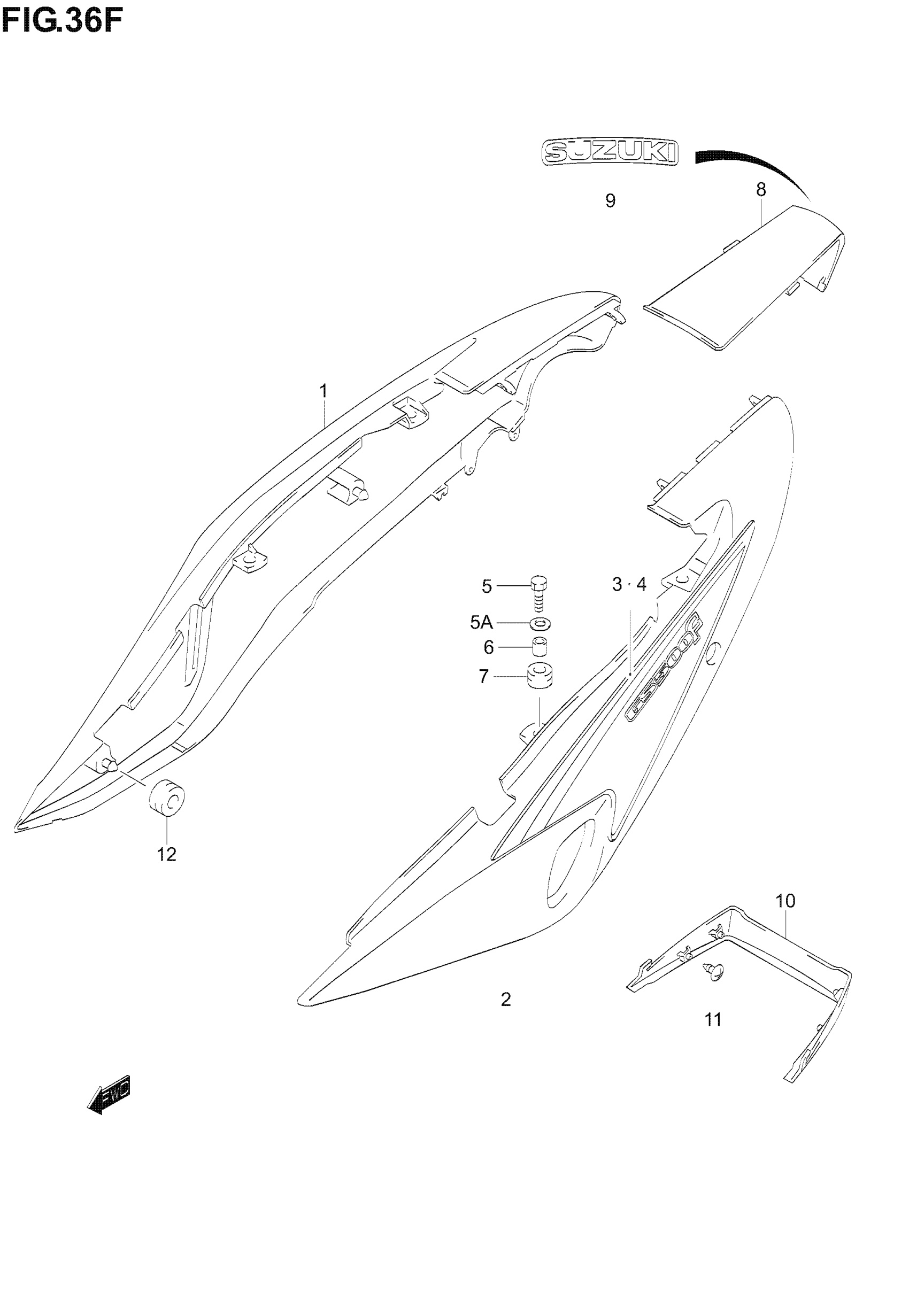

Suzuki GS500F (2006) FRAME COVER (GS500FK6) Diagram

#

Description
Price

1

COVER,FRAME RH | FOR FP2, NY2 This part replaces 47111-01DA0-YD8.

47111-01DA0-NE2

$28.37

1

COVER, FRAME RH (WHITE) | FOR LR5

47111-01DA0-YBD

Unavailable

2

COVER, FRAME LH (SILVER) | FOR FP2, NY2

47211-0BE00-YD8

Unavailable

2

COVER, FRAME LH (WHITE) | FOR LR5

47211-0BE00-YBD

$78.62

3

EMBLEM SET | FOR FP2 This part replaces 68135-01DF0-CYS.

68130-0BE20-FP2

Unavailable

3

EMBLEM ASSY | FOR LR5 This part replaces 68135-01DF0-CYT.

68130-0BE20-LR5

Unavailable

4

EMBLEM SET | FOR FP2 This part replaces 68145-01DF0-CYS.

68130-0BE20-FP2

Unavailable

4

EMBLEM ASSY | FOR LR5 This part replaces 68145-01DF0-CYT.

68130-0BE20-LR5

Unavailable

5

BOLT This part replaces D1507-06205.

D1507-0620A

Unavailable

5A

WASHER This part replaces D8322-91065.

D8322-9106B

Unavailable

6

SPACER

09180-06263

$2.03

7

CUSHION

09320-09016

$1.97

8

COVER,FRAME CEN | FOR FP2, NY2 This part replaces 47311-01DA0-YD8.

47311-01DA0-NE2

$11.05

8

COVER,FRAME CEN | FOR LR5 This part replaces 47311-01DA0-YBD.

47311-01DA0-NE2

$11.05

9

EMBLEM (BLACK)

68165-01DA0-019

Unavailable

10

COVER, LOWER

47321-01DA0-NE2

$113.15

11

SCREW This part replaces 03541-04103.

03541-0410A

$1.68

12

CUSHION

09320-08018

$3.04
