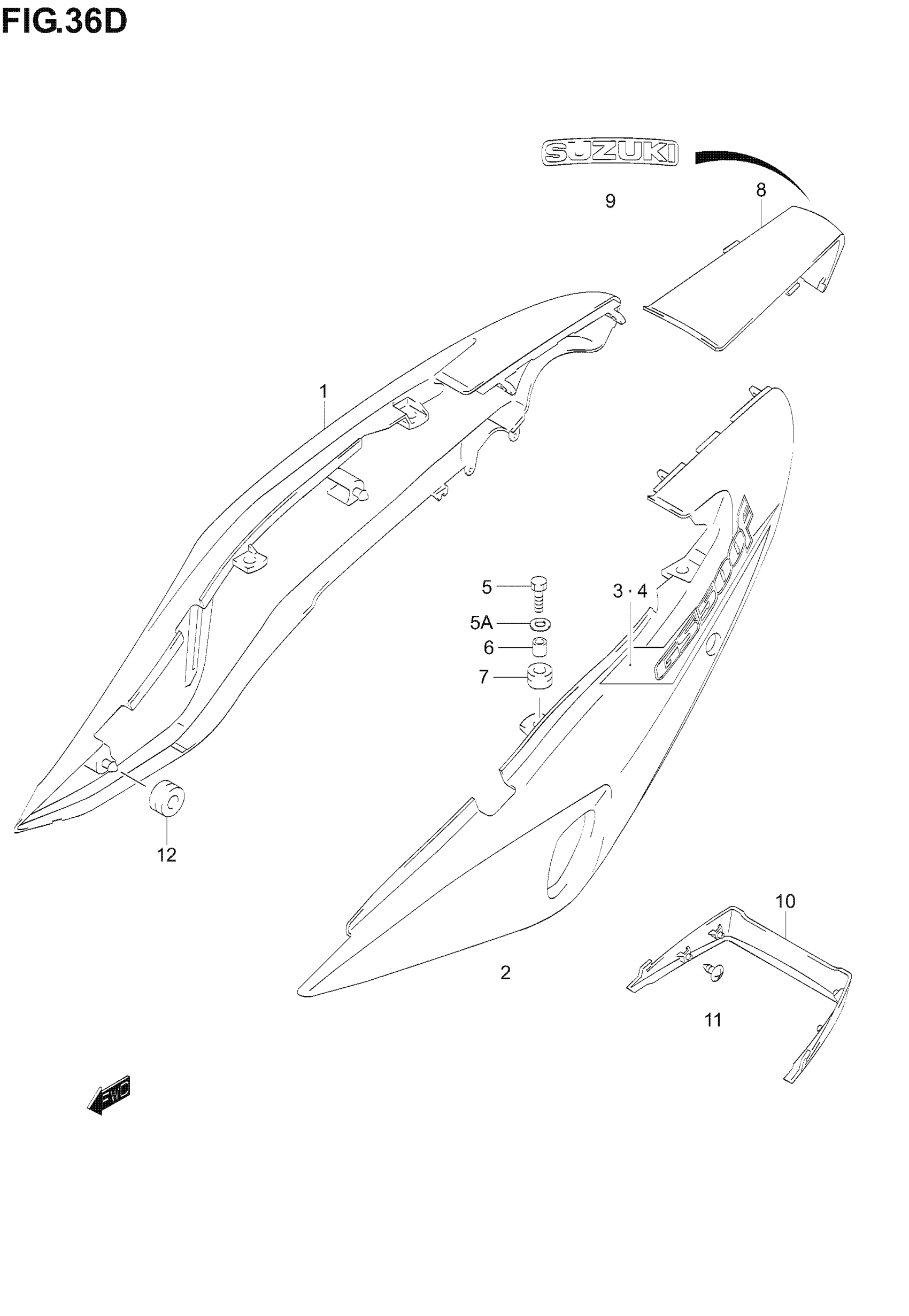

Suzuki GS500F (2006) FRAME COVER (GS500FK5) Diagram

#

Description
Price

1

COVER, FRAME RH (BLUE) | FOR HU9

47111-01DA0-YC2

Unavailable

1

COVER,FRAME RH | FOR FP2 This part replaces 47111-01DA0-Y7L.

47111-01DA0-NE2

$28.37

1

COVER,FRAME RH | FOR BP9 This part replaces 47111-01DA0-Y9H.

47111-01DA0-NE2

$28.37

2

COVER, FRAME LH (BLUE) | FOR HU9

47211-0BE00-YC2

Unavailable

2

COVER,FRAME | FOR FP2 This part replaces 47211-0BE00-Y7L.

47211-0BE00-NE2

Unavailable

2

COVER,FRAME | FOR BP9 This part replaces 47211-0BE00-Y9H.

47211-0BE00-NE2

Unavailable

3

TAPE, RH | FOR HU9

68135-01DD0-BVM

Unavailable

3

TAPE, RH | FOR FP2

68135-01DD0-BVN

Unavailable

3

TAPE, RH | FOR BP9

68135-01DD0-BVP

Unavailable

4

TAPE, LH | FOR HU9

68145-01DD0-BVM

Unavailable

4

TAPE, LH | FOR FP2

68145-01DD0-BVN

Unavailable

4

TAPE, LH | FOR BP9

68145-01DD0-BVP

Unavailable

5

BOLT This part replaces D1507-06205.

D1507-0620A

Unavailable

5A

WASHER This part replaces D8322-91065.

D8322-9106B

Unavailable

6

SPACER

09180-06263

$2.03

7

CUSHION

09320-09016

$1.97

8

COVER, CENTER (BLUE) | FOR HU9

47311-01DA0-YC2

Unavailable

8

COVER,FRAME CEN | FOR FP2 This part replaces 47311-01DA0-Y7L.

47311-01DA0-NE2

$11.05

8

COVER, CENTER (YELLOW) | FOR BP9

47311-01DA0-Y9H

Unavailable

9

EMBLEM (SILVER) | FOR HU9, FP2

68165-01DA0-YD8

Unavailable

9

EMBLEM (BLACK) | FOR BP9

68165-01DA0-019

Unavailable

10

COVER, LOWER

47321-01DA0-NE2

$113.15

11

SCREW This part replaces 03541-04103.

03541-0410A

$1.68

12

CUSHION

09320-08018

$3.04
