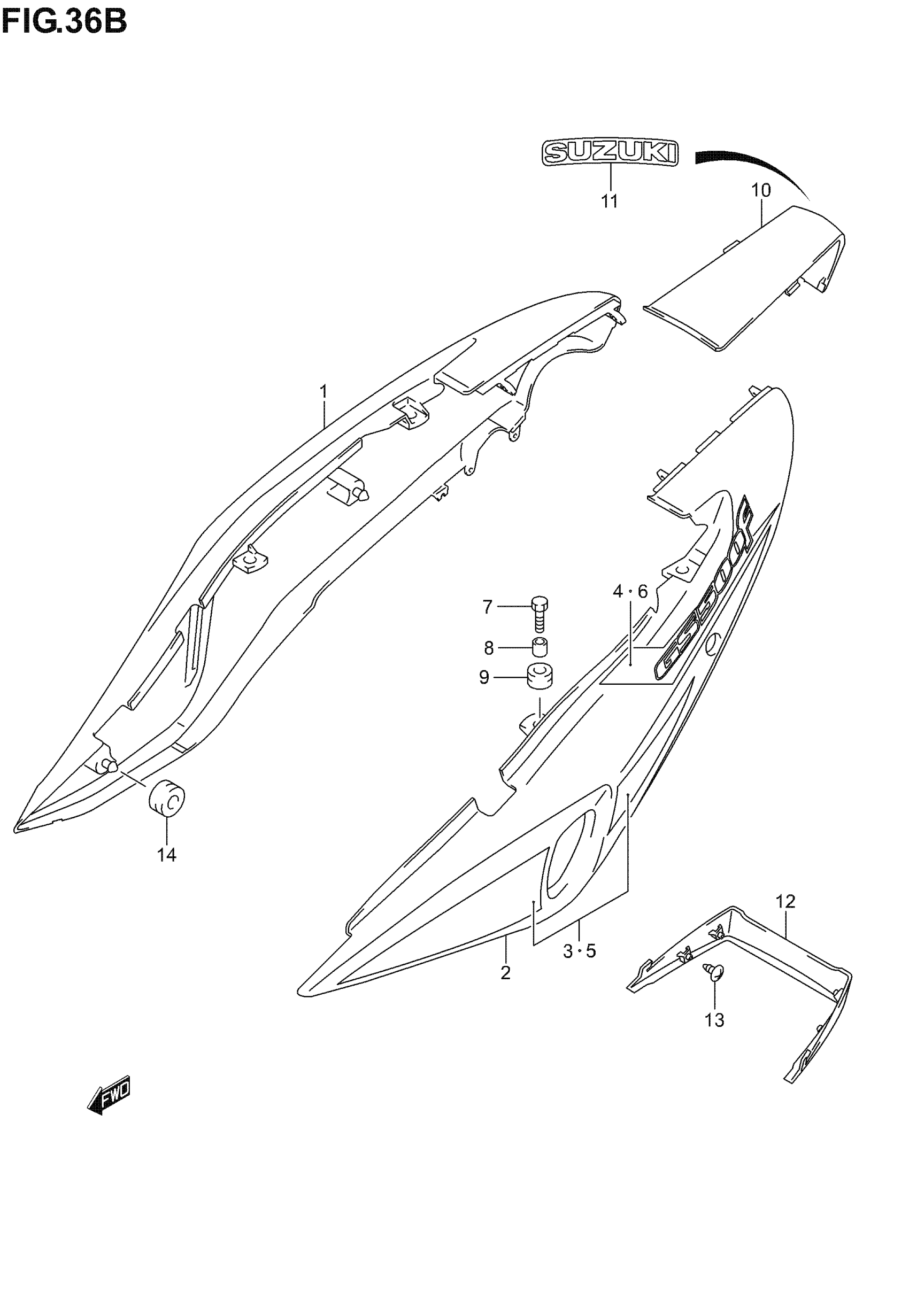

Suzuki GS500F (2006) FRAME COVER (GS500FK4) Diagram

#

Description
Price

1

COVER,FRAME RH This part replaces 47111-01DA0-Y7L.

47111-01DA0-NE2

$28.37

1

COVER, FRAME RH (WHITE) This part replaces 47111-01DA0-0JW.

47111-01DA0-YBD

Unavailable

1

COVER,FRAME RH This part replaces 47111-01DA0-Y9H.

47111-01DA0-NE2

$28.37

2

COVER,FRAME This part replaces 47211-0BE00-Y7L.

47211-0BE00-NE2

Unavailable

2

COVER,FRAME This part replaces 47211-0BE00-0JW.

47211-0BE00-NE2

Unavailable

2

COVER,FRAME This part replaces 47211-0BE00-Y9H.

47211-0BE00-NE2

Unavailable

3

TAPE SET, FRONT RH (BLUE) | FOR 0JW

68130-01DB0-HU9

Unavailable

3

TAPE SET, FRONT RH (BLACK) | FOR Y7L

68130-01DB0-AMF

Unavailable

3

TAPE SET, FRONT RH (YELLOW) | FOR Y9H

68130-01DB0-BP9

Unavailable

4

TAPE, REAR FRAME COVER, RH | FOR 0JW

68135-01DB0-YFU

Unavailable

4

TAPE, REAR FRAME COVER, RH | FOR Y7L

68135-01DB0-YFV

Unavailable

4

TAPE, REAR FRAME COVER, RH | FOR Y9H

68135-01DB0-YFW

Unavailable

5

TAPE SET, FRONT LH (BLUE) | FOR 0JW

68140-01DB0-HU9

Unavailable

5

TAPE SET, FRONT LH (BLACK) | FOR Y7L

68140-01DB0-AMF

Unavailable

5

TAPE SET, FRONT LH (YELLOW) | FOR Y9H

68140-01DB0-BP9

Unavailable

6

TAPE, REAR FRAME COVER, LH | FOR 0JW

68145-01DB0-YFU

Unavailable

6

TAPE, REAR FRAME COVER, LH | FOR Y7L

68145-01DB0-YFV

Unavailable

6

TAPE, REAR FRAME COVER, LH | FOR Y9H

68145-01DB0-YFW

Unavailable

7

BOLT

09116-06010

$2.19

8

SPACER

09180-06263

$2.03

9

CUSHION

09320-09016

$1.97

10

COVER,FRAME CEN This part replaces 47311-01DA0-0JW.

47311-01DA0-NE2

$11.05

10

COVER,FRAME CEN This part replaces 47311-01DA0-Y7L.

47311-01DA0-NE2

$11.05

10

COVER, CENTER (YELLOW)

47311-01DA0-Y9H

Unavailable

11

EMBLEM (SILVER) | FOR Y7L, YC2

68165-01DA0-YD8

Unavailable

11

EMBLEM (BLACK) | FOR Y9H

68165-01DA0-019

Unavailable

12

COVER, LOWER

47321-01DA0-NE2

$113.15

13

SCREW This part replaces 03541-04103.

03541-0410A

$1.68

14

CUSHION

09320-08018

$3.04
