2006 Suzuki GS500F Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 2006 Suzuki GS500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

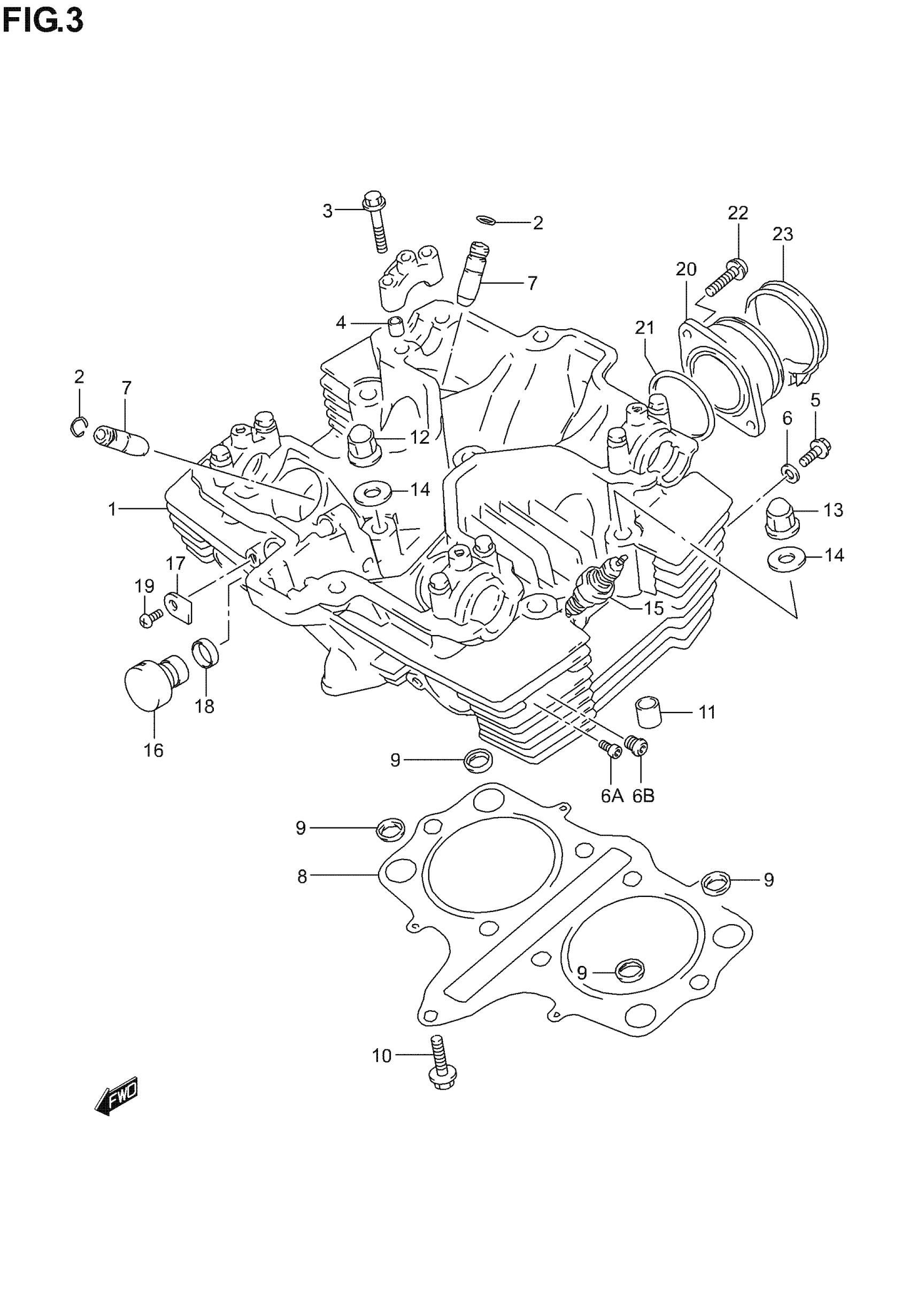

2006 Suzuki GS500F Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD ASSY, CYLINDER | MODEL K4/K5/K6; Includes Item(s) 2 - 6

11100-01D60

1
Out of stock

2

RING, VALVE GUIDE

09381-10003

4
Out of stock

3

BOLT (6X39)

09103-06026

8
Out of stock

4

PIN

09206-08001

8
Out of stock

5

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

2
Out of stock

6

GASKET

09168-06023

2
Out of stock

6A

PLUG, OIL GALLERY | MODEL K4/K5/K6

09106-06075

4
Out of stock

6B

PLUG, OIL GALLERY | MODEL K4/K5/K6; Includes Item(s) 7

09248-10010

4
Out of stock

7

GUIDE, VALVE (OS:0.3) | OPT

11115-45740

4
Out of stock

8

GASKET, CYLINDER HEAD This part replaces 11141-01D10.

11141-01D11

1
Out of stock

9

O RING, CYLINDER HEAD

11143-06B00

4
Out of stock

10

BOLT This part replaces 01550-06303.

01550-0630A

1
Out of stock

11

PIN

04211-11169

2
Out of stock

12

NUT

09159-10069

4
Out of stock

13

NUT

09159-10026

4
Out of stock

14

.GASKET (10.2X20X2.3)

09168-10031

8
Out of stock

15

SPARK PLUG (NGK, DPR8EA-9)

09482-00334

2
Out of stock

15

SPARK PLUG (ND, X24EPR-U9)

09482-00335

2
Out of stock

16

CAP, TACHOMETER GEAR SLEEVE | NOT FOR U.S. MARKET

26442-45000

1
Out of stock

17

PLATE, TACHOMETER DRIVEN GEAR | NOT FOR U.S. MARKET

26449-33000

1
Out of stock

18

SEAL BAND | NOT FOR U.S. MARKET

26451-45000

1
Out of stock

19

SCREW (5X12) | NOT FOR U.S. MARKET

09128-05101

1
Out of stock

20

PIPE, INTAKE | Includes Item(s) 21

13101-01D40

2
Out of stock

21

O-RING (D:2.4,ID:39.7) This part replaces 09280-40010.

09280-40020

2
Out of stock

22

4

$2.50

In stock

23

CLAMP

09402-54208

2
Out of stock
← Cylinder Cylinder Head Cover →
