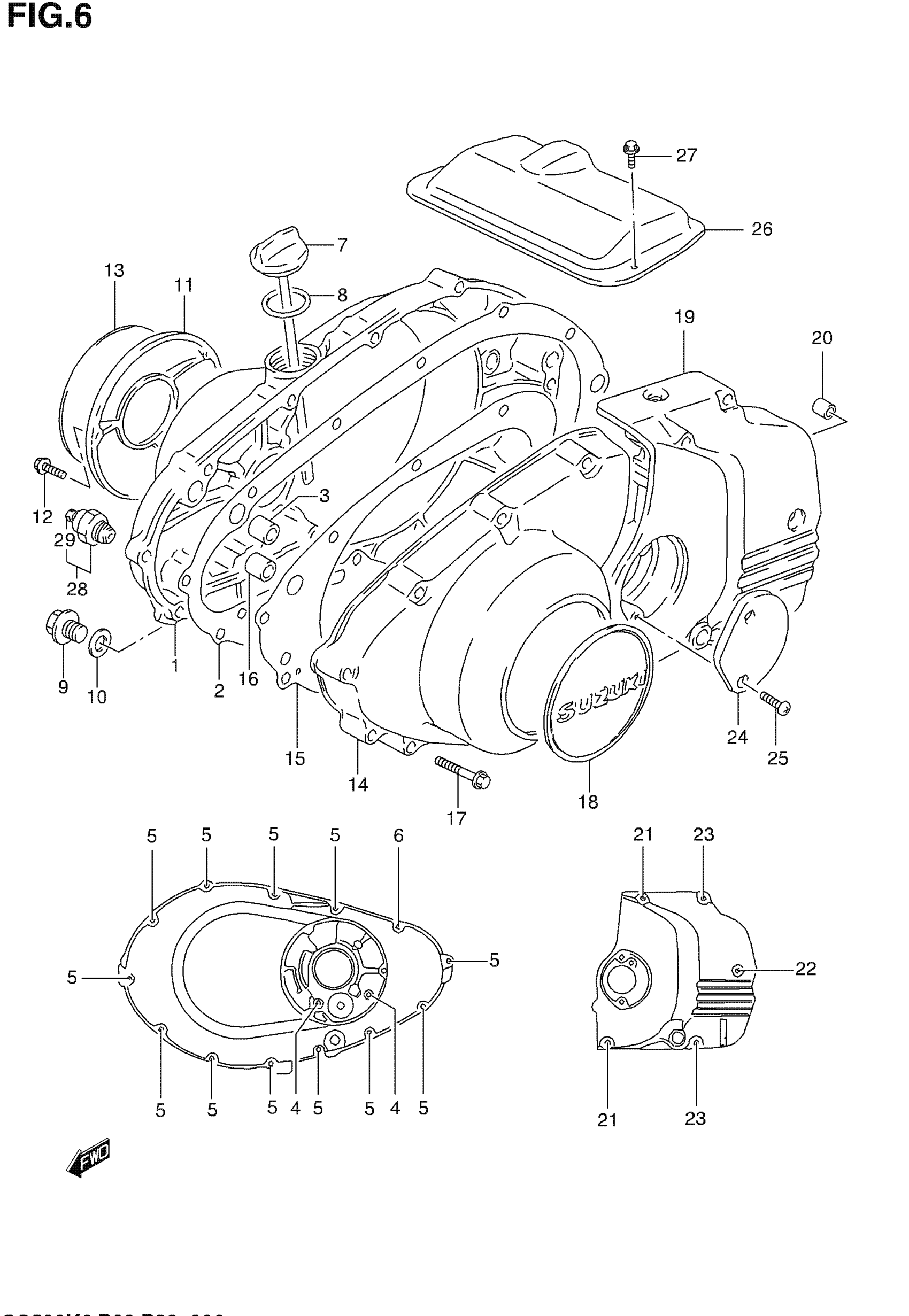

Suzuki GS500F (2006) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11341-01D10

Unavailable

2

GASKET, CLUTCH COVER

11482-44110

$19.74

3

PIN

04211-13189

$2.19

4

BOLT

09103-06216

$2.80

5

BOLT

09103-06214

$2.57

6

BOLT

09103-06212

$2.53

7

GAUGE, OIL LEVEL

11970-44110

Unavailable

8

O RING (D:3.1, ID:26.4)

09280-26006

$2.77

9

PLUG This part replaces 09247-14012.

09247-14026

$3.38

10

GASKET

09168-14002

$2.83

11

COVER, CONTACT BREAKER

11381-01D10

$70.33

12

BOLT

09103-05016

$1.91

13

EMBLEM | MODEL K4/K5/K6

68233-01D10

$17.56

14

COVER, MAGNETO

11351-01D10

$243.92

15

GASKET, GENERATOR COVER

11483-44110

$12.24

16

PIN

04211-13189

$2.19

17

BOLT

09103-06214

$2.57

18

EMBLEM | MODEL K4/K5/K6

68233-01D10

$17.56

19

COVER, ENGINE SPROCKET

11361-01D10

$182.02

20

PIN

04211-09129

$1.64

21

BOLT

09103-06239

$2.65

22

BOLT

09103-06238

$2.65

23

BOLT

09103-06215

$2.80

24

CAP, CLUTCH RELEASE

11387-01D10

$42.37

25

SCREW

02122-05127

$1.68

26

COVER, STARTER MOTOR

11382-01D00

Unavailable

27

BOLT, COVER This part replaces 01547-05083.

01547-0508B

$3.22

28

SWITCH ASSY,OIL PRESSURE | Includes Item(s) 29 This part replaces 37820-33D10.

37820-33D11

$27.58

29

BOLT

37822-33D00

$4.92
