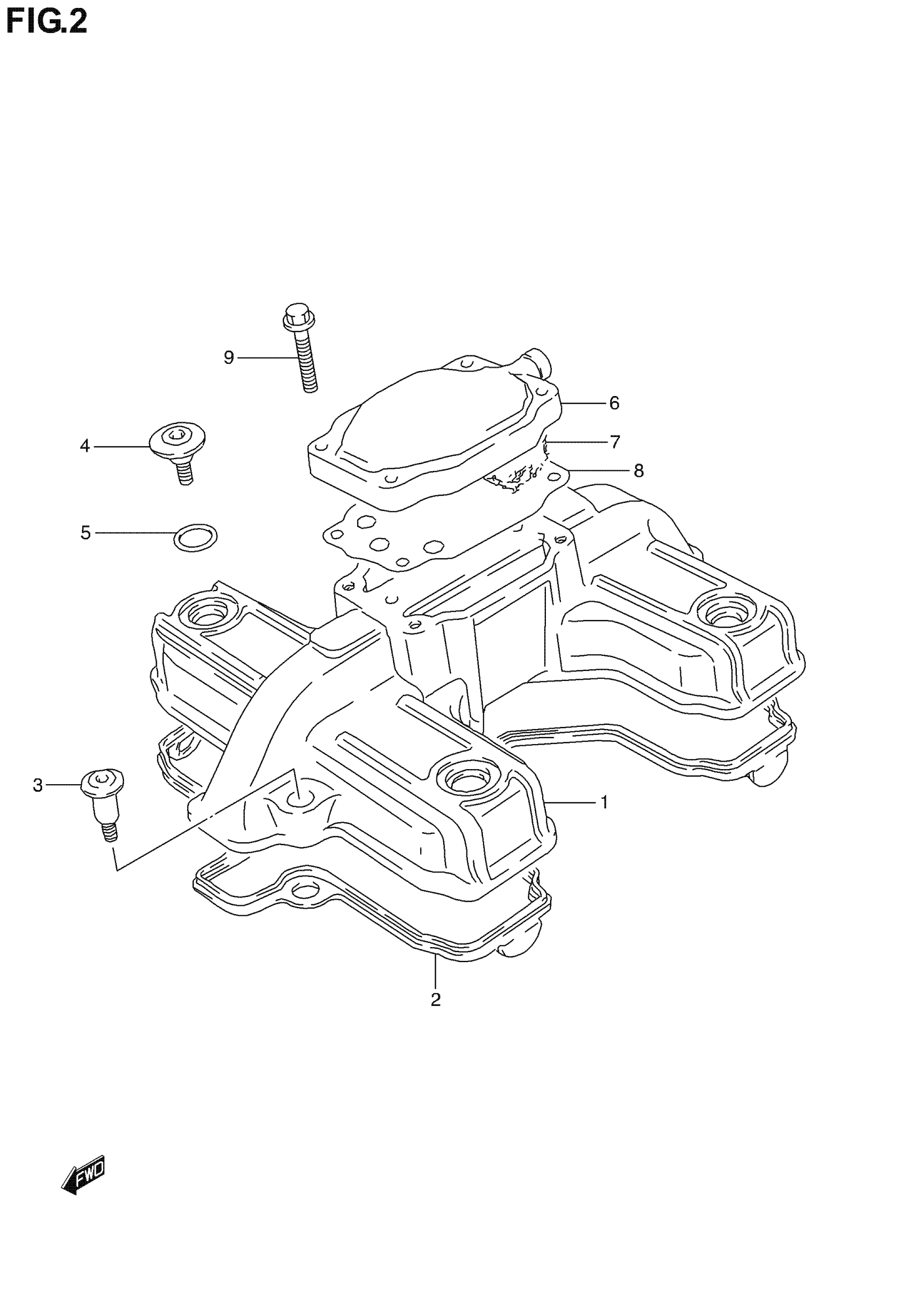

Suzuki GS500F (2006) CYLINDER HEAD COVER Diagram

#

Description

Price

1

COVER, CYLINDER HEAD

11171-01D02

Unavailable

2

GASKET, CYLINDER HEAD COVER This part replaces 11173-15502.

11173-01D00

$34.73

3

BOLT (L:19)

09106-07010

$4.64

4

BOLT (7X17.5) This part replaces 09106-07009.

09106-07021

$4.50

5

O RING (D:1.9, ID:14.5)

09280-15006

$2.90

6

COVER, BREATHER

11176-33201

Unavailable

7

SEPARATOR, OIL BREATHER

11186-15501

$8.45

8

GASKET, BREATHER COVER

11177-15510-H17

$4.07

9

BOLT This part replaces 01550-06253.

01550-0625A

$1.97
