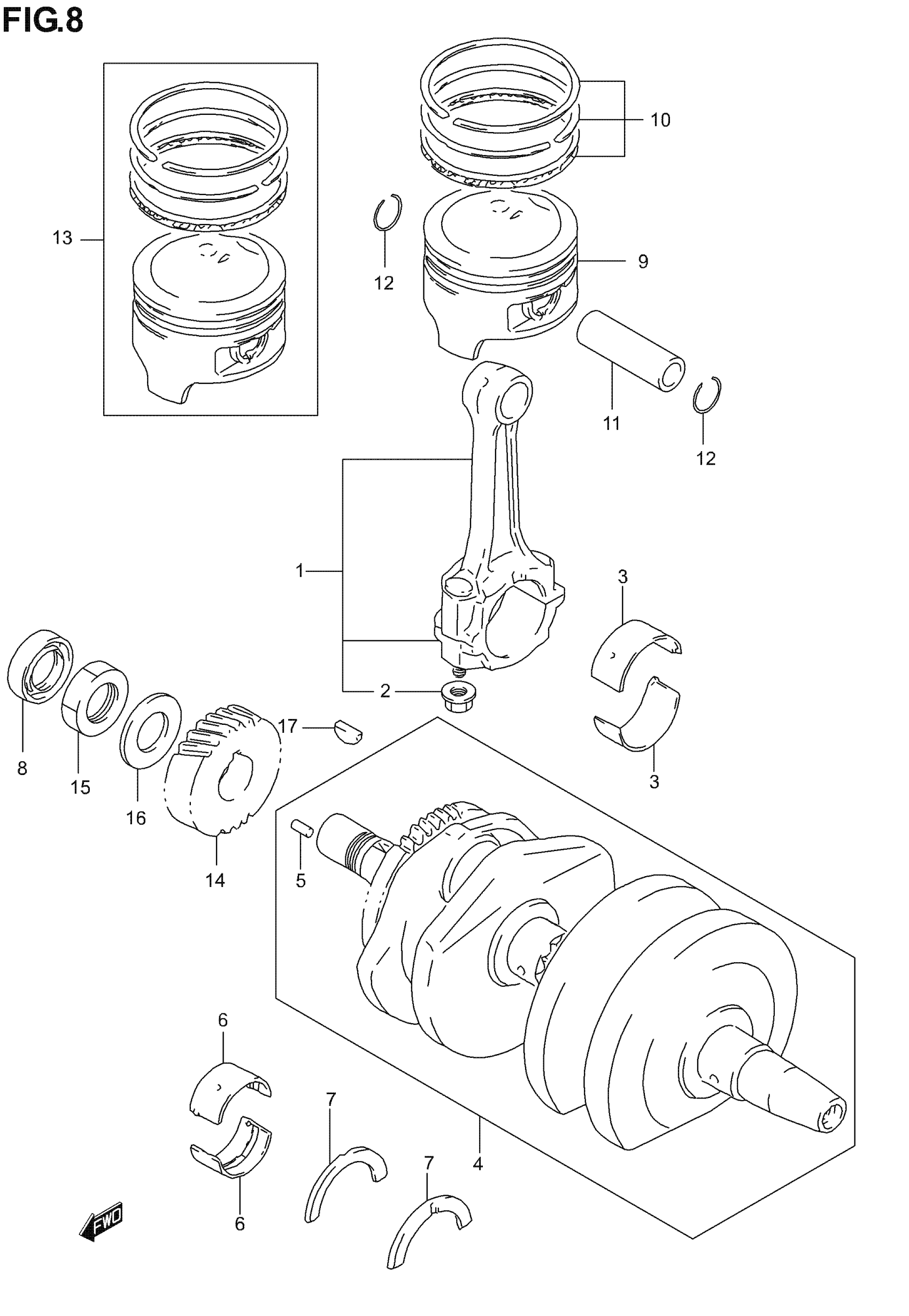

Suzuki GS500F (2006) CRANKSHAFT Diagram

#

Description
Price

1

ROD ASSY, CONNECTING | Includes Item(s) 2 This part replaces 12160-44100.

12160-44101

$163.57

2

NUT

09159-08033

$3.50

3

BEARING, CRANK PIN (GREEN)

12164-01D01-0A0

$17.65

3

BEARING, CRANK PIN (BLACK)

12164-01D01-0B0

$17.65

3

BEARING, CRANK PIN (BROWN)

12164-01D01-0C0

$17.32

3

BEARING, CRANK PIN (YELLOW)

12164-01D01-0D0

$17.65

4

CRANKSHAFT | Includes Item(s) 5

12220-01D02

Unavailable

5

PIN

09202-03016

$1.78

6

BEARING, CRANKSHAFT (GREEN)

12229-01D01-0A0

$10.87

6

BEARING, CRANKSHAFT (BLACK)

12229-01D01-0B0

$10.87

6

BEARING, CRANKSHAFT (BROWN)

12229-01D01-0C0

$12.78

6

BEARING, CRANKSHAFT (YELLOW)

12229-01D01-0D0

$12.78

7

BEARING, THRUST

12228-44106

$10.07

8

OIL SEAL, RH (22X40X8)

09283-22015

$9.72

9

PISTON

12111-01D01-0F0

$105.05

10

RING SET, PISTON

12140-01D20

$46.22

11

PIN, PISTON

12151-45501

$17.37

12

CIRCLIP

09381-18002

$1.67

13

PISTON SET (OS:0.5) | OPT

12100-01D00-050

$173.50

14

GEAR, PRIMARY DRIVE (NT:28)

21111-44100

Unavailable

15

NUT

09140-24007

$3.89

16

WASHER

09164-25001

Unavailable

17

KEY

08341-31059

$2.48
