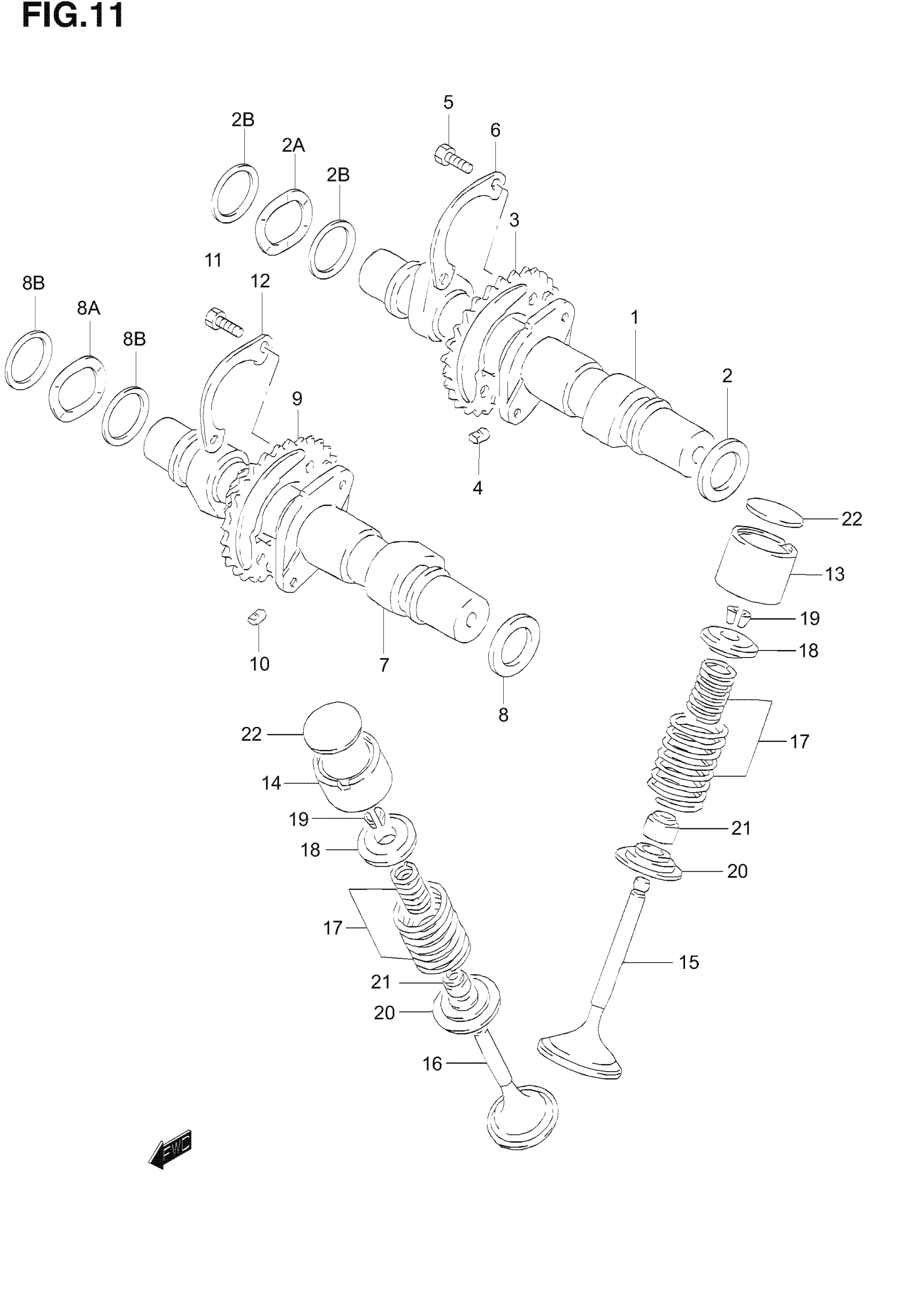

Suzuki GS500F (2006) CAMSHAFT - VALVE Diagram

#

Description
Price

1

CAMSHAFT SET, INTAKE | Includes Item(s) 2 - 2B

12710-01831

Unavailable

2

WASHER (T:1.0)

09181-22167

$2.96

2

WASHER (T:1.1) | OPT

09160-22074

Unavailable

2

WASHER (T:1.2) | OPT

09160-22075

$7.15

2

WASHER (T:1.3) | OPT

09160-22076

Unavailable

2A

WASHER, WAVE

09164-22012

$3.27

2B

WASHER (T: 0.7)

09181-22132

$3.40

3

SPROCKET, INTAKE (NT:30)

12740-45042

Unavailable

4

PIN

12748-44000

Unavailable

5

BOLT (6X12.5)

09111-06027

$1.72

6

WASHER This part replaces 12747-44000.

12747-44001

$2.50

7

CAMSHAFT SET, EXHAUST | MODEL K4/K5/K6; Includes Item(s) 8 - 8B

12720-01841

Unavailable

8

WASHER (T:1.0)

09181-22167

$2.96

8

WASHER (T:1.1) | OPT

09160-22074

Unavailable

8

WASHER (T:1.2) | OPT

09160-22075

$7.15

8

WASHER (T:1.3) | OPT

09160-22076

Unavailable

8A

WASHER, WAVE

09164-22012

$3.27

8B

WASHER (T: 0.7)

09181-22132

$3.40

9

SPROCKET, EXHAUST (NT:30)

12750-45041

Unavailable

10

PIN

12748-44000

Unavailable

11

BOLT (6X12.5)

09111-06027

$1.72

12

WASHER This part replaces 12747-44000.

12747-44001

$2.50

13

TAPPET, INTAKE

12891-15501

$56.05

14

TAPPET, EXHAUST

12891-45001

$56.05

15

VALVE, INTAKE

12911-01D00

$63.08

16

VALVE, EXHAUST

12912-01D00

$82.35

17

SPRING SET, VALVE

12920-44110

$16.87

18

RETAINER, VALVE SPRING This part replaces 12931-45000.

12931-45001

$8.12

19

COTTER, VALVE

12932-45010

$2.37

20

SEAT, SPRING

12933-45001

$6.27

21

OIL SEAL (7X14.4X9)

09289-07002

$7.98

22

SHIM, TAPPET (T:2.15)

12892-45000-215

$21.65

22

SHIM, TAPPET (T:2.20)

12892-45000-220

$21.65

22

SHIM, TAPPET (T:2.25)

12892-45000-225

$21.65

22

SHIM, TAPPET (T:2.30)

12892-45000-230

$21.65

22

SHIM, TAPPET (T:2.35)

12892-45000-235

$21.65

22

SHIM, TAPPET (T:2.40)

12892-45000-240

$21.65

22

SHIM, TAPPET (T:2.45)

12892-45000-245

$20.88

22

SHIM, TAPPET (T:2.50)

12892-45000-250

$20.88

22

SHIM, TAPPET (T:2.55)

12892-45000-255

$20.88

22

SHIM, TAPPET (T:2.60)

12892-45000-260

$17.42

22

SHIM, TAPPET (T:2.65)

12892-45000-265

$17.75

22

SHIM, TAPPET (T:2.70)

12892-45000-270

$17.75

22

SHIM, TAPPET (T:2.75)

12892-45000-275

$21.65

22

SHIM, TAPPET (T:2.80)

12892-45000-280

$17.75

22

SHIM, TAPPET (T:2.85)

12892-45000-285

$21.65

22

SHIM, TAPPET (T:2.90)

12892-45000-290

$21.65

22

SHIM, TAPPET (T:2.95)

12892-45000-295

$21.65

22

SHIM, TAPPET (T:3.00)

12892-45000-300

Unavailable

22

SHIM, TAPPET (T:3.05)

12892-45000-305

$21.65

22

SHIM, TAPPET (T:3.10)

12892-45000-310

$21.65
