Description

Price

1

CHAIN, CAM SHAFT DRIVE (120L)

12760-45040

$149.60

2

GUIDE,CAM CHAIN This part replaces 12771-45052.

12771-45053

$40.00

3

GUIDE, CAM CHAIN NO.2

12782-49200

$44.07

4

SCREW, THROTTLE This part replaces 02112-05103.

02112-0510A

$1.49

5

GUIDE, CAM CHAIN NO.3

12791-45040

$14.20

6

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

7

WASHER

09168-06023

$2.35

8

TENSIONER,CAM C This part replaces 12810-01D00.

12810-01D01

$62.88

9

CUSHION

12814-44101

$6.60

10

ADJUSTER ASSY, TENSIONER | Includes Item(s) 11

12830-01D12

$117.30

11

GASKET

12838-38200-H17

$3.17

12

PLUG

12839-38200

$2.08

13

.GASKET,TENSIONER ADJUSTER

12837-24A10

$3.25

14

BOLT This part replaces 07130-06253.

07130-0625B

$3.04

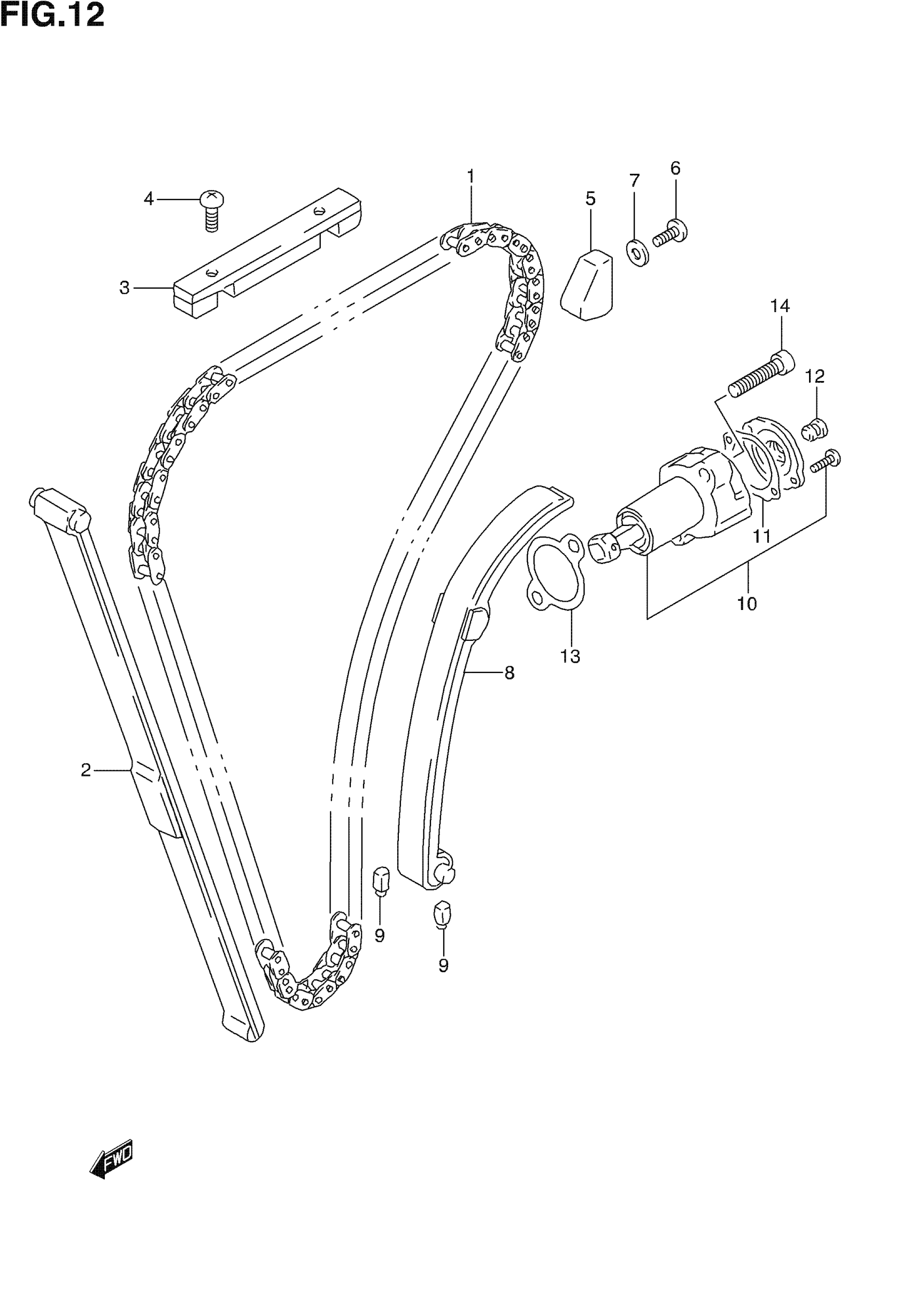

Suzuki GS500F (2006) CAM CHAIN Diagram
