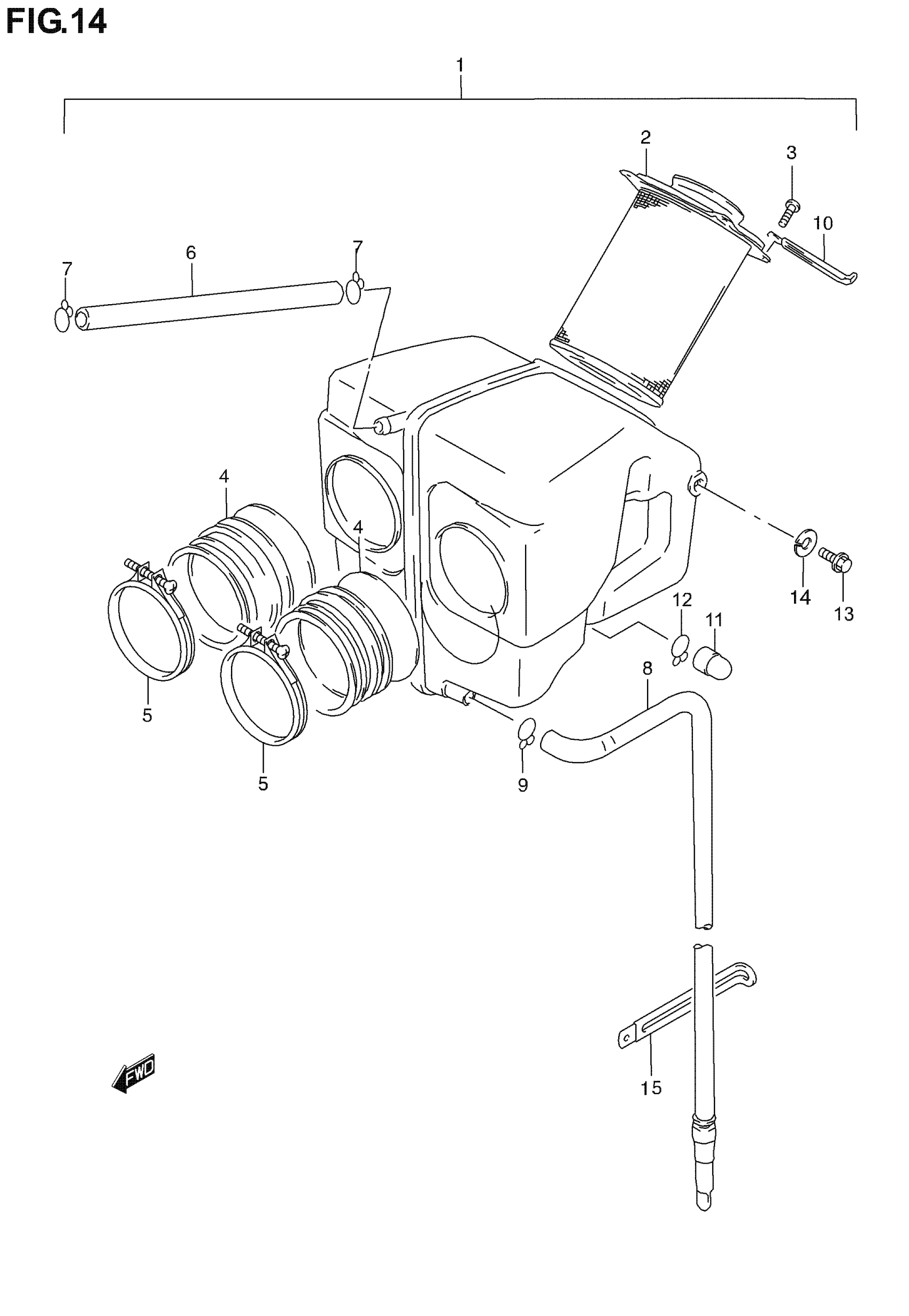

Suzuki GS500F (2006) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR | MODEL K3

13700-01D81

Unavailable

1

CLEANER ASSY, AIR | MODEL K4/K5 E3, E28

13700-01D61

Unavailable

1

CLEANER ASSY, AIR | MODEL K4/K5 E33; Includes Item(s) 2 - 12

13700-01D90

Unavailable

2

FILTER ASSY | MODEL K3

13780-01D10

$48.63

2

FILTER ASSY | MODEL K4/K5/K6

13780-01D00

$39.78

3

SCREW

02142-05087

$1.49

4

TUBE,OUTLET This part replaces 13881-01D60.

13881-01D61

$17.63

5

CLAMP

09402-64203

$6.58

6

HOSE This part replaces 09352-11153-600.

09352-11154-600

$13.05

7

CLIP

09401-14301

$2.35

8

TUBE,DRAIN This part replaces 13870-21458.

13870-21459

$23.68

9

CLIP

09401-13409

$2.12

10

CLAMP This part replaces 09404-06432.

09404-06039

$1.74

11

.PLUG | MODEL K3

13859-41B10

$7.38

12

CLIP | MODEL K3

09401-14301

$2.35

13

BOLT This part replaces D1557-06165.

D1557-0616B

$1.49

14

LOCK WASHER This part replaces D8321-51065.

08321-0106A

$1.84

15

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74
